Production Equipment

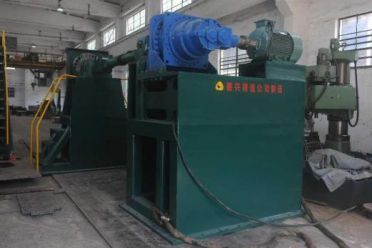

Coil Strip Machine
Heavy-duty coil strip processing machine used in the workshop for forming and handling large metal sections and fabricated components.
产品
为最严苛的矿山而铸，经久耐用。
六大产品系列，一个理念：每一件铸件都为其将面对的具体工况量身设计。
产品系列
Wear-Resistant Cast & Forged Balls
Since launching the Xinqi wear-material plant in 1997, we have shipped over 600,000 tonnes of grinding balls — generating more than ¥3 billion in cumulative revenue.
索取规格书Cast High-Chrome Balls
Cr12 · HRC ≥ 58 · Impact ≥ 3 J/cm² · Compliant with GB/T17445-2009
Φ80 mm max23,000 t/yr capacityUsed at Dexing Copper Mine
Forged Steel Balls
Φ100–Φ140 mm · Four sizes · 8,000 t/yr at Yugan subsidiary
Tibet HuatailongYunnan TinHunan Huangjindong
产品图集
公司产品图集
新上传的产品图集中展示于此，涵盖破碎机衬板、电铲总成、矿山辅助车辆与磨机衬板系统等。
Production Equipment

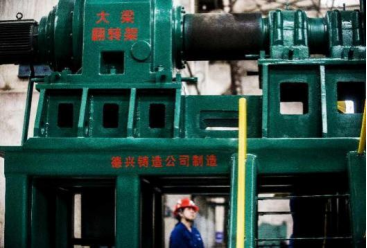

Universal Beam Turnover Machine
Universal beam turnover machine for rotating large welded beams and structural components during fabrication, assembly and inspection.
Production Equipment

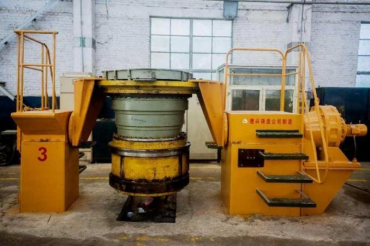

Wheel Motor Turnover Machine
Wheel motor turnover machine for safely rotating and positioning heavy wheel motor assemblies during maintenance and manufacturing operations.
Mining Equipment Parts

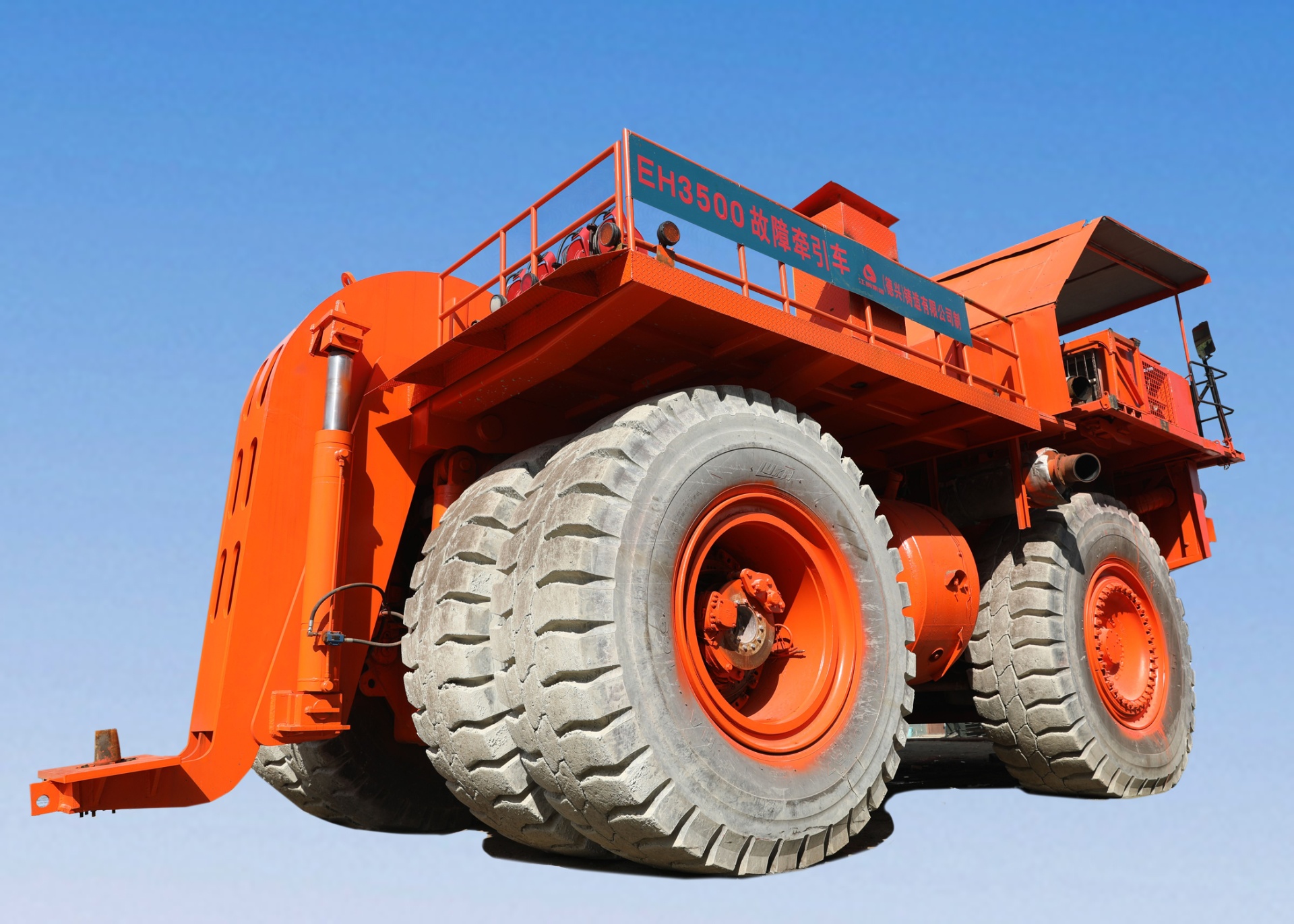

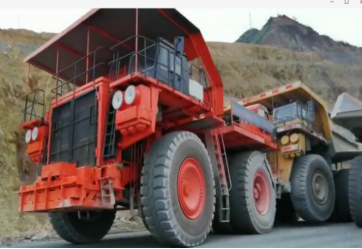

EH3500 Electric-Drive Mine Tractor — On Site
EH3500 electric-drive mine tractor project — heavy-duty open-pit haul tractor shown alongside a conventional rigid dump truck for scale.
Mining Equipment Parts

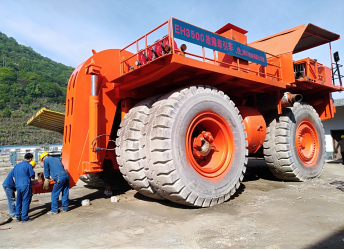

EH3500 Electric-Drive Mine Tractor — Rear View
Rear view of the EH3500 electric-drive mine tractor — massive drive axle and tires engineered for sustained heavy haulage on mine ramps.
Mining Equipment Parts

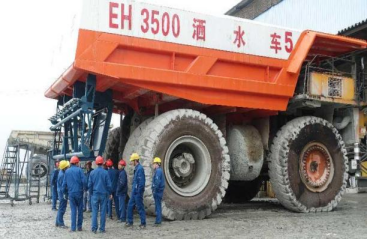

EH3500 Electric-Drive Water Truck
EH3500 electric-drive mining water truck — converted from a 154-ton-class haul truck chassis for large-scale dust suppression in open-pit mines.
Mining Equipment Parts

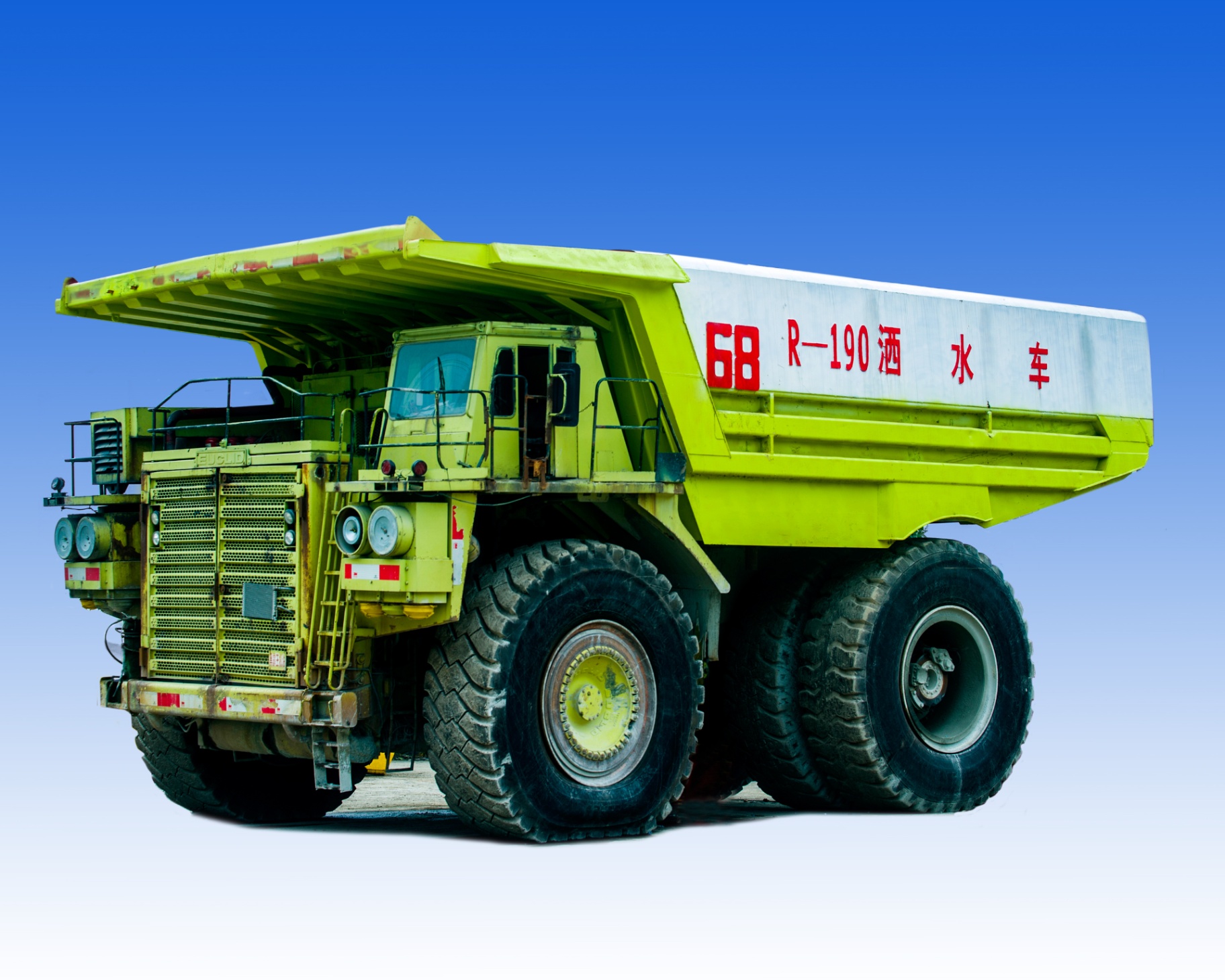

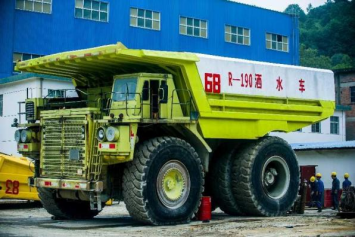

R-190 Electric-Drive Water Truck
R-190 electric-drive water truck for mine haul roads — large-capacity tank and high-pressure spray system for effective dust control on open-pit benches.
Mining Equipment Parts

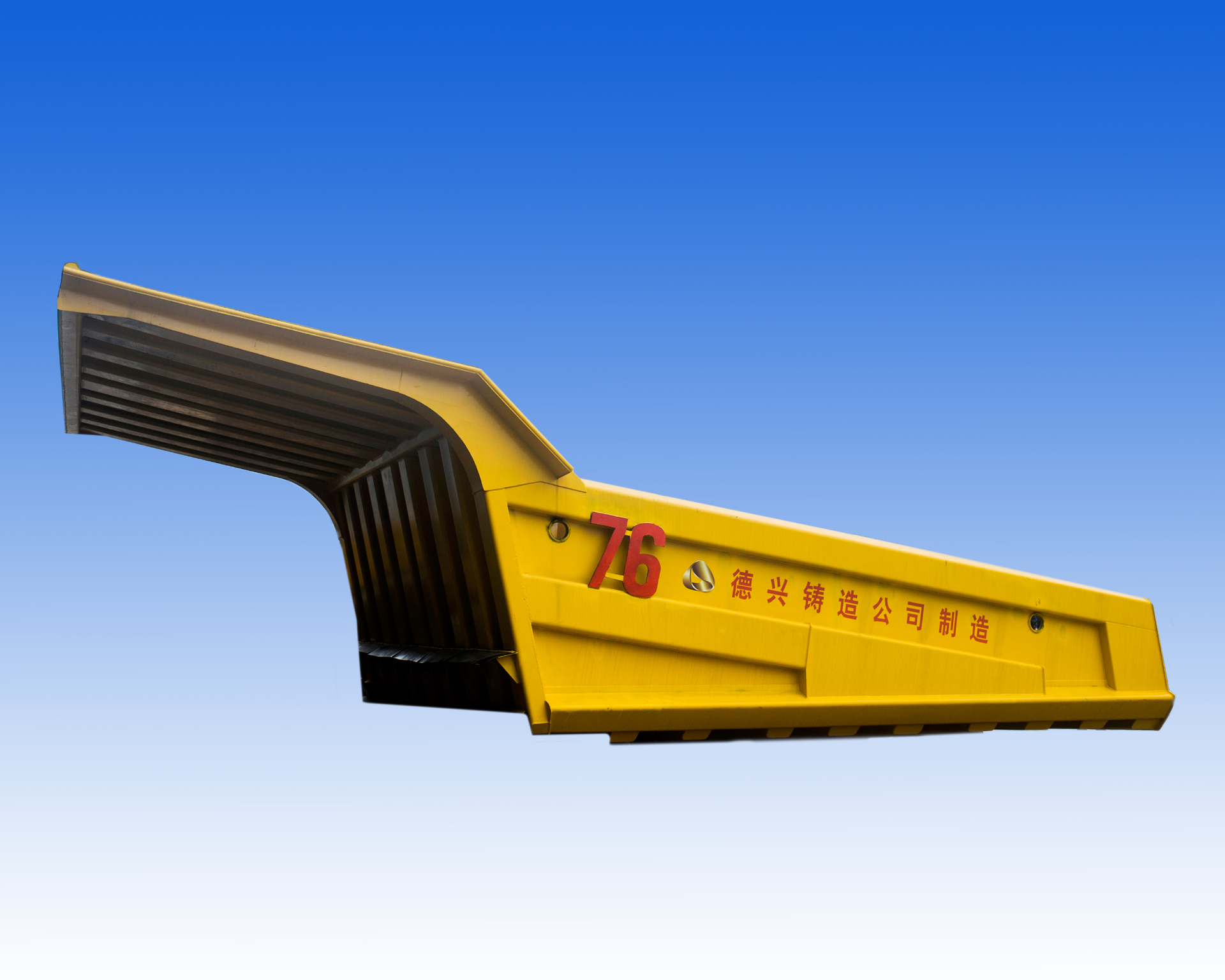

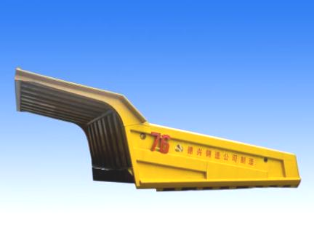

NTE240 Electric-Drive Haul Truck Body
Heavy-duty dump body for the NTE240 electric-drive mining haul truck — high-strength wear-resistant steel construction engineered for large open-pit operations.
Reference Sites

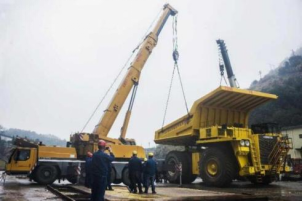

Haul Truck Body Installation On-Site
On-site installation of an electric-drive haul truck body — lifted into position with mobile cranes, ready for commissioning in the mine.
Mining Equipment Parts

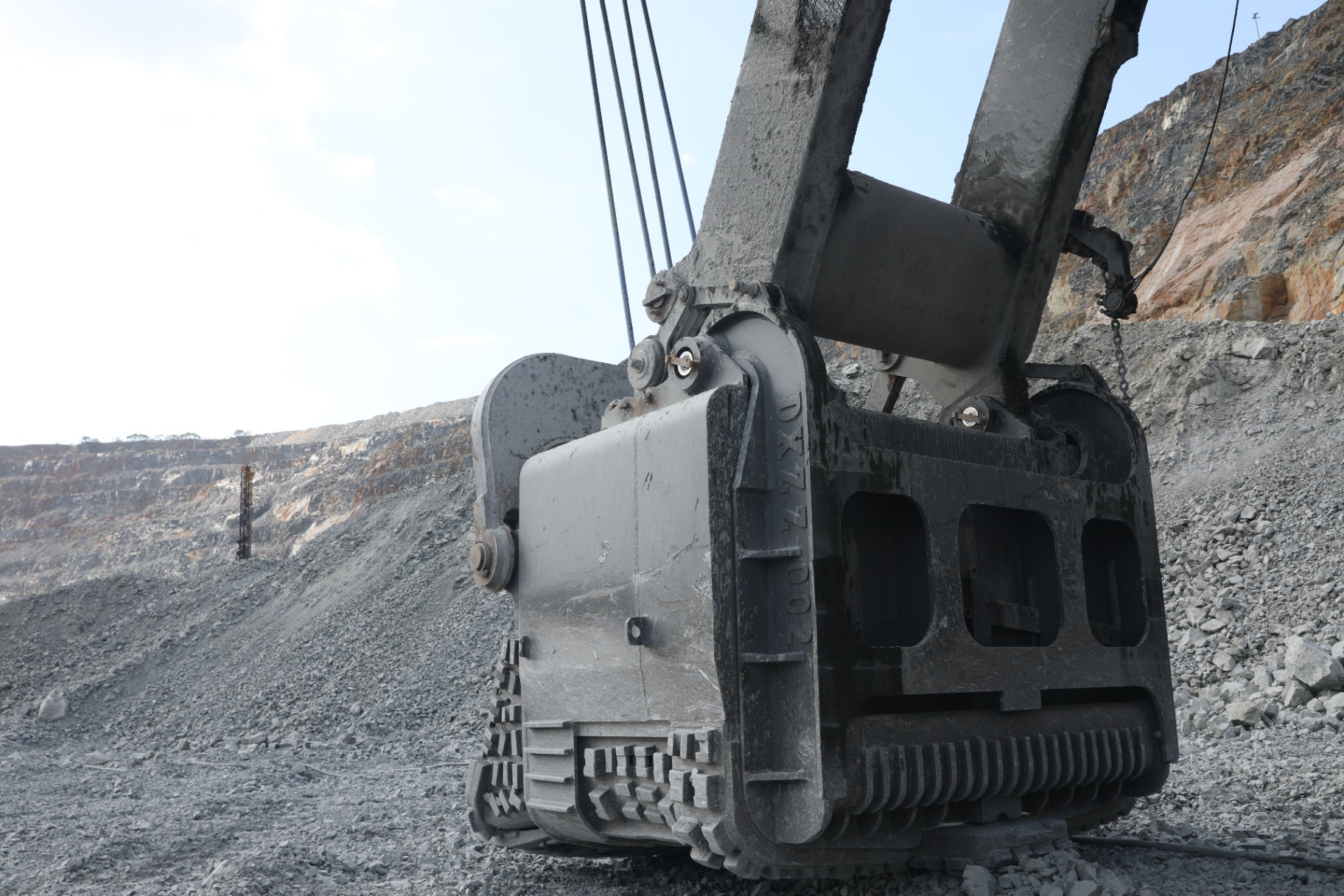

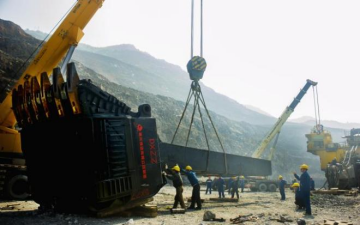

2300XPC Electric Shovel Dipper
Cast dipper (bucket) for the P&H 2300XPC class electric mining shovel — engineered for maximum payload and durability in hard-rock loading.
Mining Equipment Parts

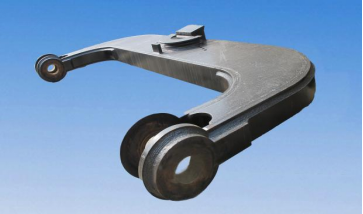

2300XP Electric Shovel Equalizer (Lifting Beam)
Forged / cast equalizer (lifting beam) for the 2300XP electric mining shovel — transmits hoist rope loads to the dipper with high fatigue strength.
Mining Equipment Parts

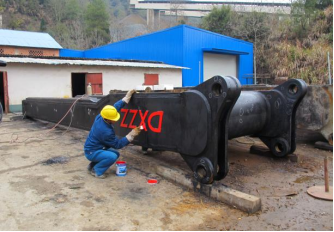

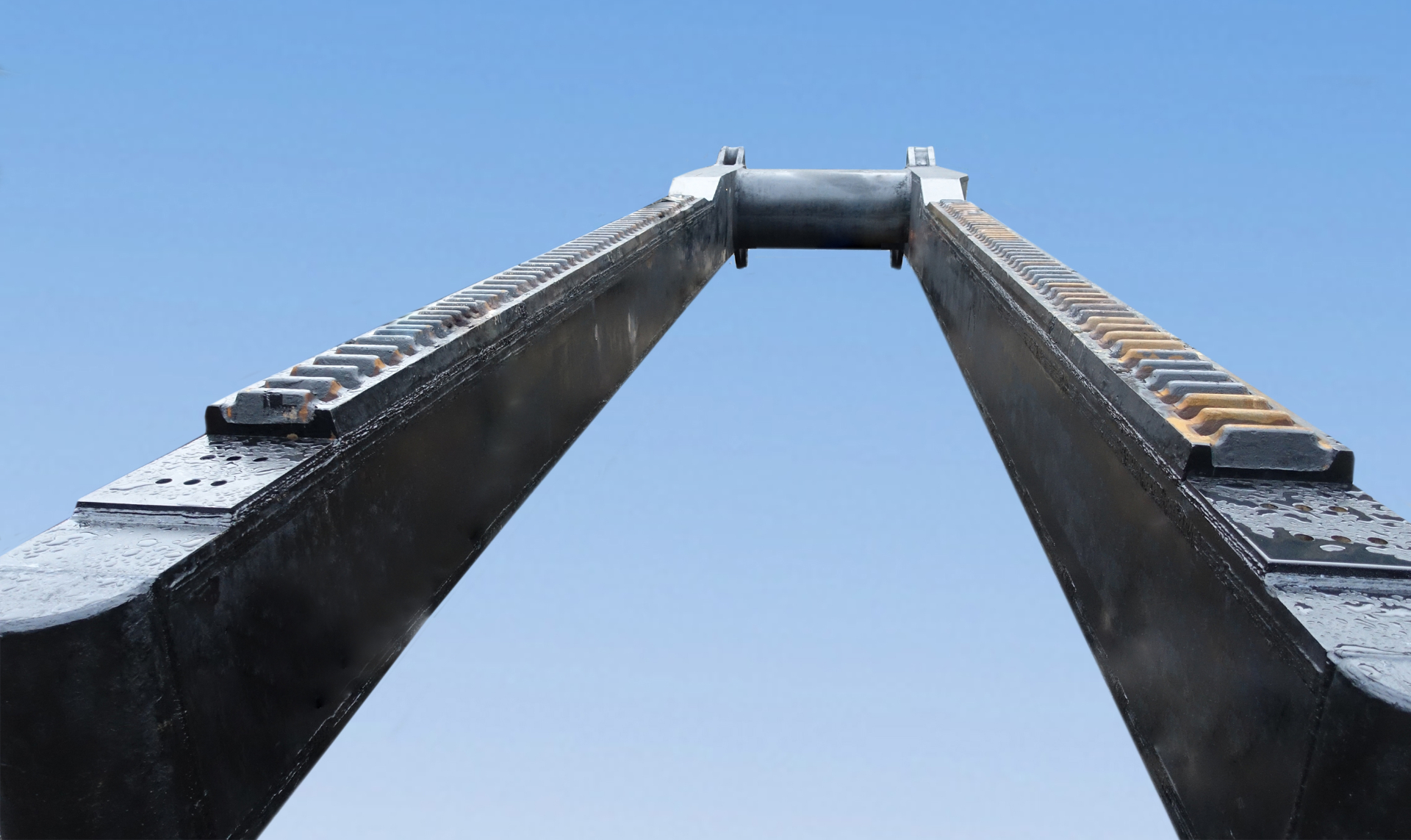

WK-4 / 2300XP Electric Shovel Dipper Handle
Dipper handle (stick) for WK-4 and 2300XP class electric mining shovels — heavy fabricated / cast structure engineered for crowd and hoist duty cycles.
Reference Sites

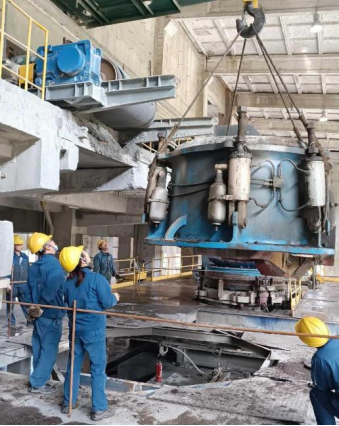

Composite Liner — Cone Crusher Application
On-site installation of new wear-resistant composite liners on cone crushers and similar comminution equipment — proven longer service life under heavy duty.
Mill Liners

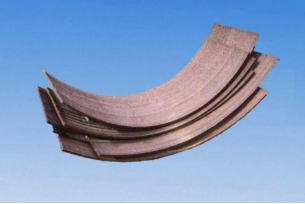

New Wear-Resistant Composite Liner (Curved)
Next-generation curved composite liner — high-hardness ceramic / carbide wear layer metallurgically bonded to a tough steel backing for superior service life.
Mill Liners

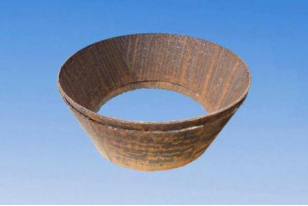

New Wear-Resistant Composite Liner (Cone)
Conical wear-resistant composite liner for chutes, cyclones and crusher cavities — combines extreme abrasion resistance with shock-tolerant steel substrate.
Mining Equipment Parts
Mine Car Tippler (Rotary Car Dumper)
Rotary mine car tippler for high-volume unloading of loaded mine cars — rugged steel structure engineered for continuous heavy-duty rail haulage operations.
Mineral Processing

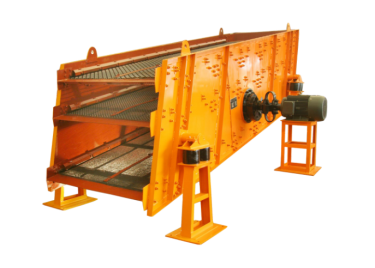

2YAC2460 Heavy-Duty Vibrating Screen
2YAC2460 ultra heavy-duty double-deck circular-motion vibrating screen — engineered for high-tonnage screening of mined ore and aggregates.
Mineral Processing

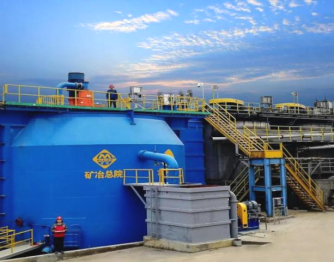

World's First 680 m³ Ultra-Large Flotation Machine
The world's first 680 m³ ultra-large flotation machine — a landmark achievement in mineral processing equipment, jointly engineered with BGRIMM.
Mineral Processing

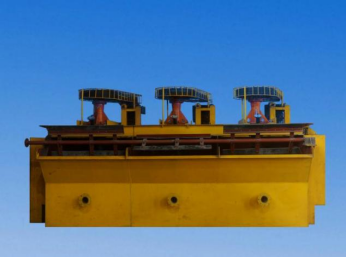

Flotation Machine Series
Full series of mechanically agitated flotation machines covering small pilot cells to large-volume industrial tanks for diverse mineral separation duties.
Mining Equipment Parts

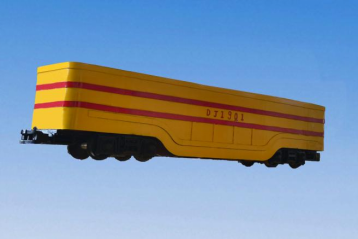

10 m³ Mine Car
10-cubic-meter underground mine car for ore and waste haulage — robust welded structure and bogies engineered for heavy-duty rail transport in mines.
Mining Equipment Parts

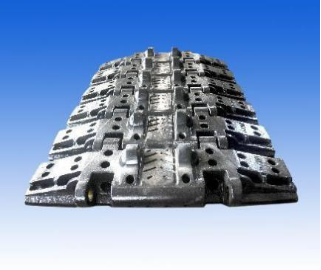

Electric Shovel Track Pad
High-manganese steel track pad (crawler shoe) for mining electric shovels — engineered for extreme impact and abrasion in open-pit operation.
Mining Equipment Parts

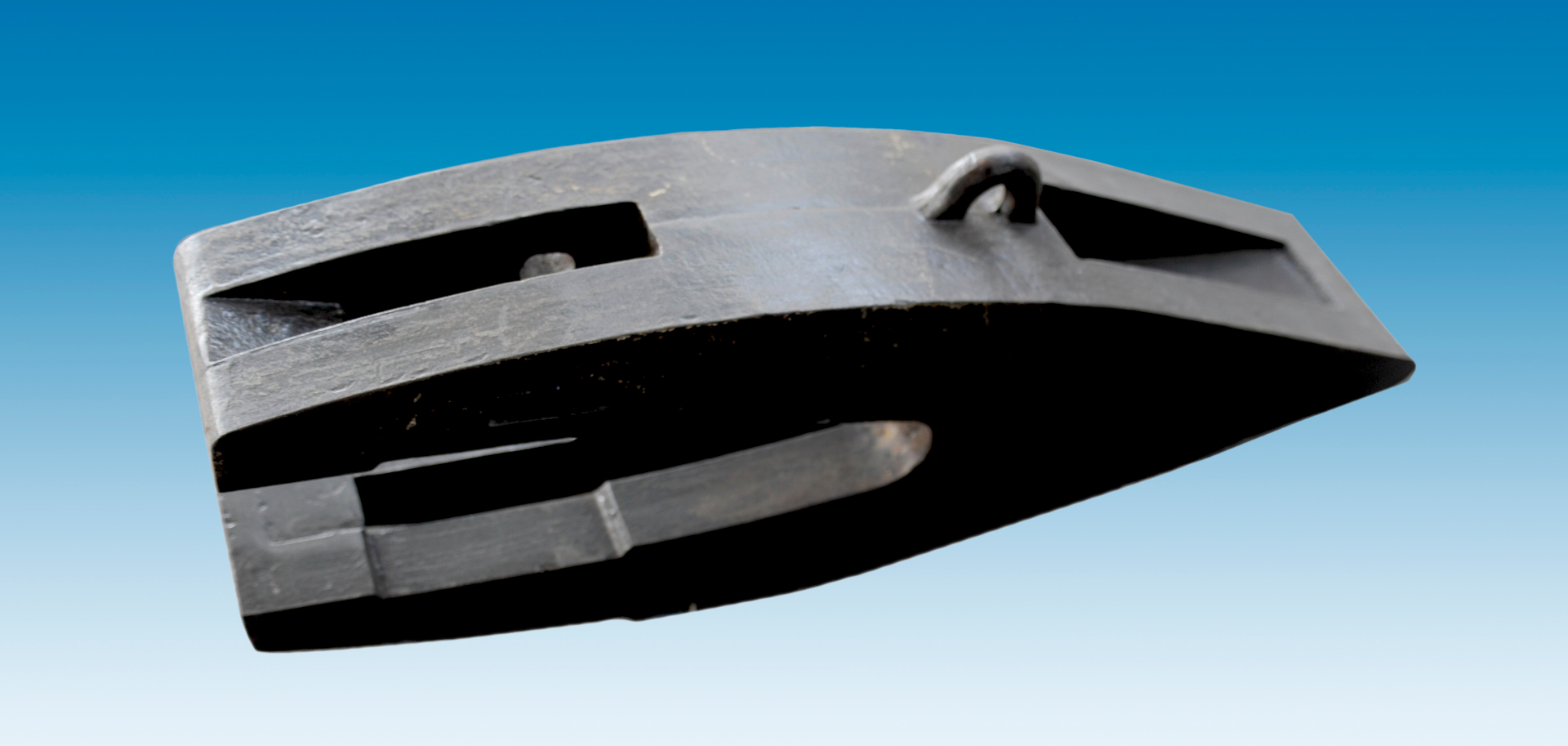

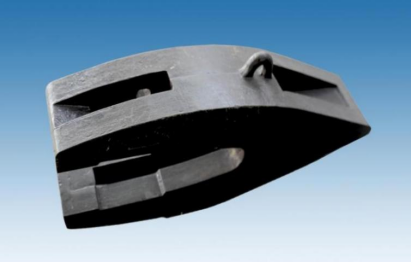

Electric Shovel Bucket Tooth
Cast bucket tooth for electric mining shovels — optimized geometry and alloy chemistry for superior penetration and long service life in hard rock.
Reference Sites

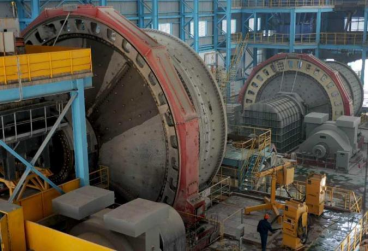

Dexing Copper Mine — Dashan Plant SAG Mill Site
On-site reference at Dexing Copper Mine's Dashan concentrator: large semi-autogenous (SAG) mills equipped with our liner solutions in continuous production.
Mill Liners

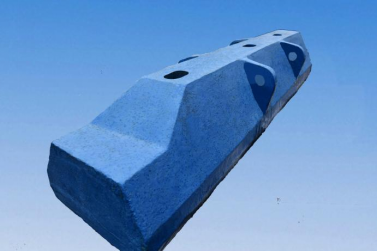

SAG Mill Liner
Heavy-duty semi-autogenous (SAG) mill liner — high-impact wear-resistant casting engineered for long service life in large-diameter SAG mills.
Reference Sites

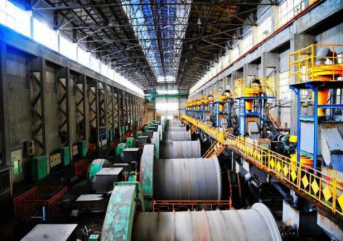

Dexing Copper Mine — Sizhou Plant Ball Mill Site
On-site reference at Dexing Copper Mine's Sizhou concentrator: rows of large ball mills running with our liner and grinding media solutions.
Mill Liners

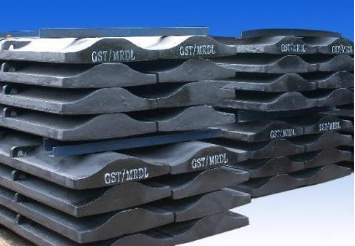

Ball Mill Liner Ф3.2×3.1 m
Complete set of high-manganese / high-chrome ball mill liners for Ф3.2×3.1 m mills — stacked and ready for shipment, marked GST/MRDL.
Crusher Wear Parts

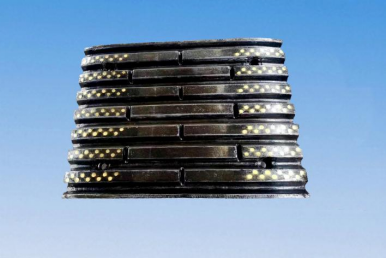

Composite Tooth Plate
Composite tooth plate combining a tough steel matrix with hard ceramic / carbide inserts — superior impact and abrasion resistance for crushers.
Mill Liners

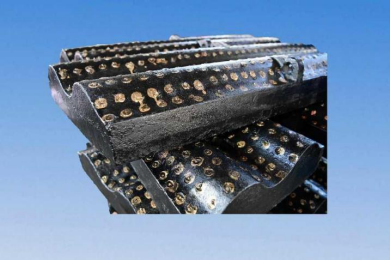

TiC-Rod Reinforced High-Mn Steel Composite Liner
High-manganese steel composite liner reinforced with titanium carbide (TiC) rod inserts — combines extreme surface hardness with shock-resistant matrix toughness.
Production Lines

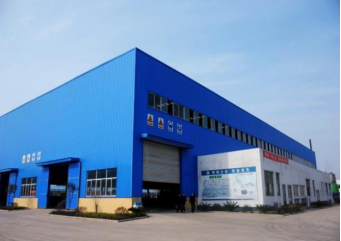

Yugan Forging & Casting Workshop
Production workshop of Yugan Forging & Casting Co. — large-span steel structure facility housing forging, heat treatment and finishing lines.
Grinding Media

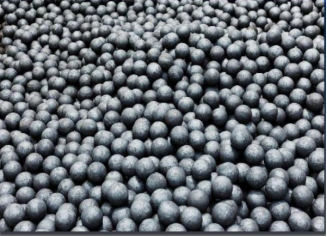

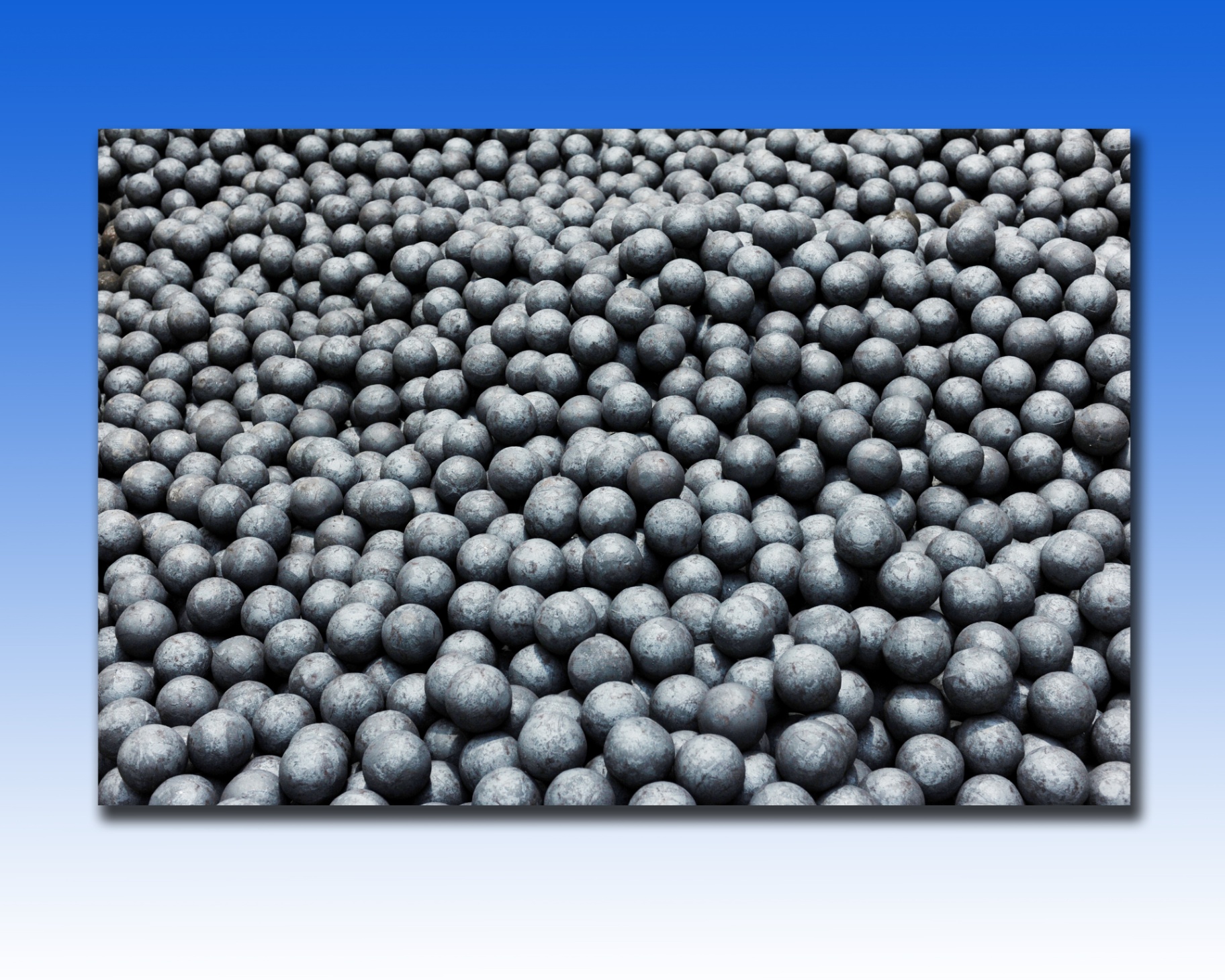

Forged Steel Grinding Balls
Forged steel grinding balls with high impact toughness, uniform hardness and low breakage rate — suitable for SAG and ball mills in mining, cement and power.
Production Lines

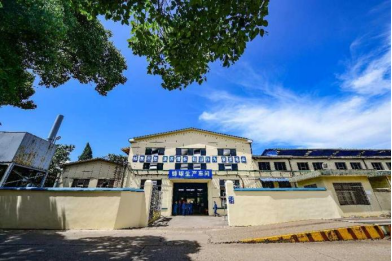

Grinding Ball Foundry Workshop
Dedicated grinding ball foundry workshop — the production base where alloy steel and high-chrome grinding media are cast, heat treated and finished.
Grinding Media

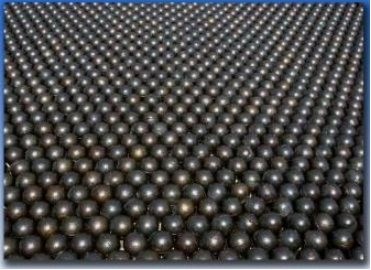

High-Chrome Grinding Balls
High-chrome cast grinding balls with uniform size, high hardness and excellent wear resistance — engineered for ball mills in mining and cement.
Quality Control

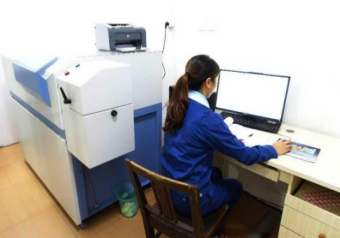

Spectrum Analyzer (Chemistry Lab)
Optical emission spectrometer used for in-house chemical composition analysis, ensuring every heat meets target alloy specifications before pouring.
Quality Control

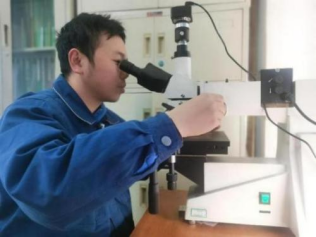

Metallographic Image Analysis
Metallographic microscope station for examining microstructure, grain size and phase distribution — verifying heat-treatment results and wear performance.
Production Lines

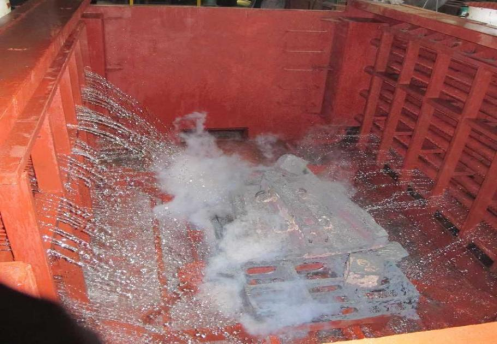

Water-Mist Air Heat Treatment Process
Water-mist air heat treatment process for wear parts and grinding media, combining rapid cooling with controlled thermal uniformity.
Production Lines

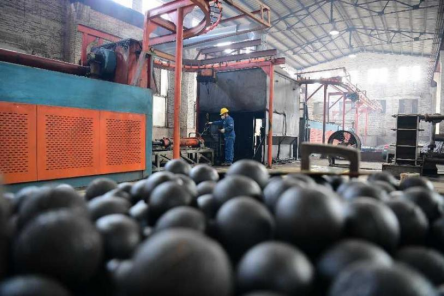

High-Chrome Ball Heat Treatment Process
Dedicated heat treatment process for high-chrome grinding balls, ensuring stable hardness, toughness and wear resistance in bulk production.
Production Lines

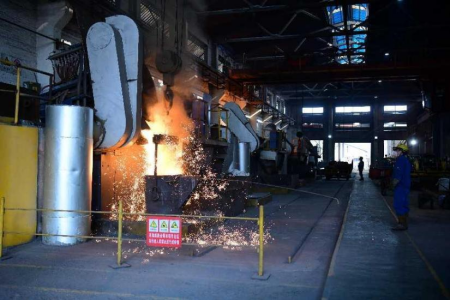

Medium-Frequency Induction Furnace Melting
Medium-frequency induction furnace melting process — clean, efficient melting of alloy steel and high-chrome iron for premium castings.
Production Lines

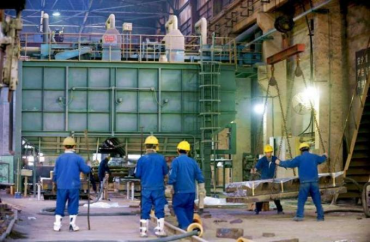

V-Process Molding Production Line
V-process (vacuum sealed) molding line for producing large, dimensionally accurate castings with superior surface finish.
Production Lines

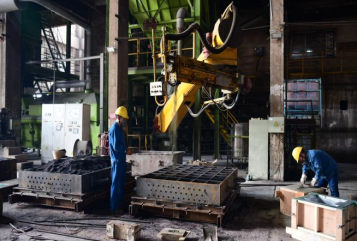

Iron-Mold Sand-Coating Molding Process
Iron-mold sand-coating (铁模覆砂) molding station — combines metal mold rigidity with a thin resin sand layer for high-precision, high-density castings.
Production Lines

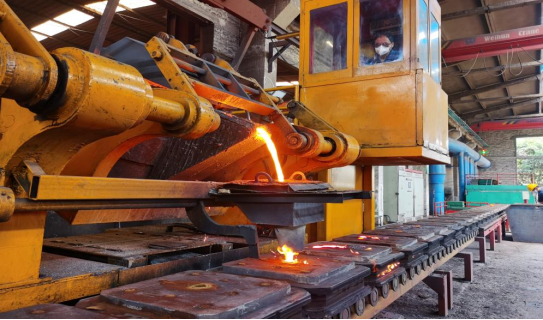

Mechanized Iron-Mold Sand-Coating Casting Line for Grinding Balls
Automated iron-mold sand-coating (铁模覆砂) production line for wear-resistant cast grinding balls — molten metal pouring station feeding a continuous mold conveyor.
Production Lines

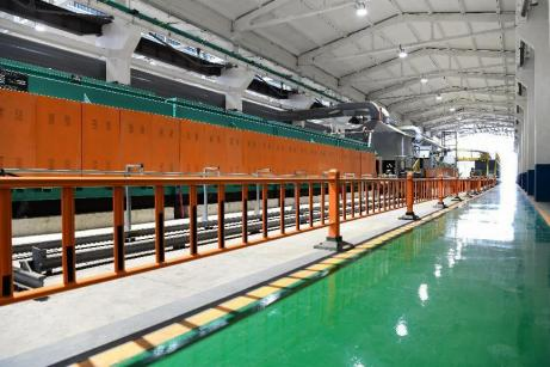

Automated High-Chrome Ball Heat Treatment Line
Fully automated heat treatment line for high-chrome grinding balls, delivering consistent hardness and microstructure at high throughput.
Production Lines

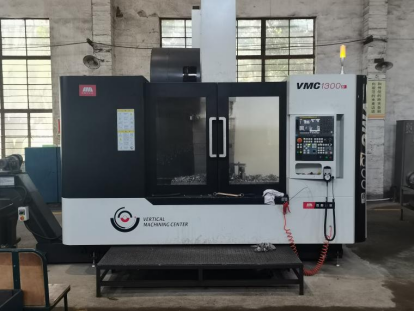

VMC-1300 Series Vertical Machining Center
VMC-1300 vertical CNC machining center used for precision machining of mill liners, crusher parts and custom castings.
Mining Support Equipment

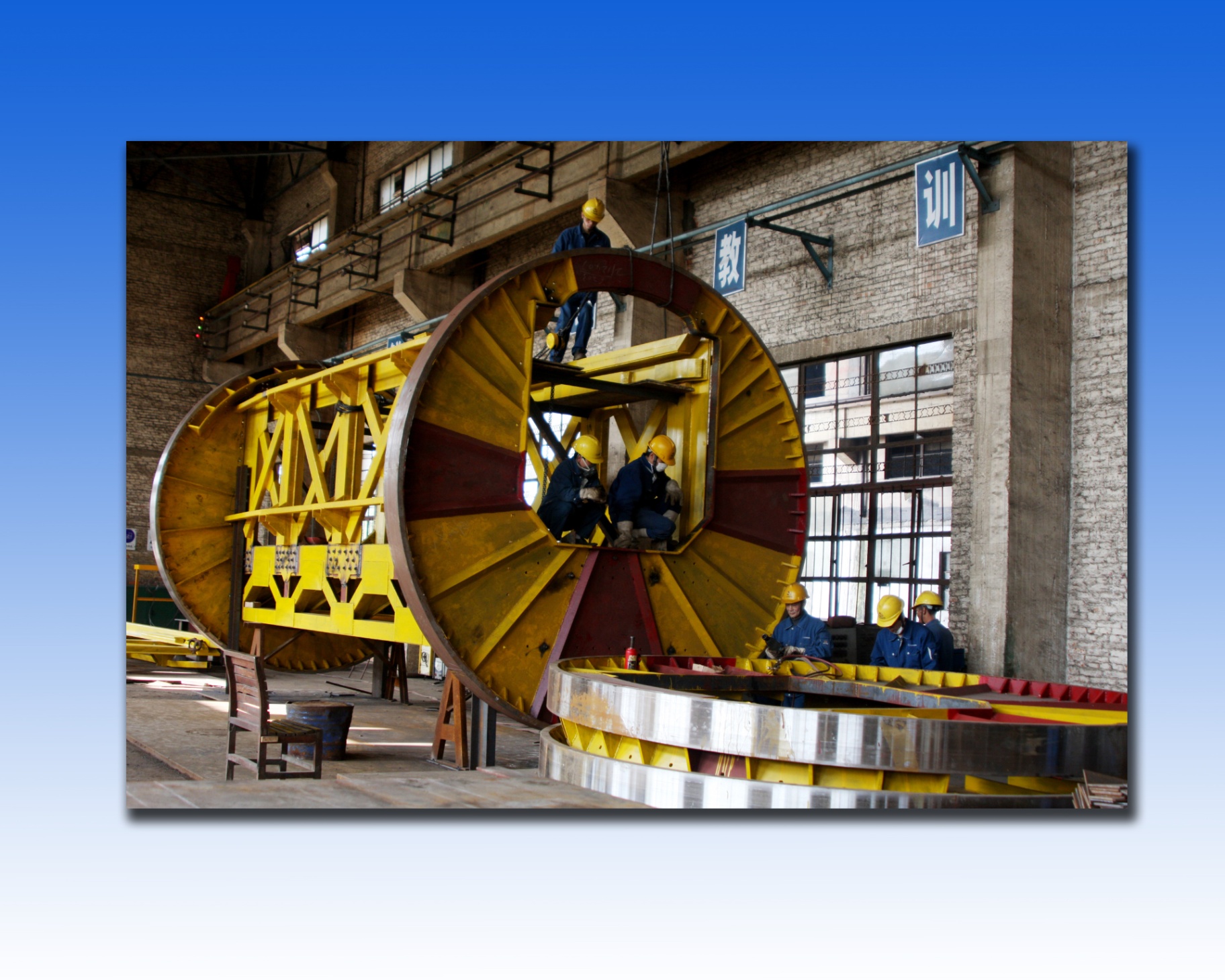

Rail Car Rotary Tumbler Assembly
Large fabricated rotary tumbler (翻笼) for railcar unloading systems — fully welded steel frame with bolted ring gear and trunnion rings.
Mining Support Equipment

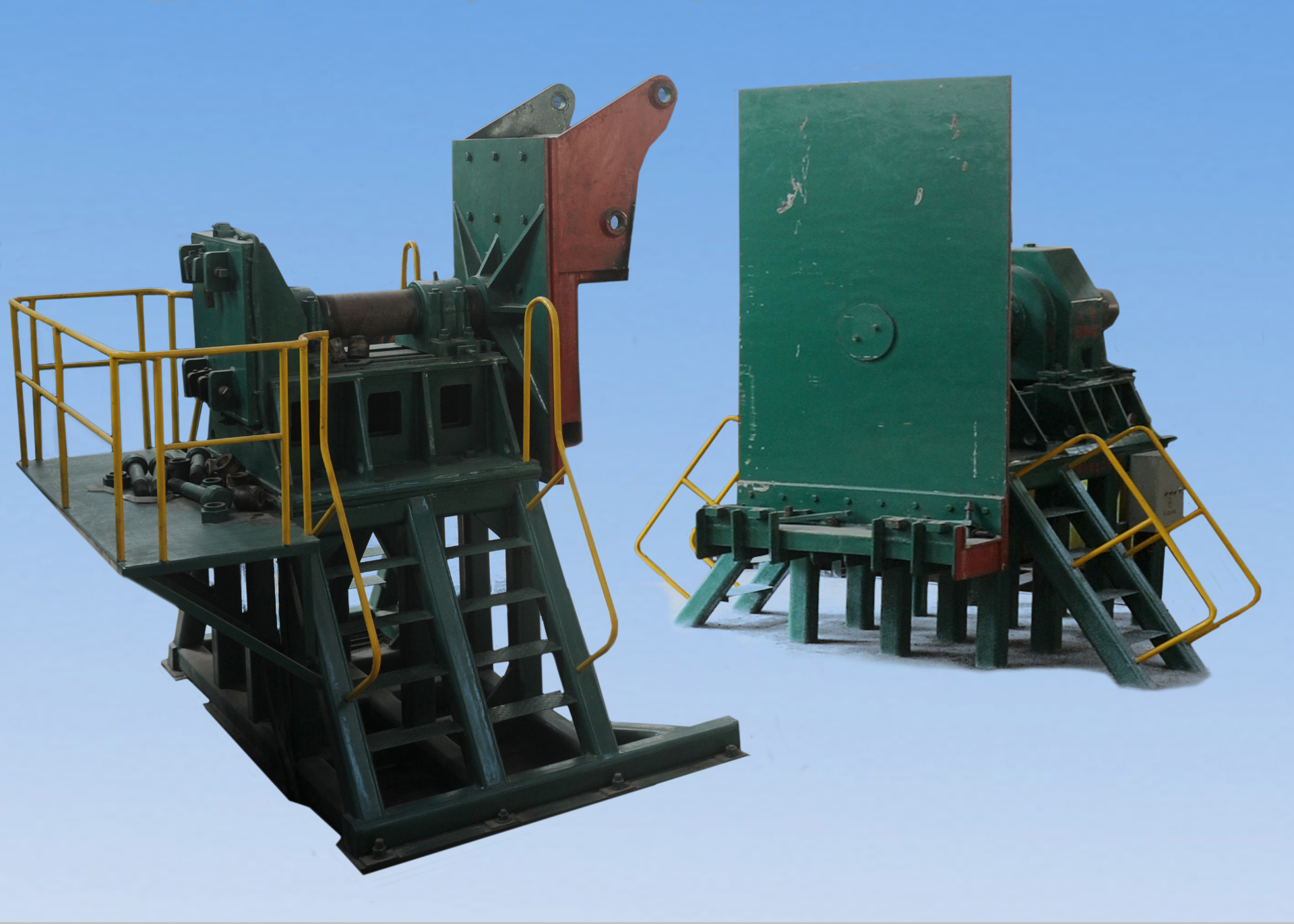

Universal Electric Wheel Beam Turnover Machine
Universal turnover machine for electric drive haul-truck main beams, used during fabrication, welding and repair of large mining trucks.
Industrial Components

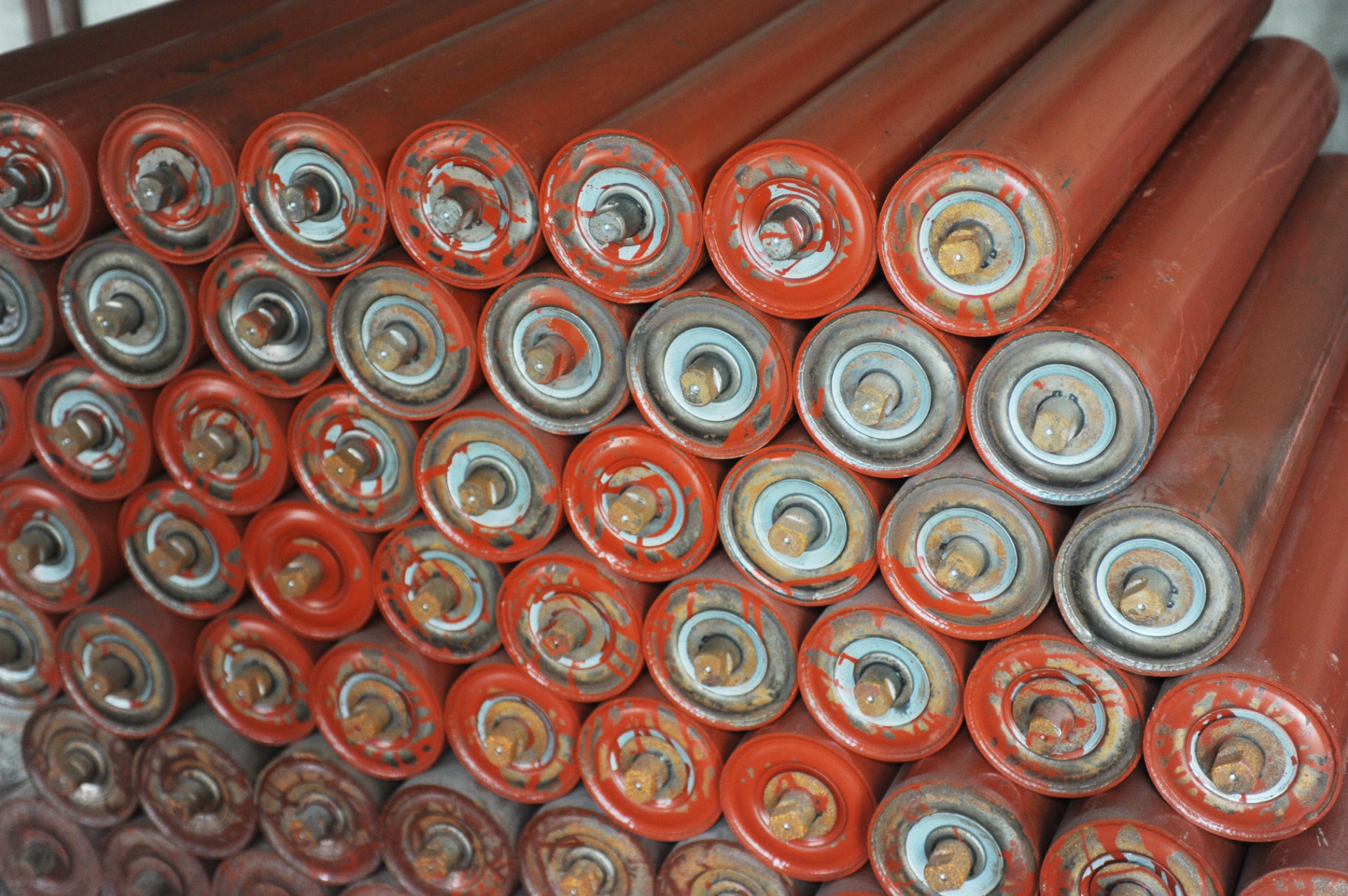

Belt Conveyor Idler Rollers
Sealed-bearing steel idler rollers (托辊) for heavy-duty mine and bulk-material belt conveyors.
Mining Support Equipment

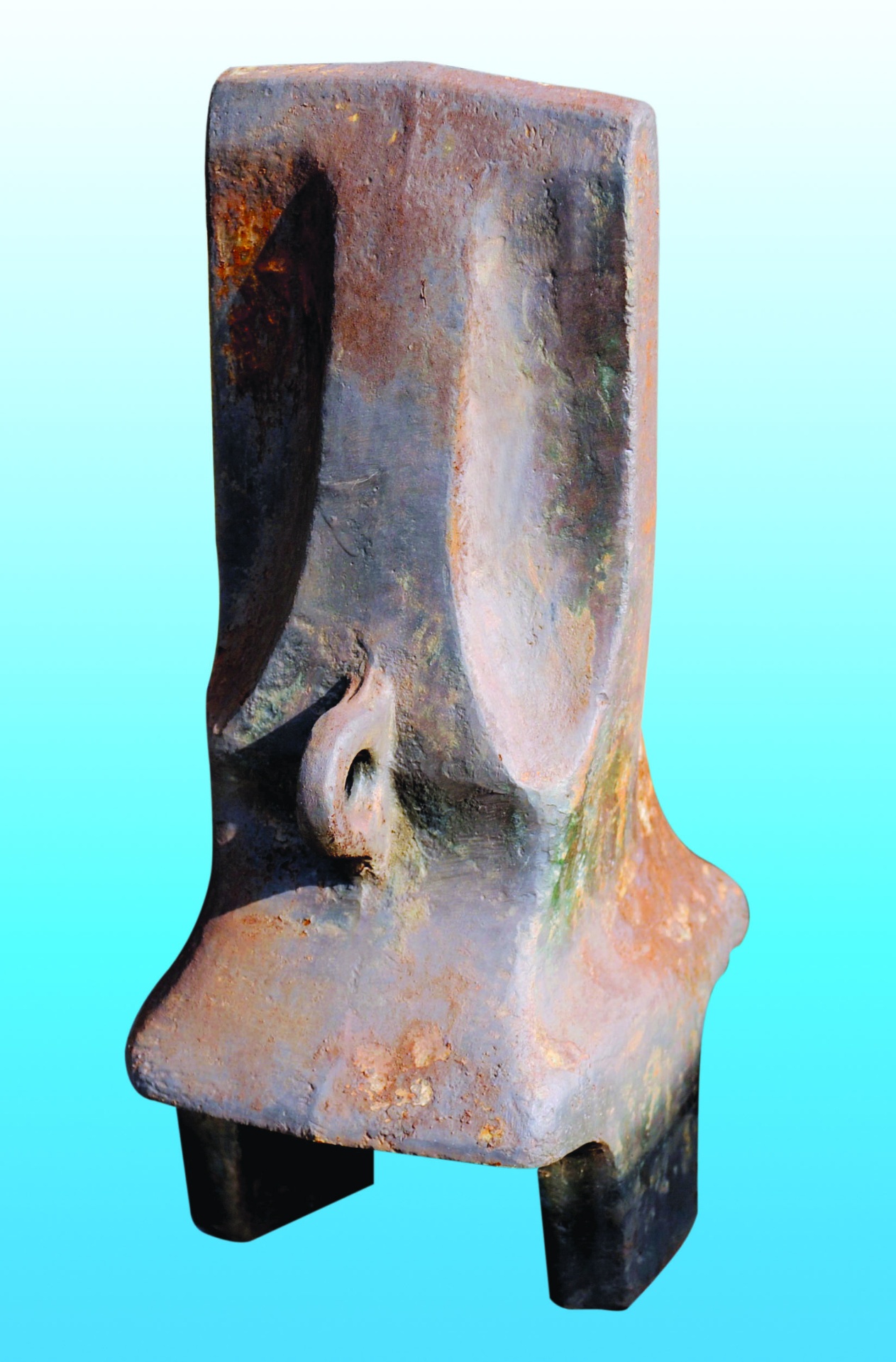

Cast Excavator Tooth Tip
High-impact cast excavator bucket tooth tip for shovels and front-end loaders in hard-rock mining applications.
Mill Liners

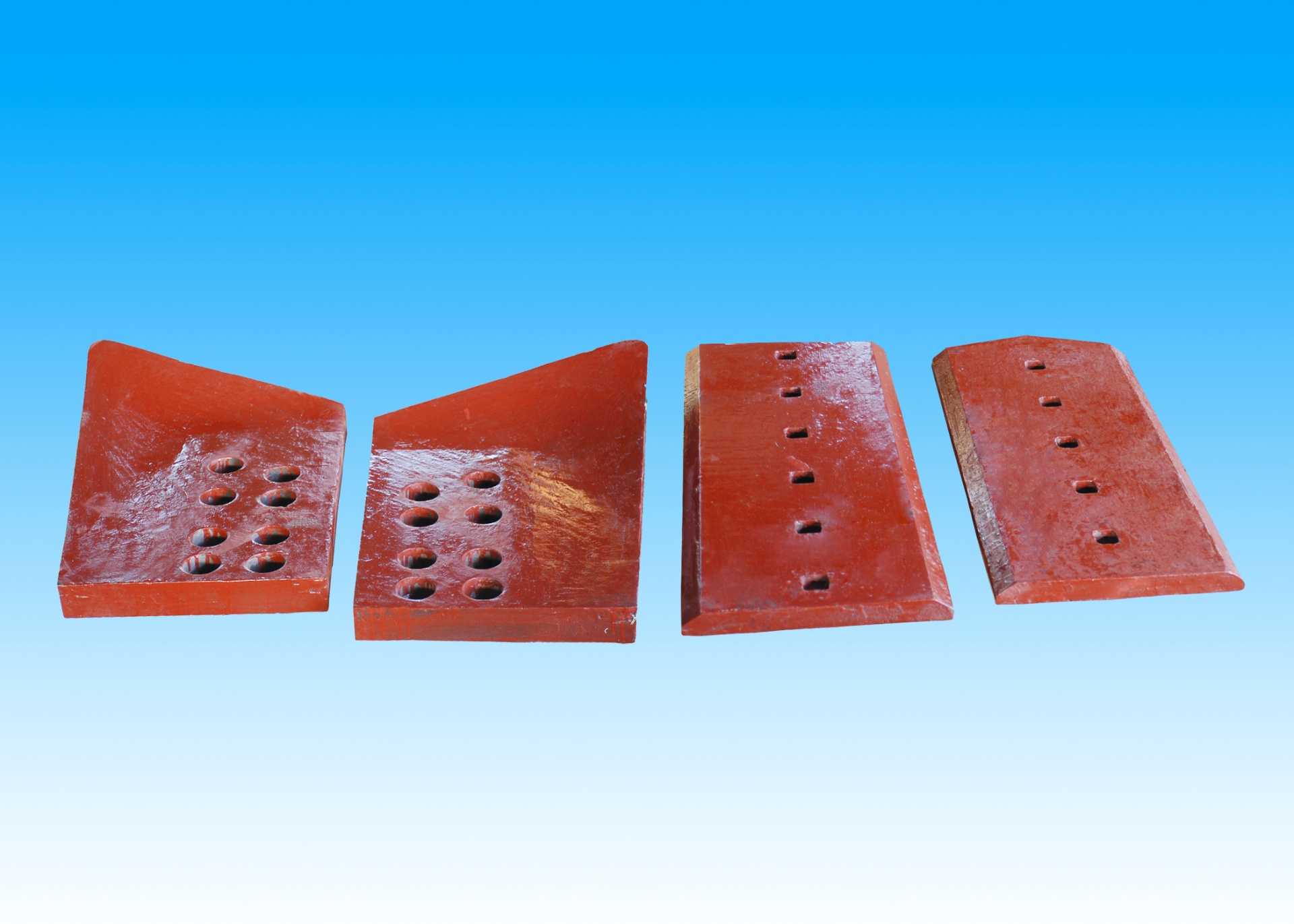

Mill Liner Plate Set
Bolted mill liner plates in matched corner and shell profiles, primer-coated and ready for installation.
Mill Liners

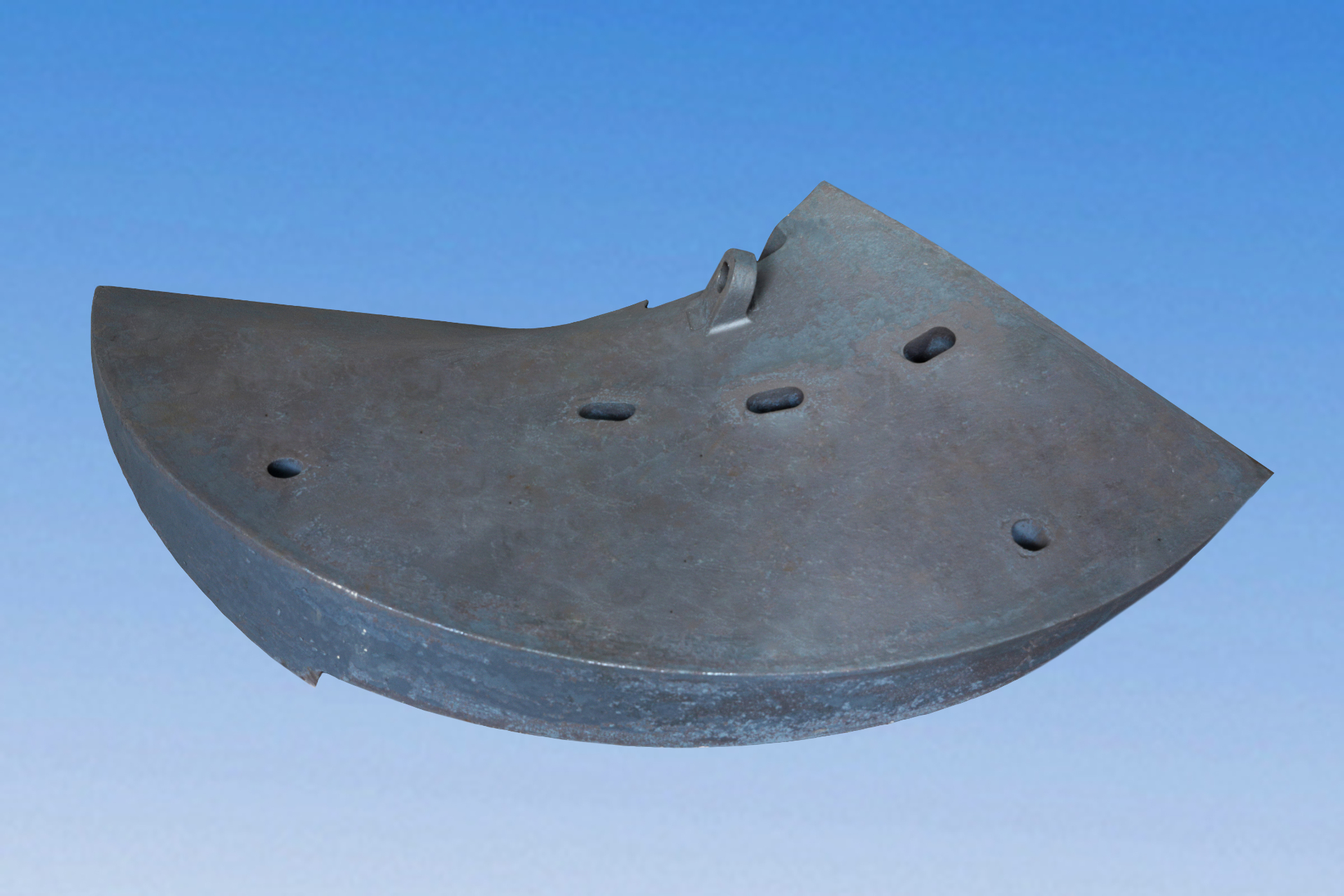

Curved Sector Mill Liner
Heavy curved sector liner with lifting lug and bolt slots for large-diameter ball and SAG mills.
Mill Liners

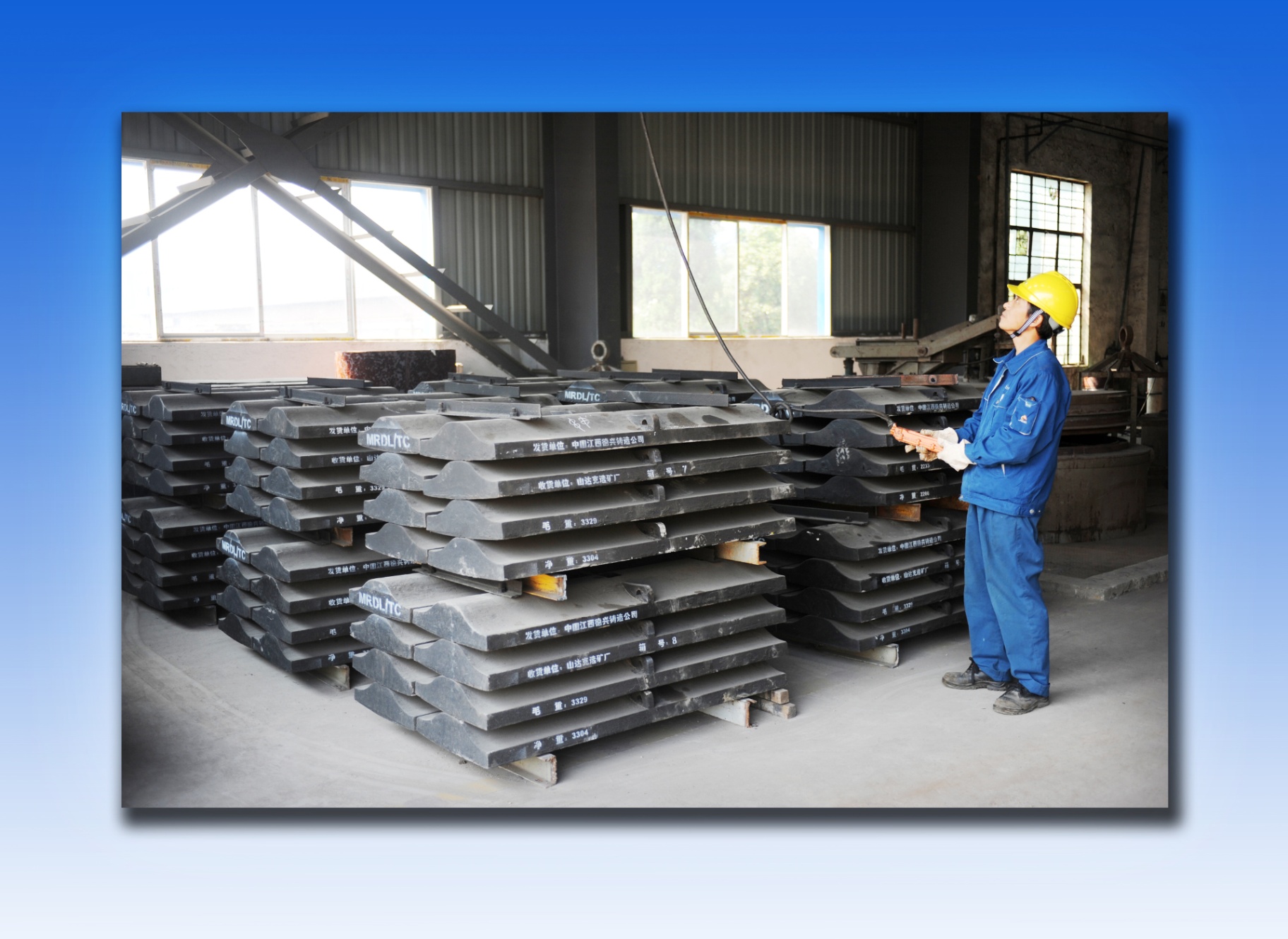

Mill Liner Shipment Stock
Finished mill liner castings stacked and tagged for shipment to mine sites — full traceability with gross/net weight marking.
Mill Liners

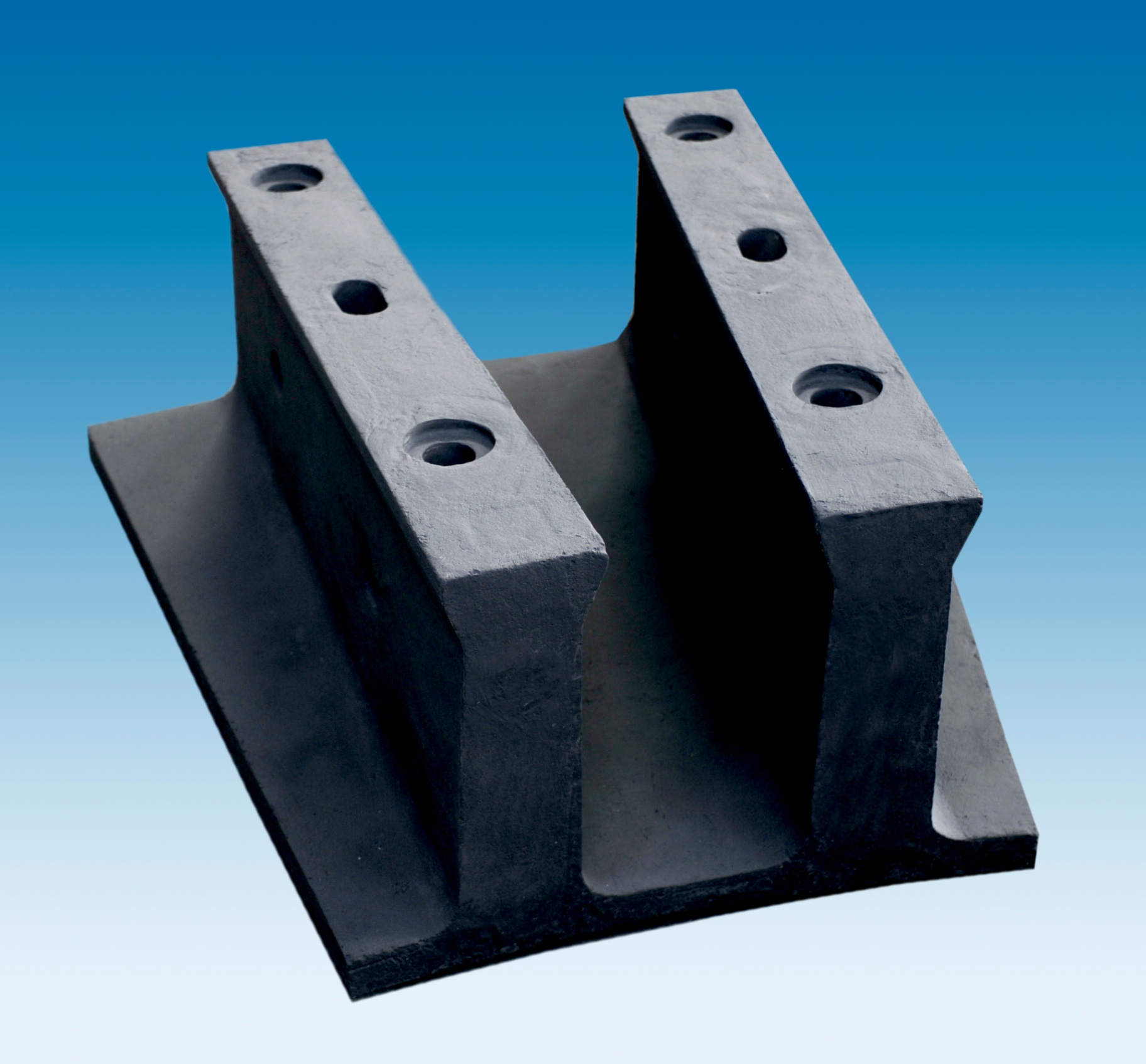

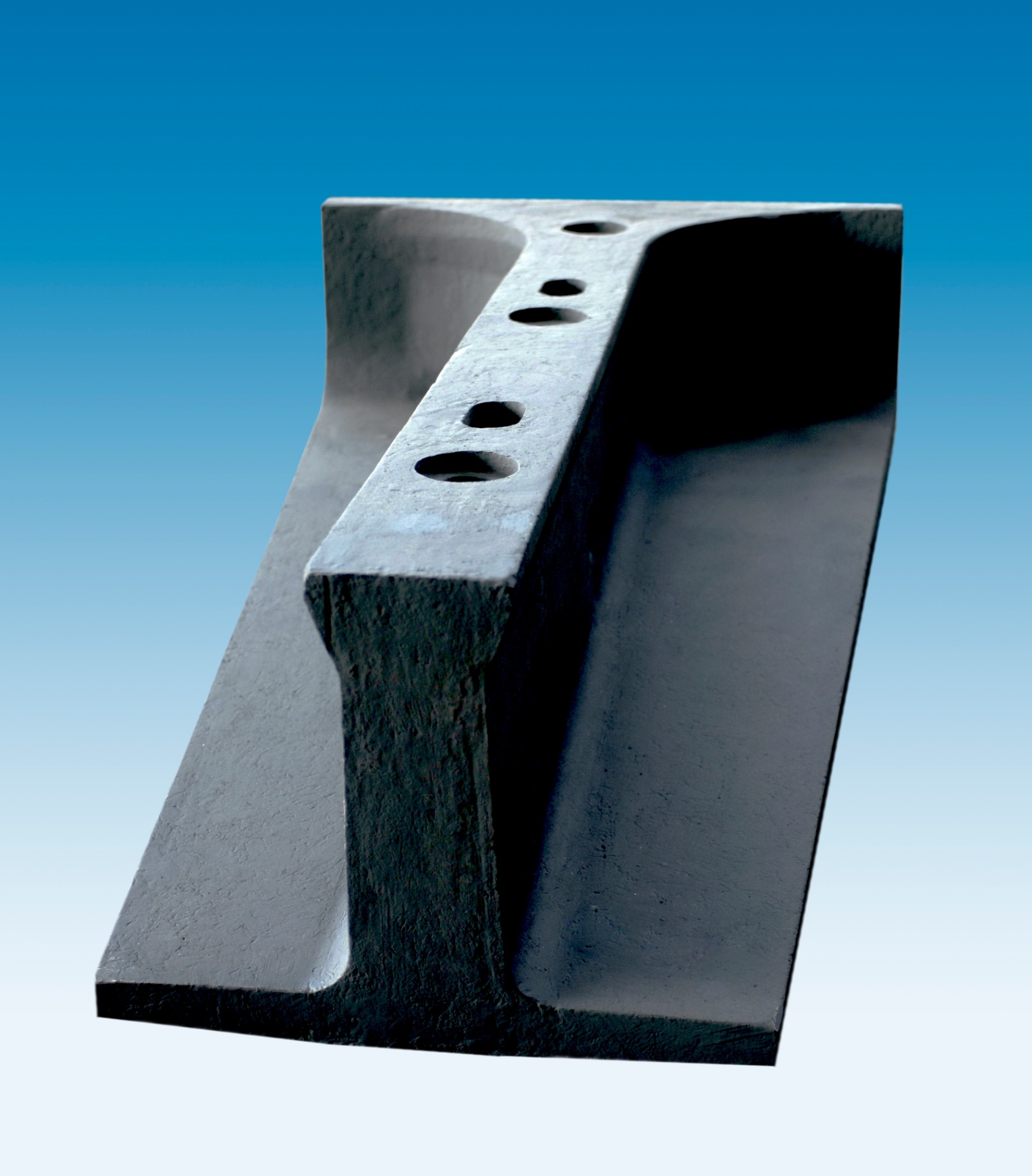

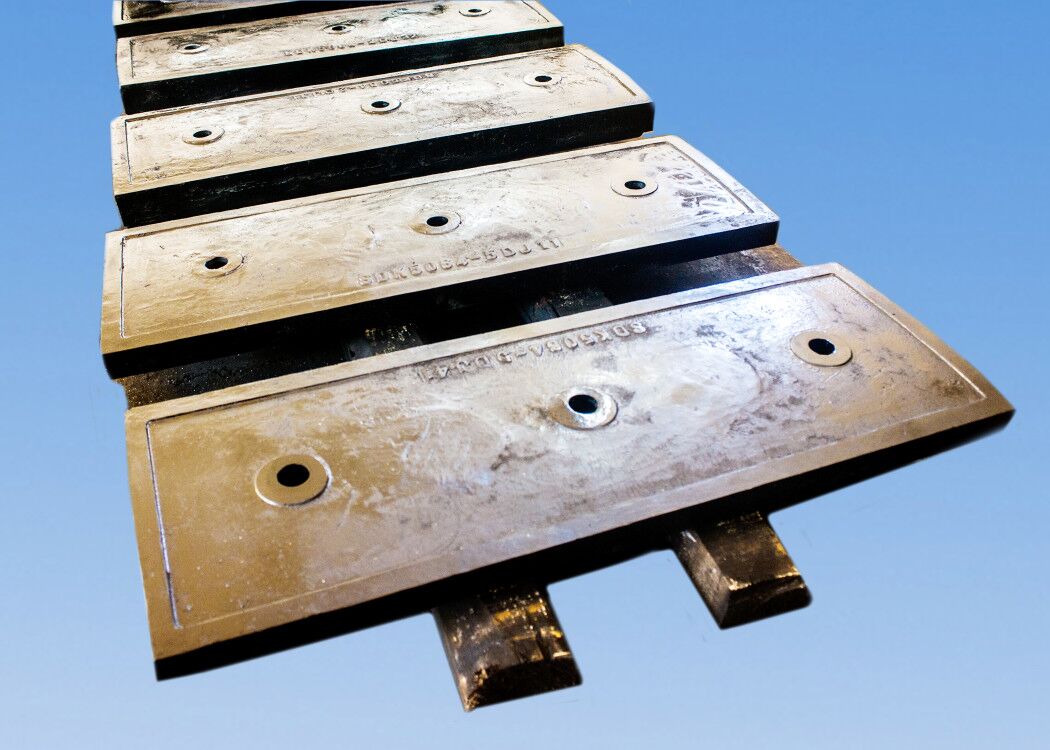

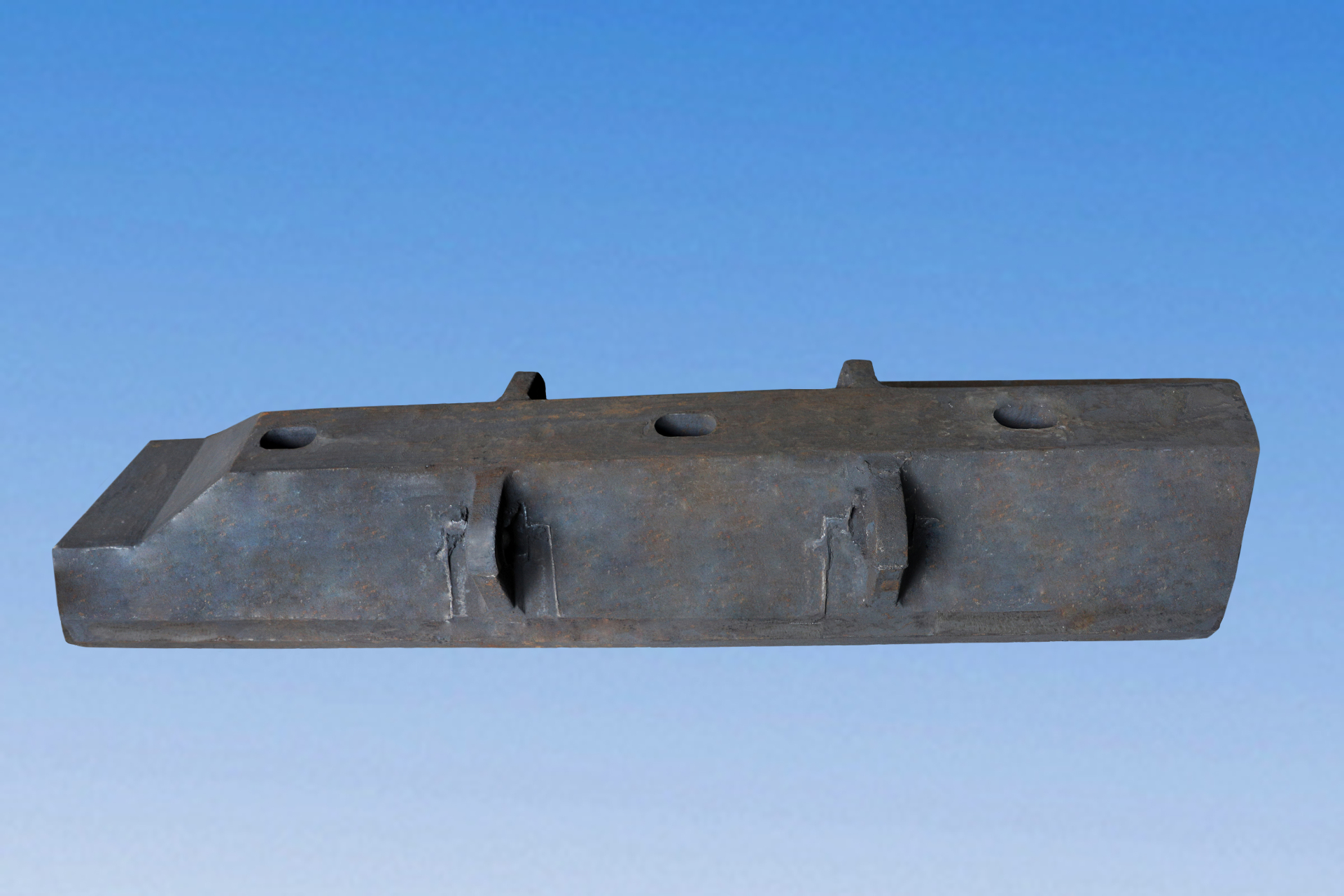

SAG Mill Lifter Bar Casting
As-cast SAG mill lifter bar with bolt holes and lifting tabs, supplied in high-chrome or alloy steel grades.
Mill Liners

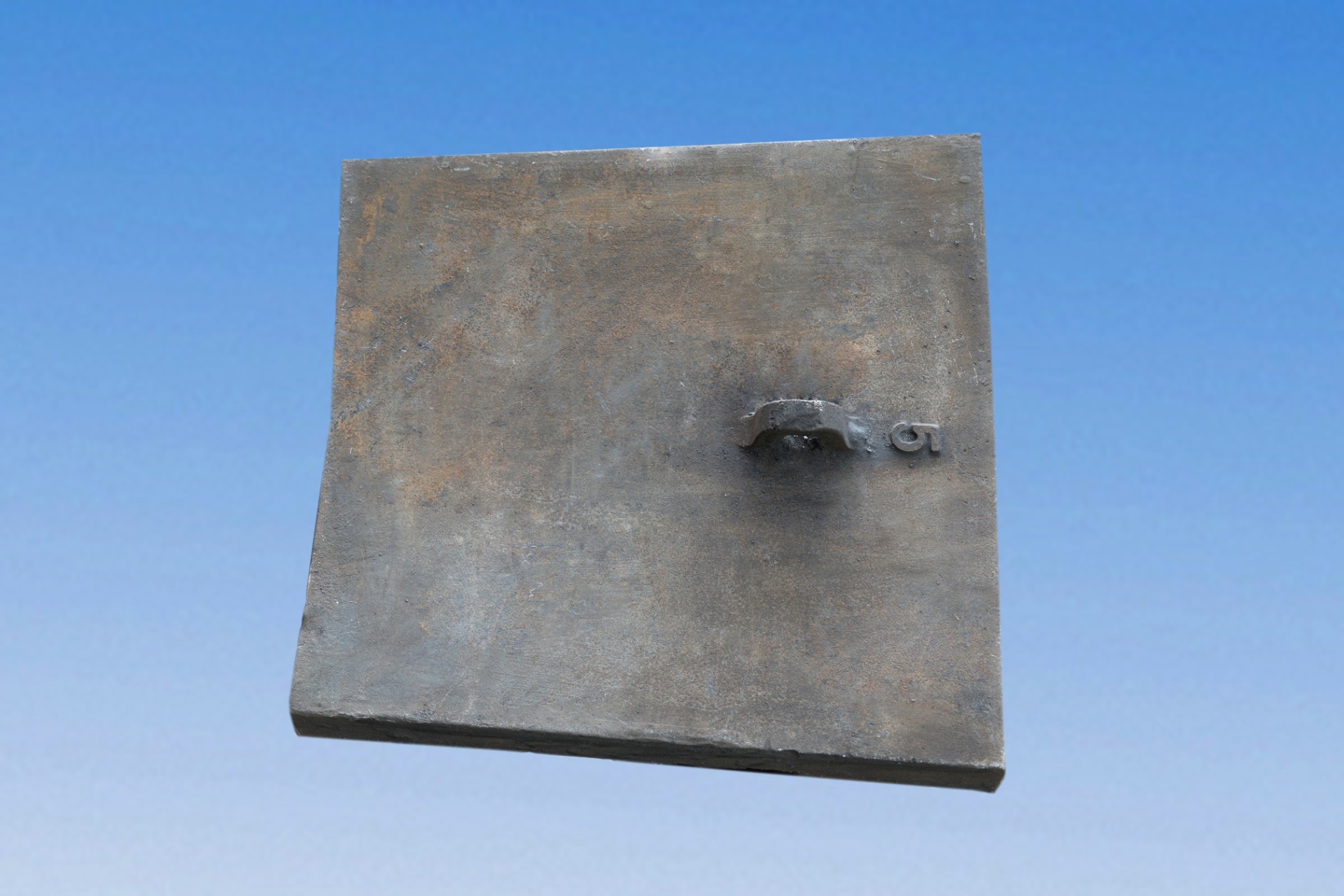

Square Shell Liner Plate
Square shell liner casting with integral lifting lug for ball mill shell positions, machined to drawing.
Fasteners & Hardware

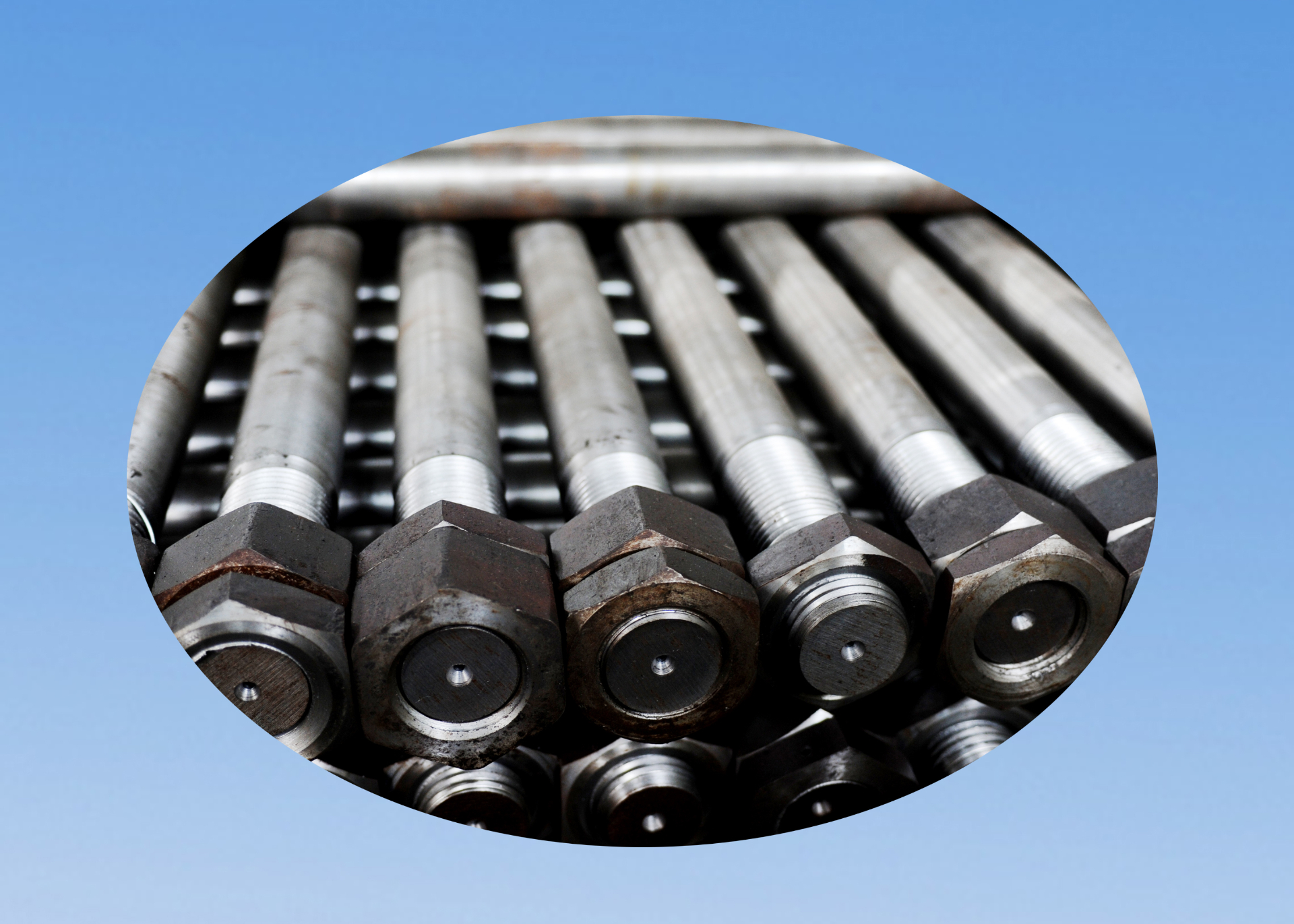

Precision Stud Bolts
Machined heavy-duty stud bolts for mill shell, structural fastening and high-load mining equipment assemblies.
Mining Support Equipment

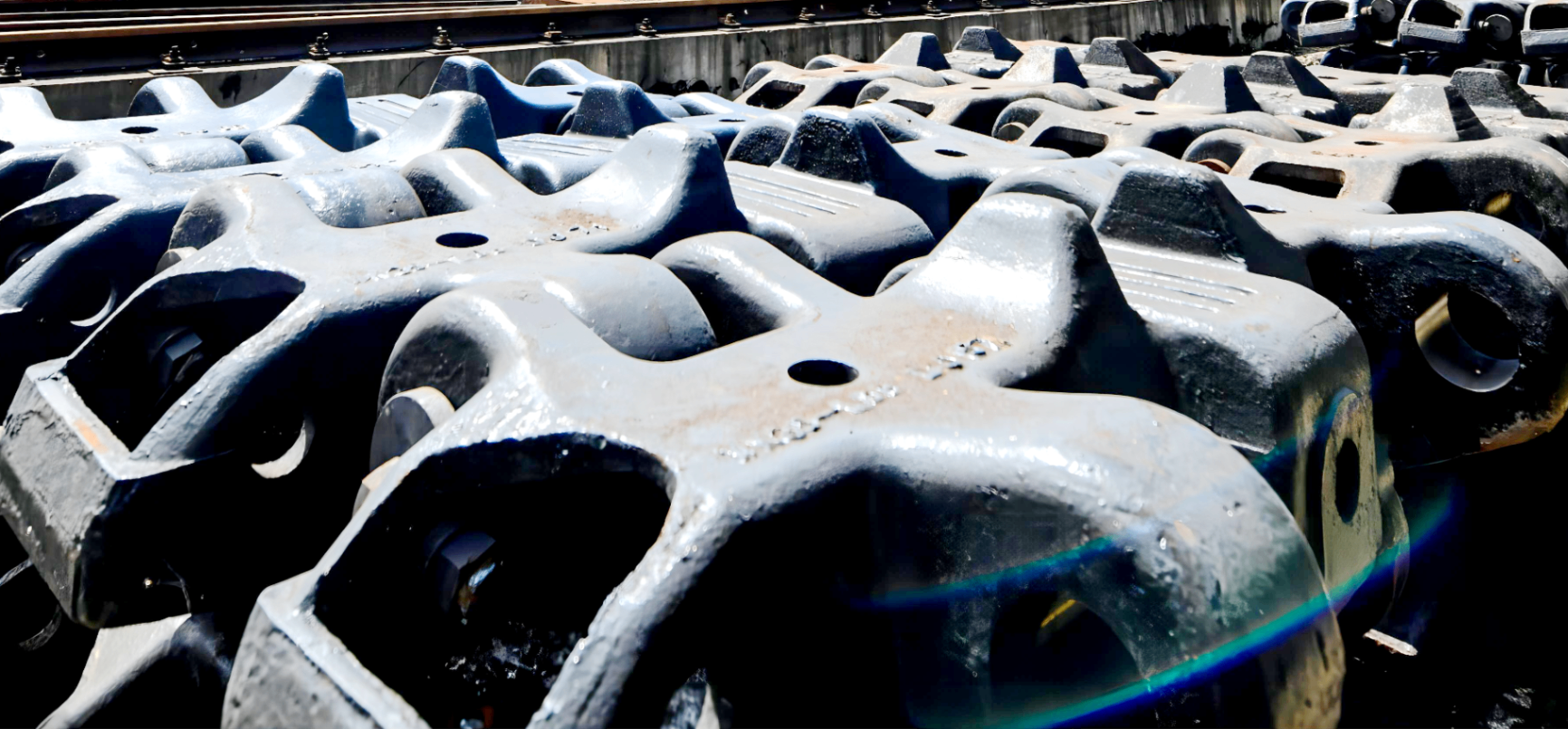

Crawler Track Shoe
Cast crawler track shoes for mining shovels and tracked heavy equipment, built for impact and abrasion resistance.
Crusher Wear Parts

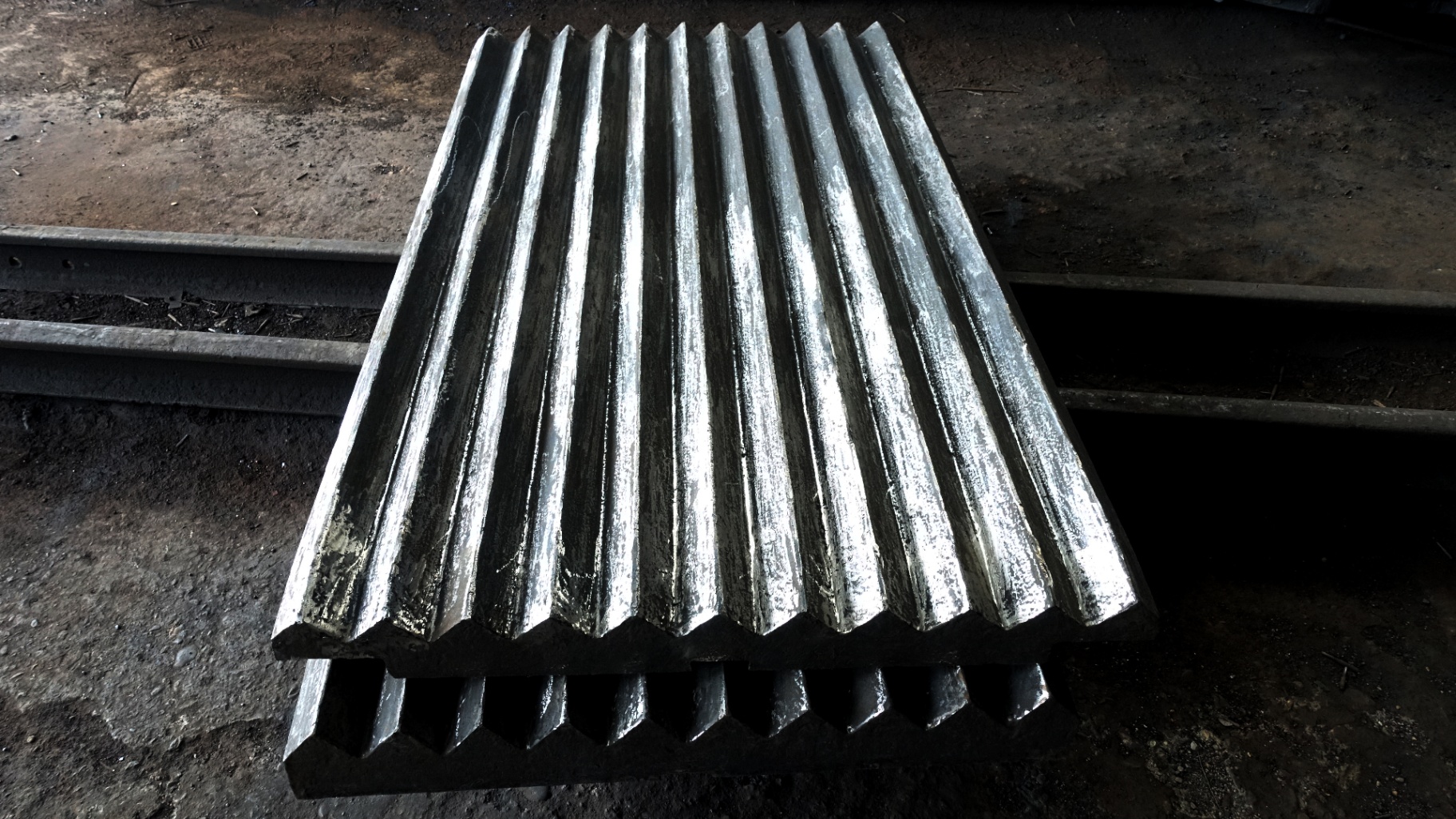

Manganese Crusher Tooth Plate
High-manganese toothed crusher plate engineered for primary crushing and long wear life in hard-rock duty.
Slurry Pump Parts

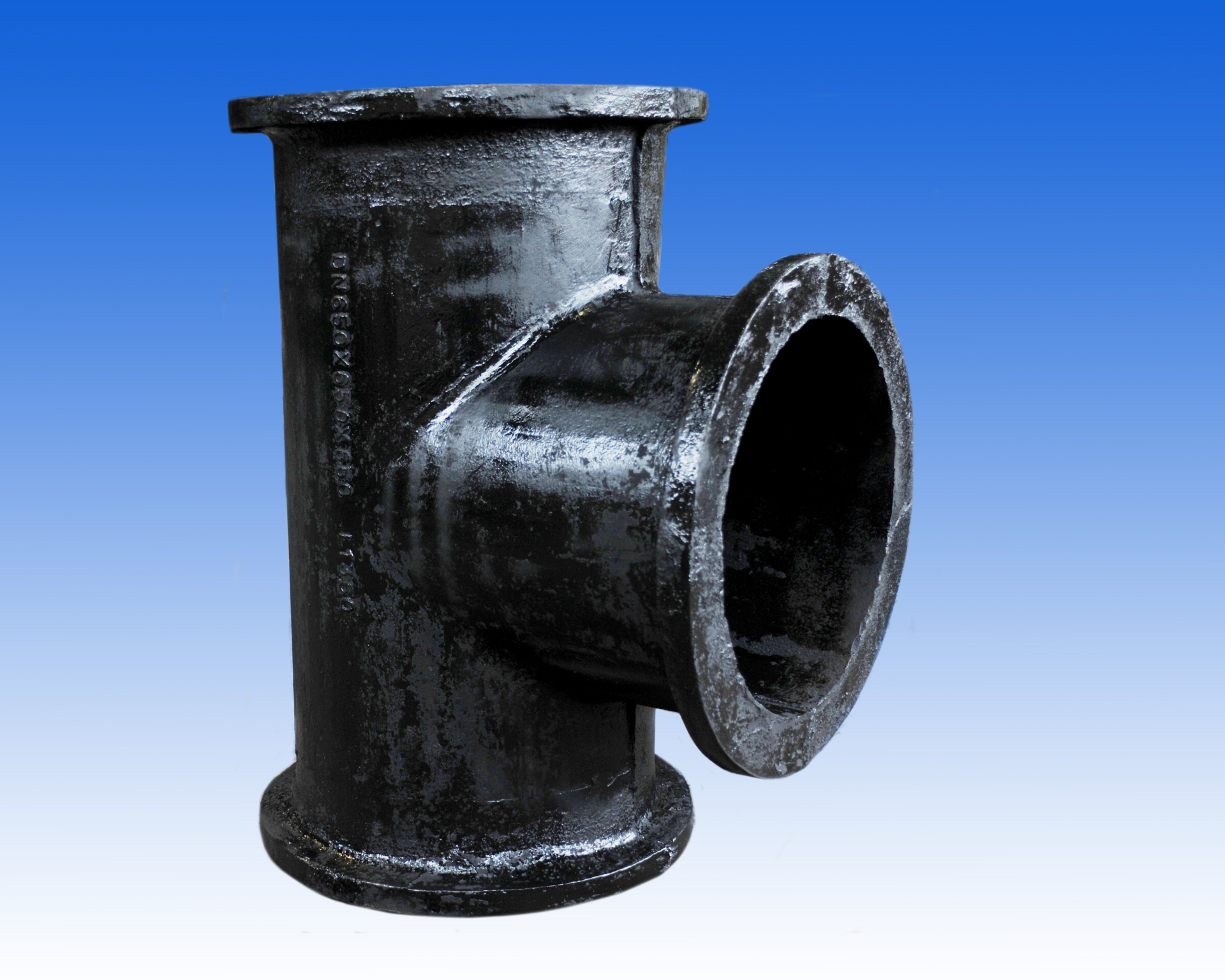

Acid-Resistant Cast Tee Pipe
Corrosion-resistant cast tee fitting for chemical process lines, slurry transfer and aggressive media service.
Crusher Wear Parts

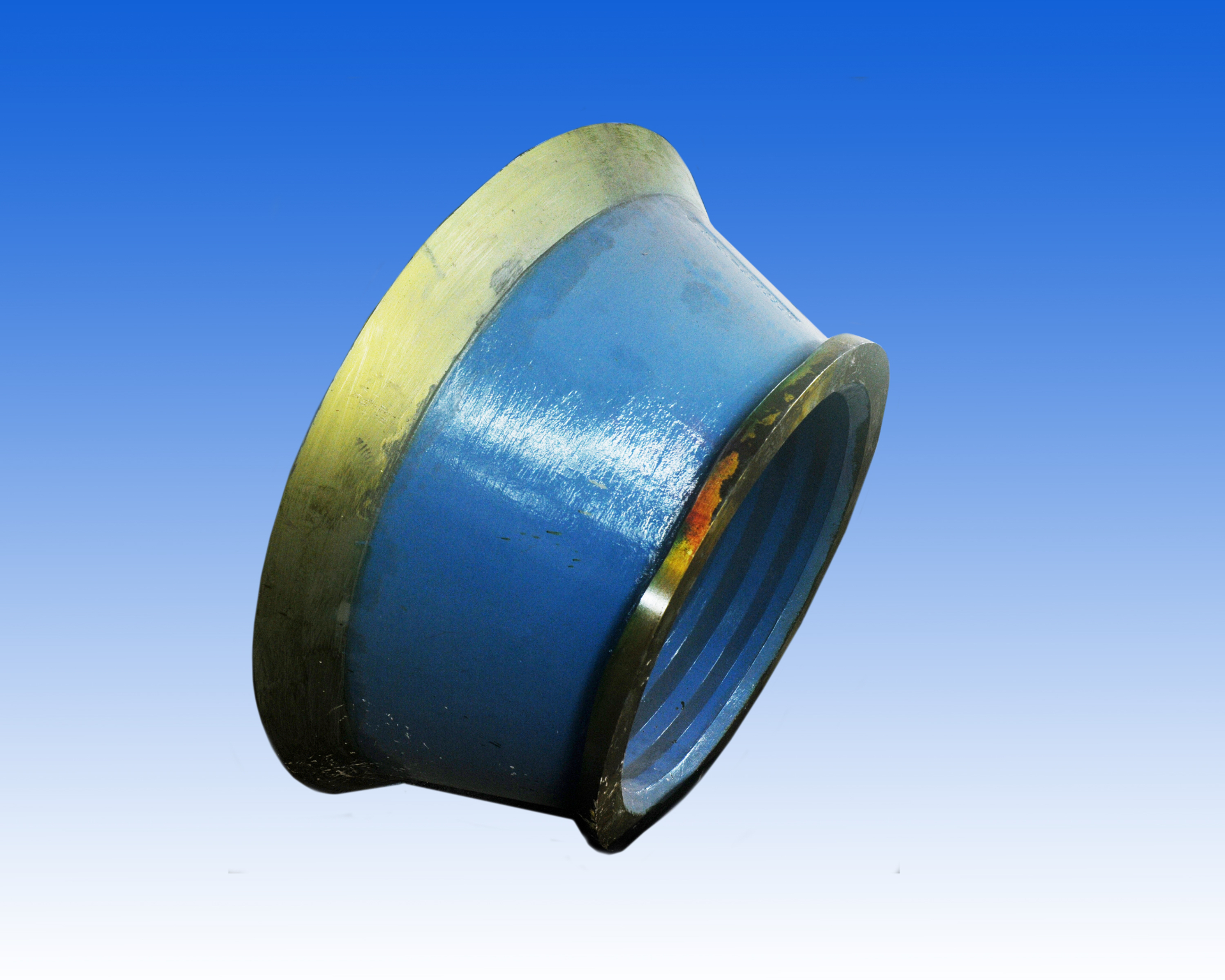

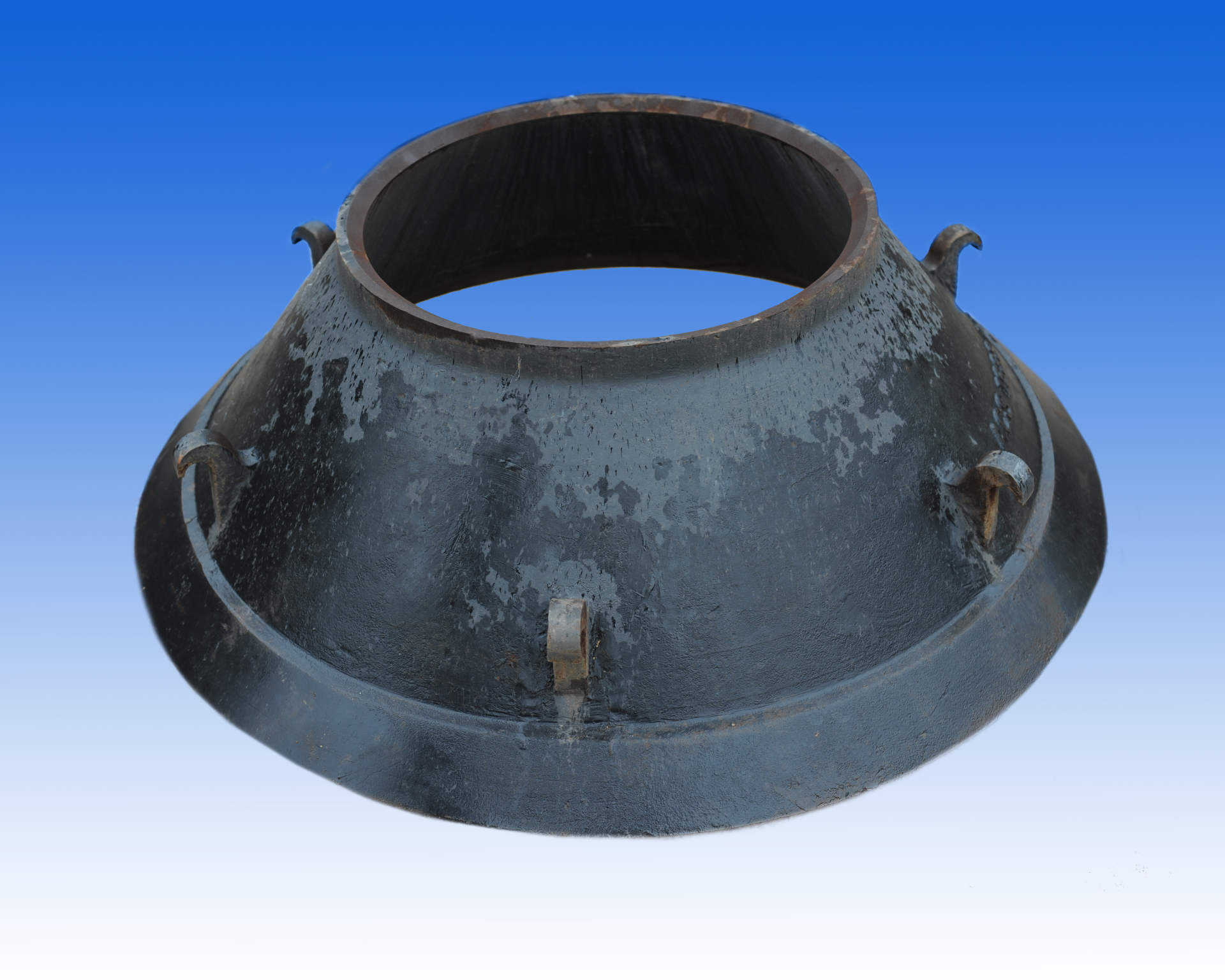

Cone Crusher Bowl Liner
Heavy cone crusher bowl liner / concave section cast for high-compression crushing chambers and long campaign life.
Slurry Pump Parts

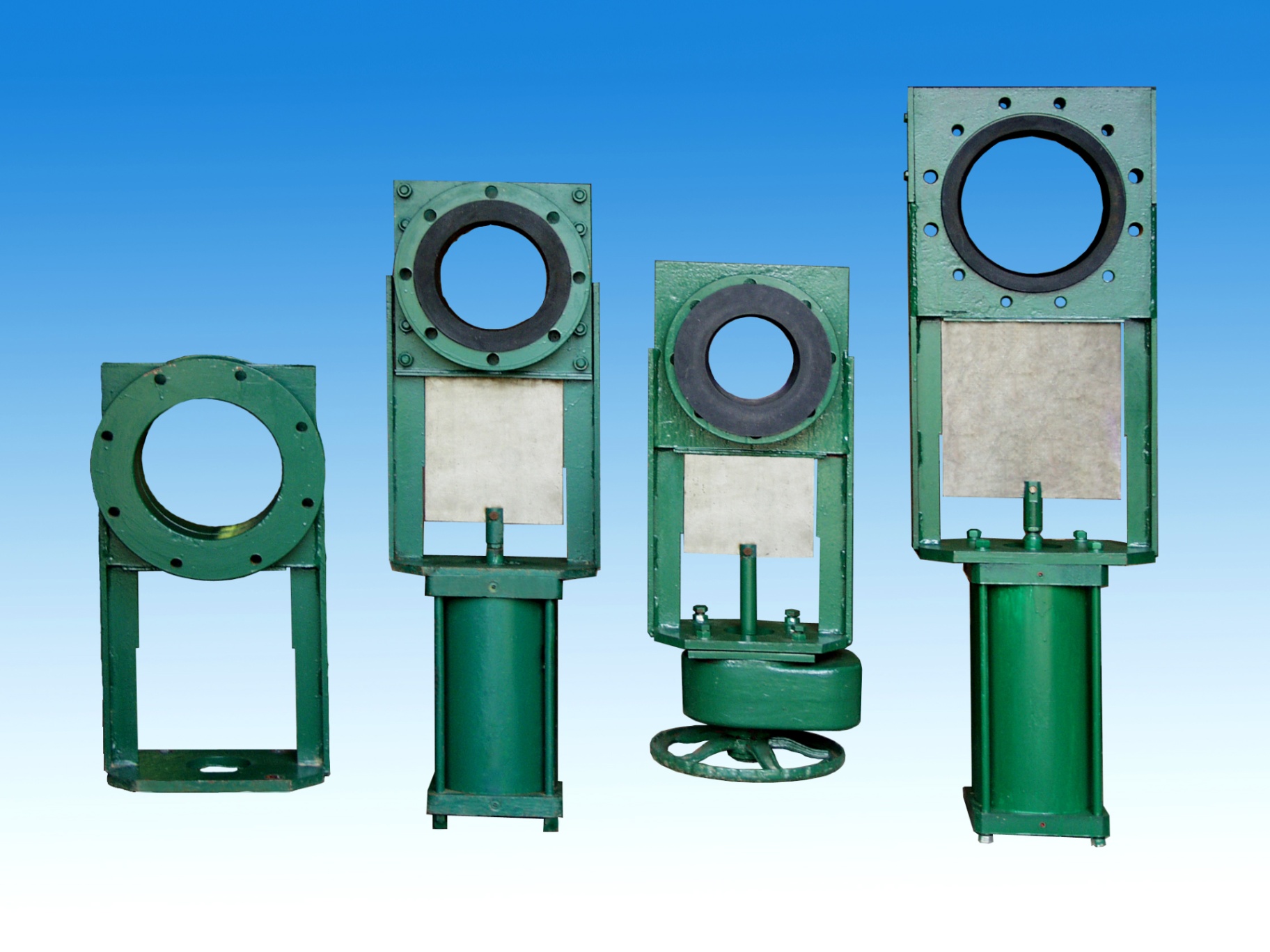

Pneumatic Slurry Knife Gate Valve
Pneumatically actuated slurry gate valves for abrasive pipelines, available in multiple bore sizes.
Mill Liners

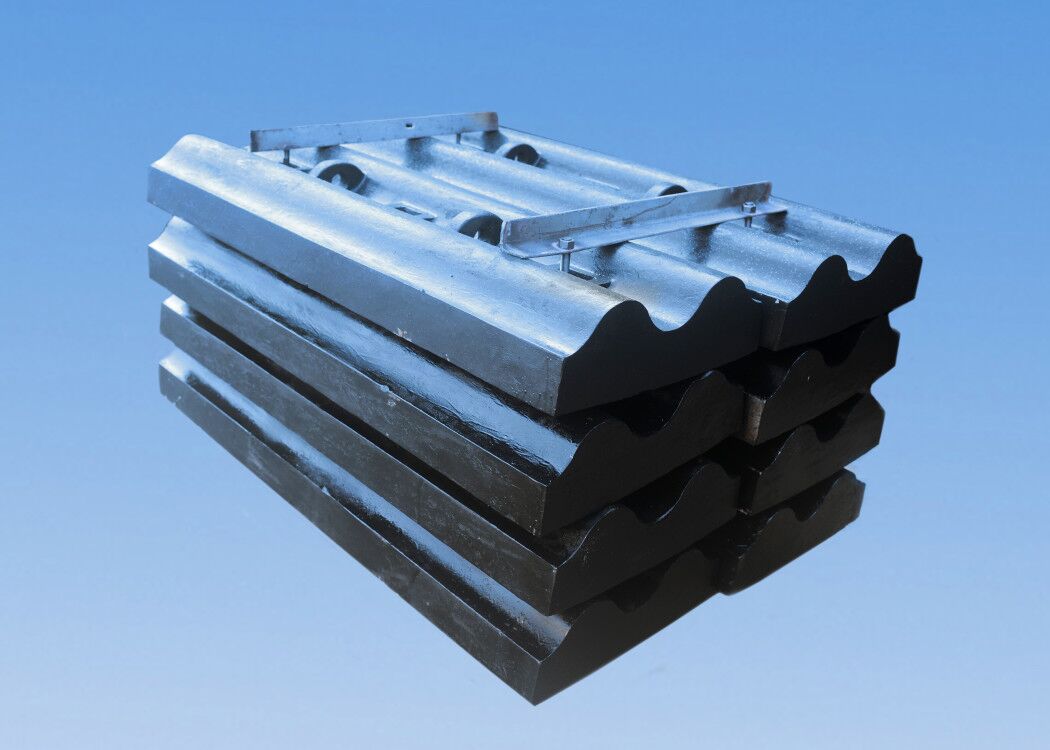

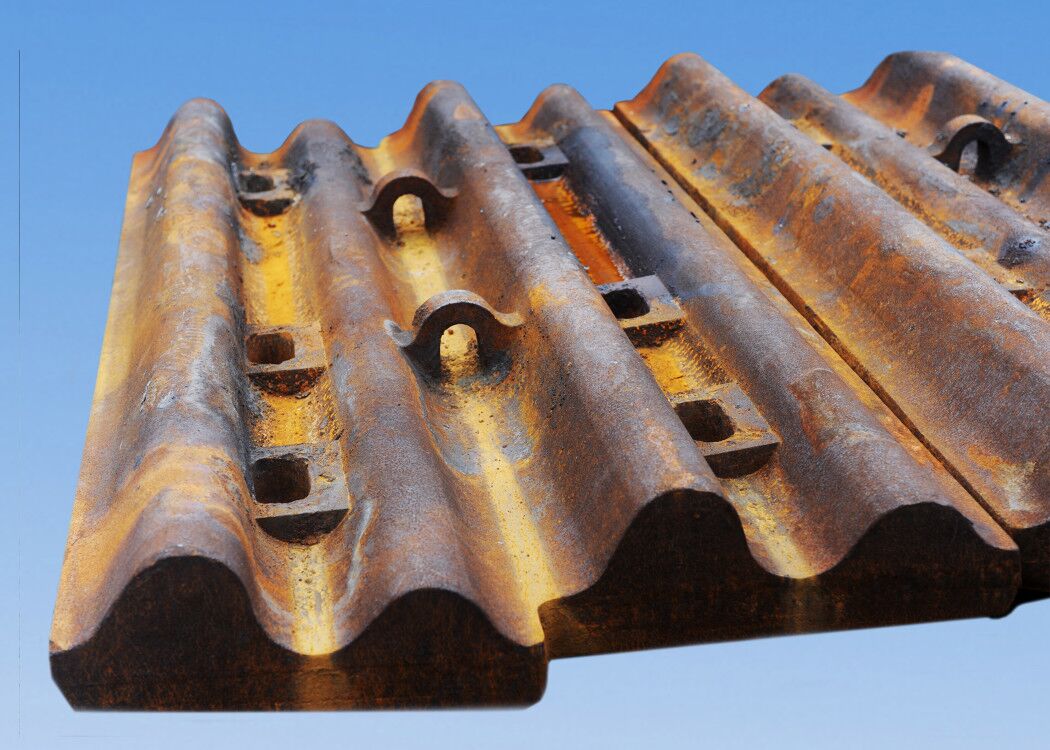

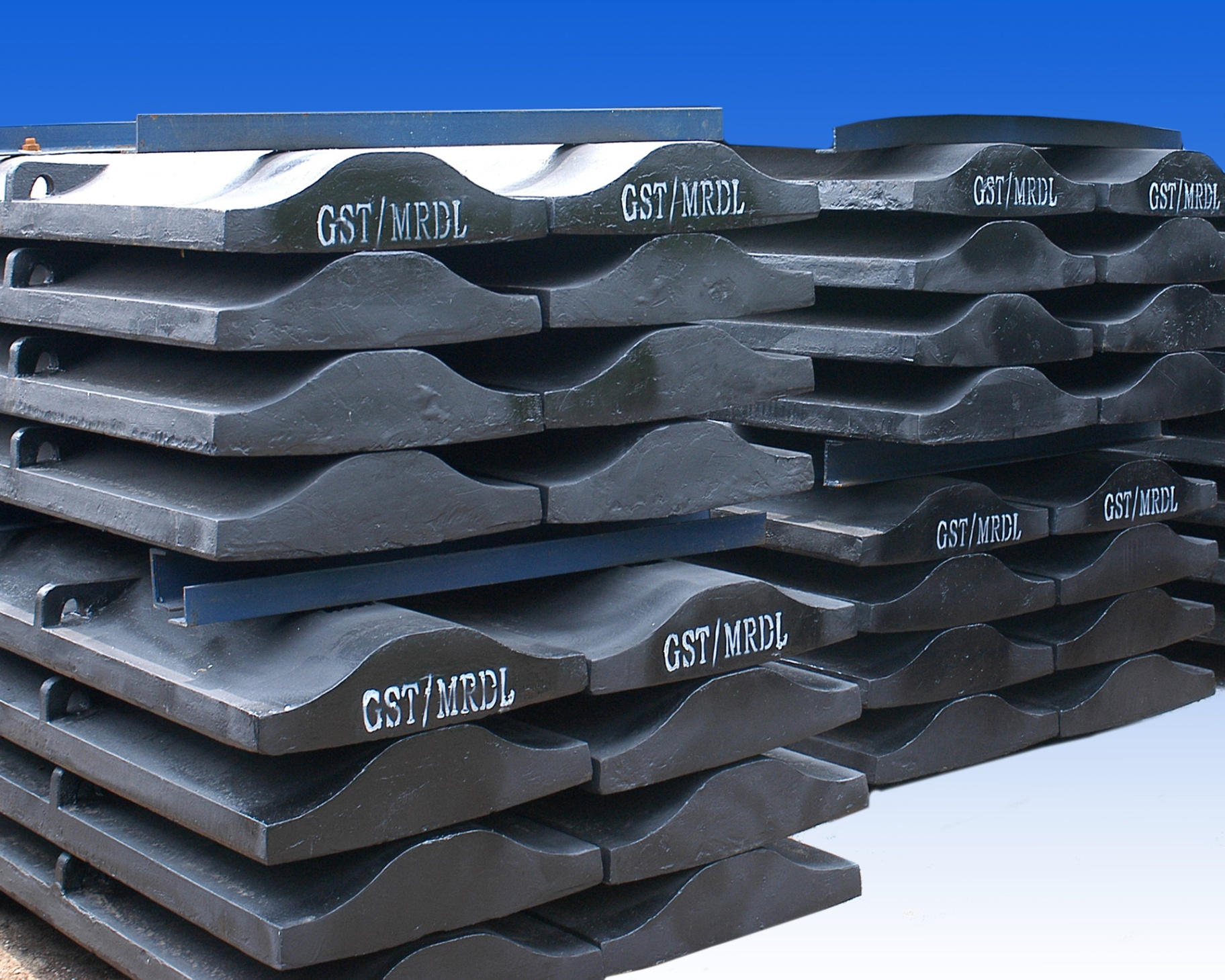

Ball Mill Liner Plates
Stacked wave-profile liner plates for ball mills, cast to control charge motion and maximize wear life.
Fasteners & Hardware

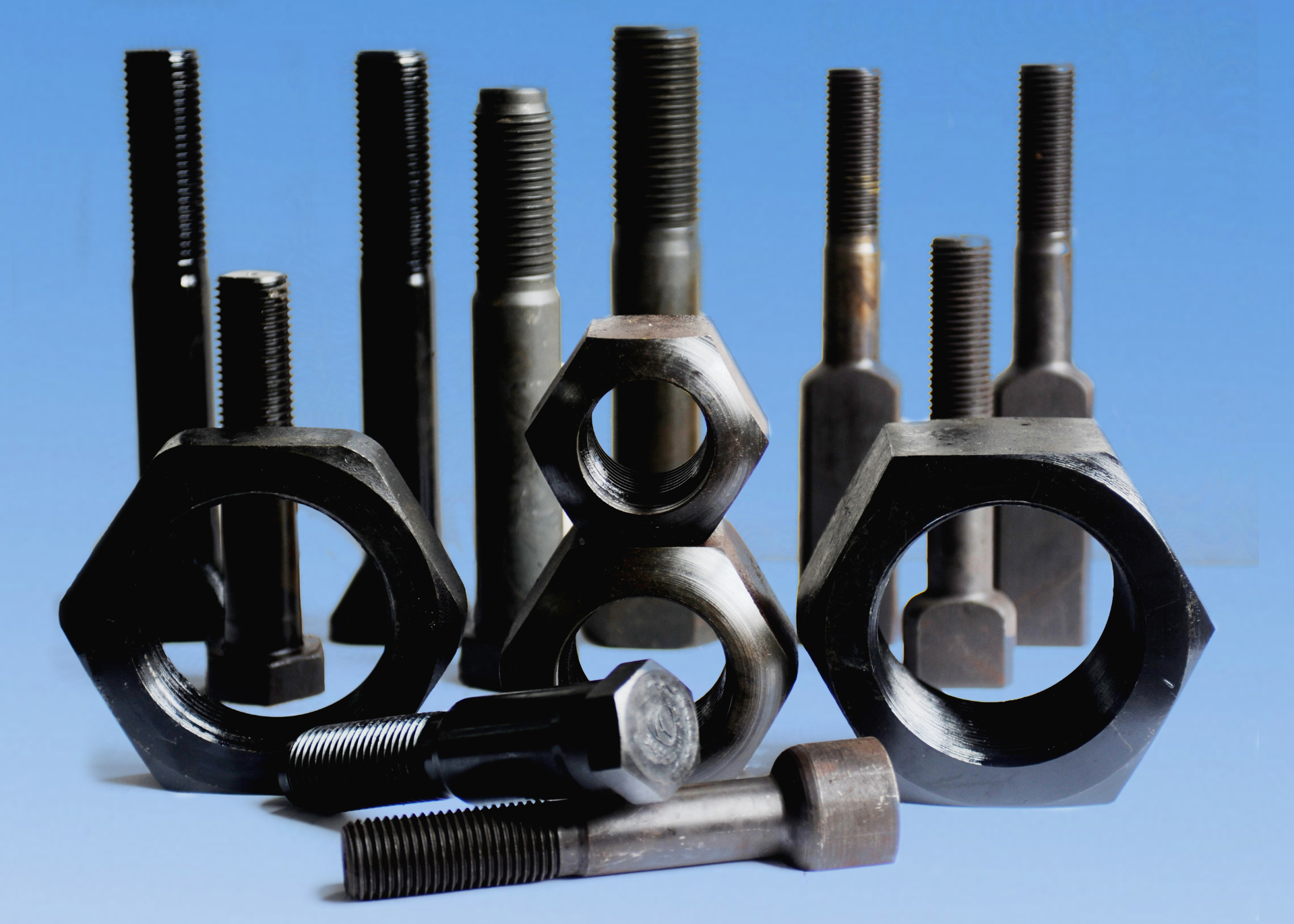

Mill Bolts & Hex Nuts
Large-format mill liner bolts and matching hex nuts, forged and machined for secure installation under vibration loads.
Large Cast Components

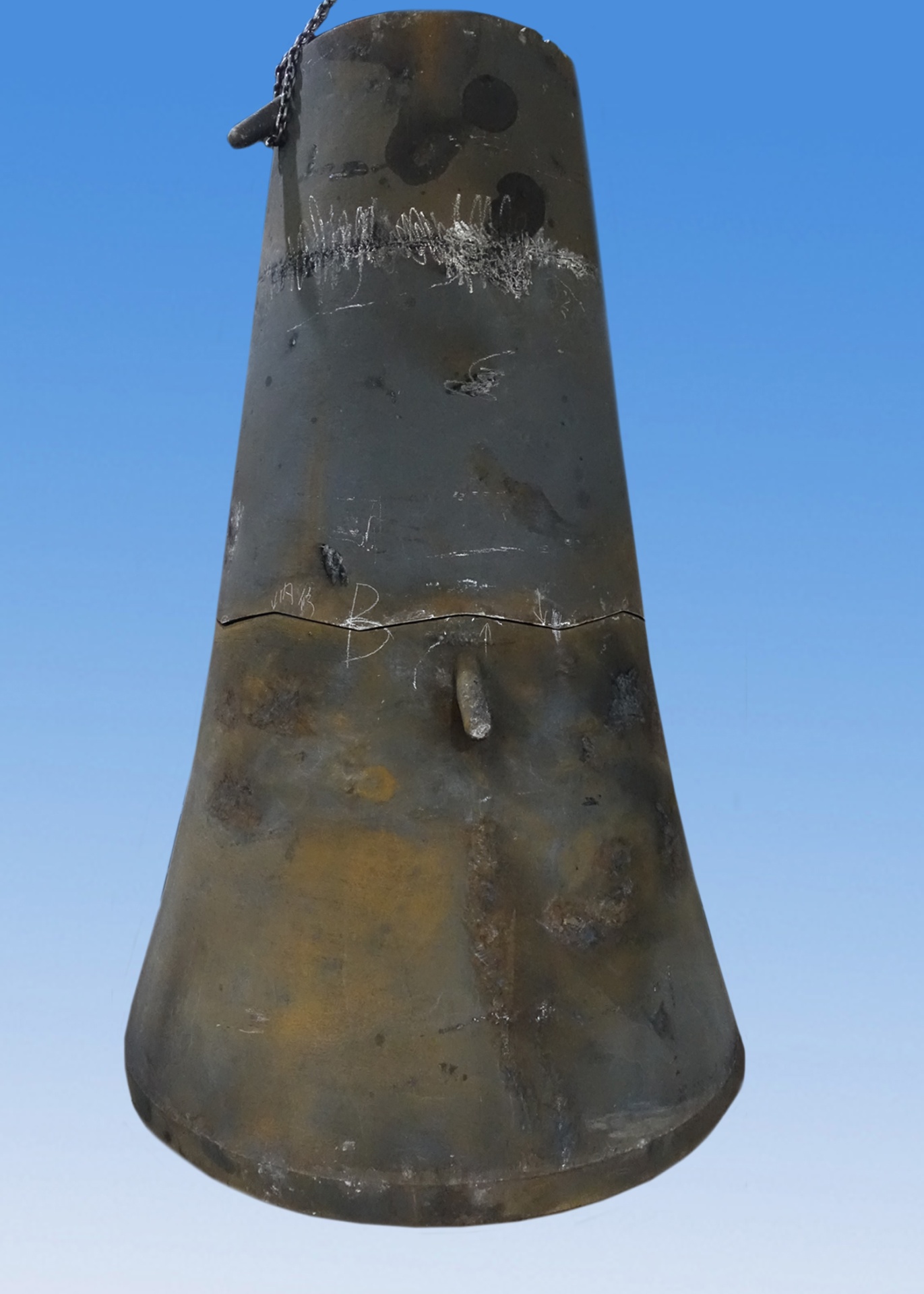

Forged Ball Head
Large forged conical ball head component for heavy mechanical assemblies and custom equipment fabrication.
Grinding Balls

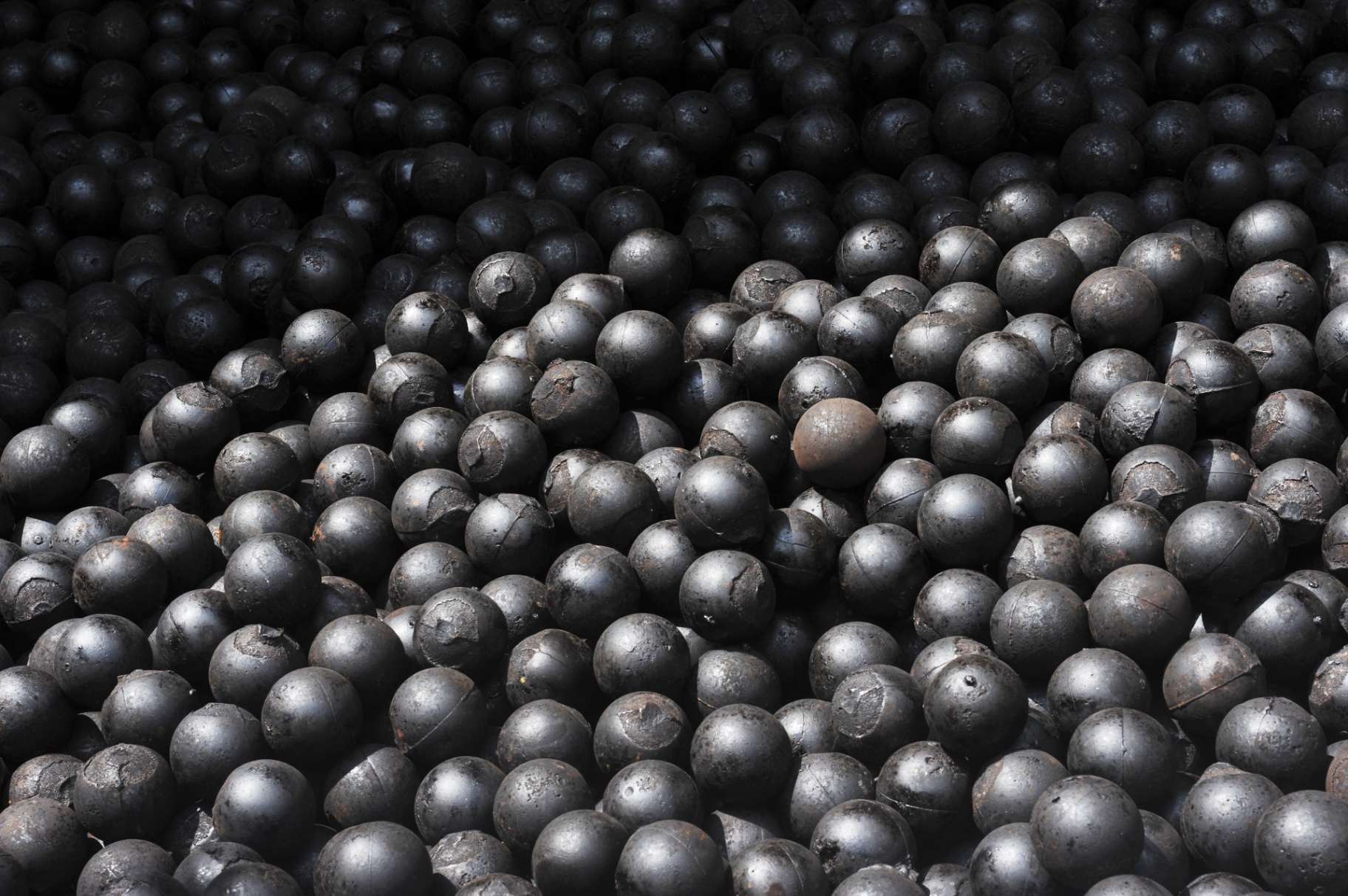

Heat-Treated High-Chrome Grinding Balls
Heat-treated high-chrome grinding balls offering stable hardness, low breakage rate and excellent wear performance.
Large Cast Components

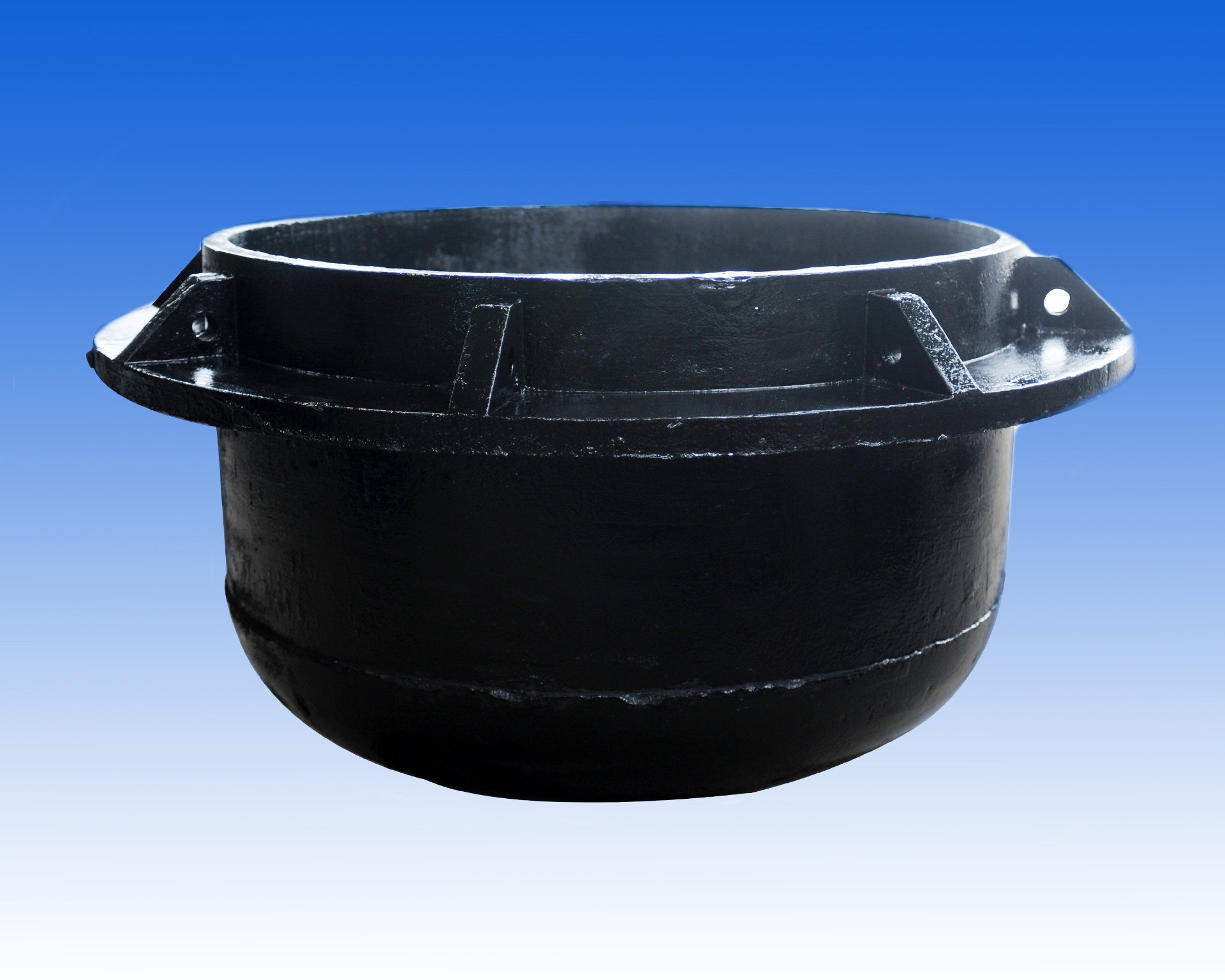

Cast Steel Crucible / Ladle
Heavy-section cast crucible with reinforced trunnion lugs for molten metal handling and slag pot duty.
Grinding Balls

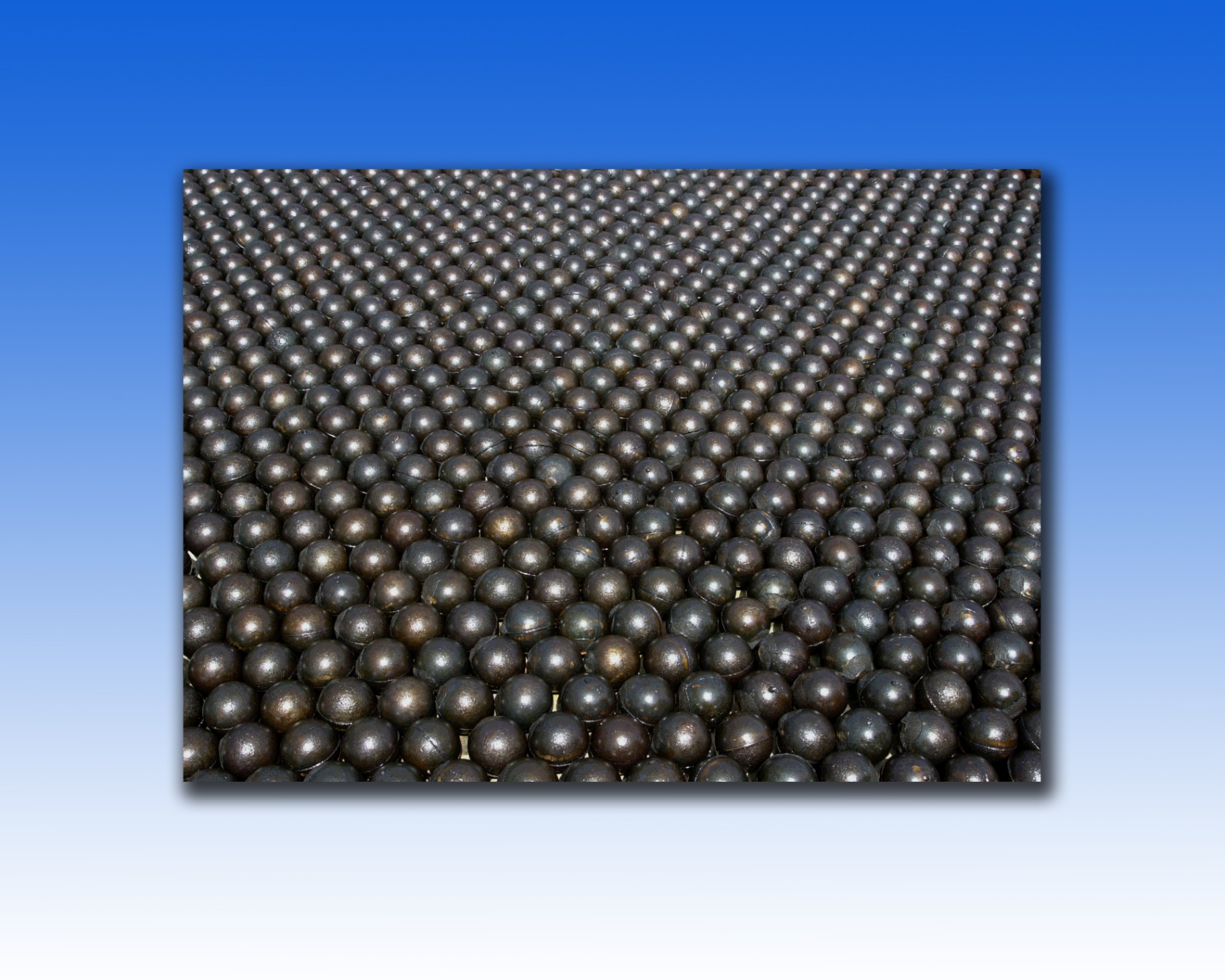

Grinding Steel Balls — Bulk Production
High-volume grinding media output, sized and quality-graded for ball mill and SAG mill charge.
Grinding Balls

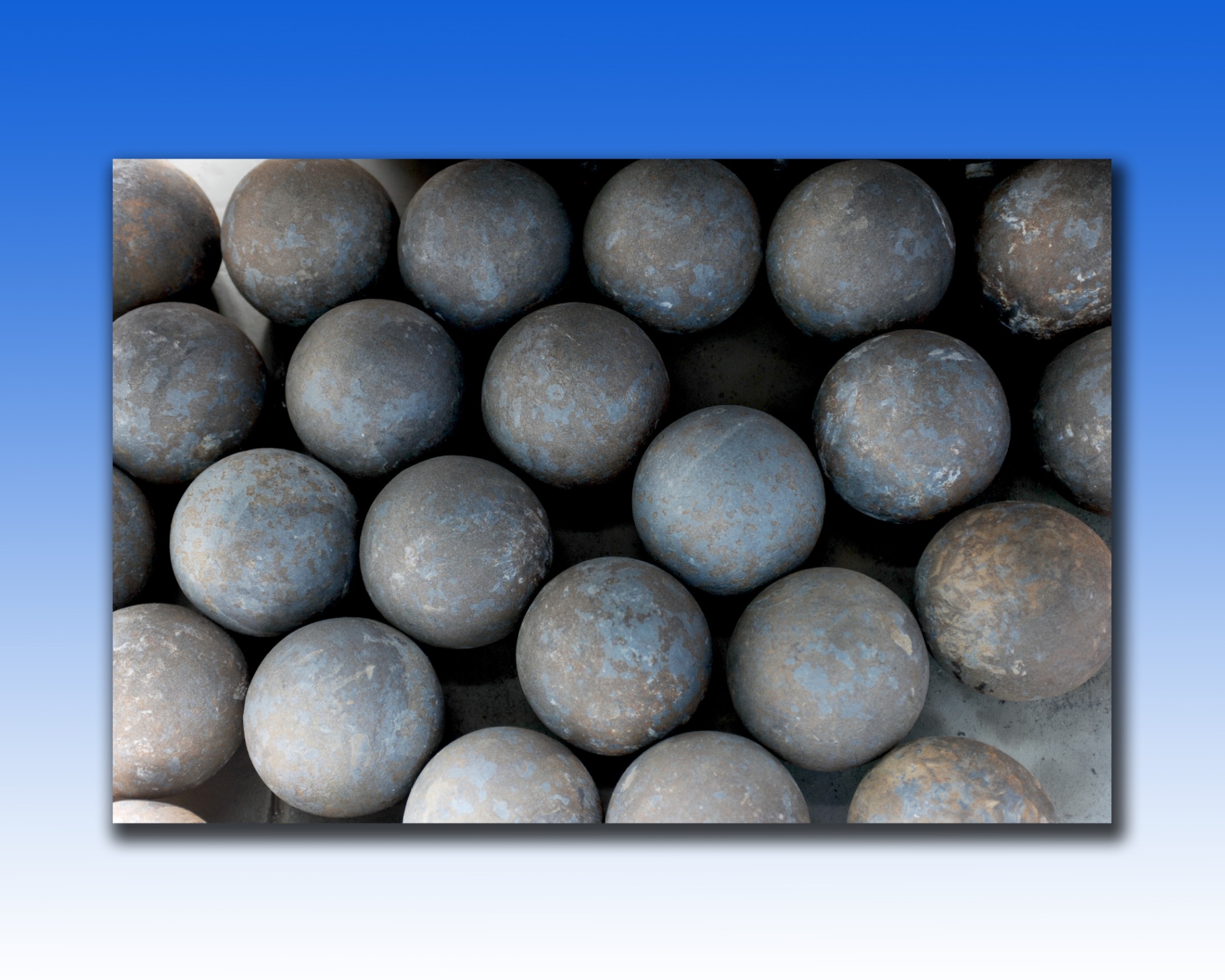

High-Chrome Cast Grinding Balls
High-chromium cast iron grinding balls with superior hardness and wear resistance for cement and mineral grinding.
Slurry Pump Parts

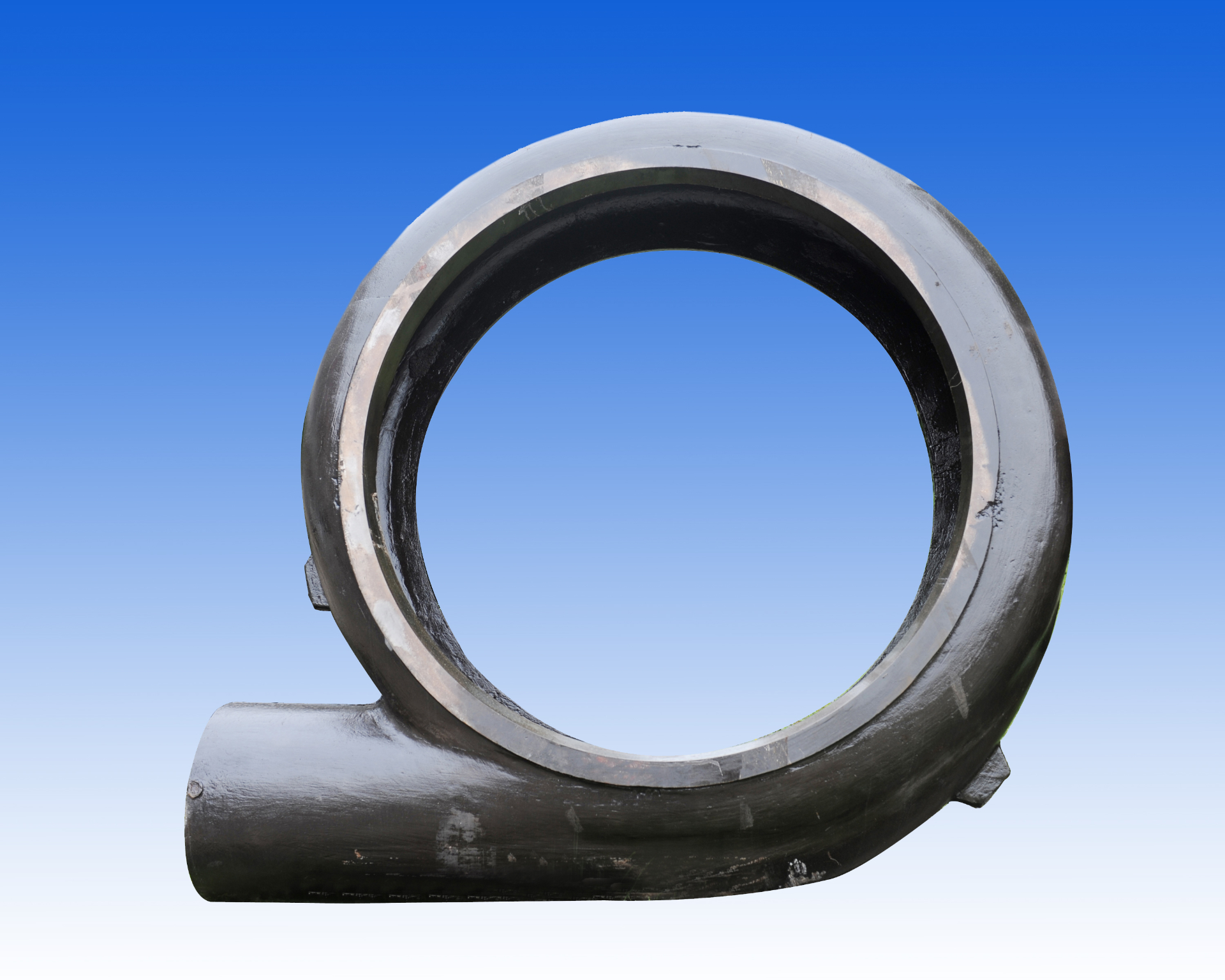

High-Chrome Slurry Pump Volute
High-chromium cast iron slurry pump casing built to resist abrasive and corrosive tailings service.
Mill Liners

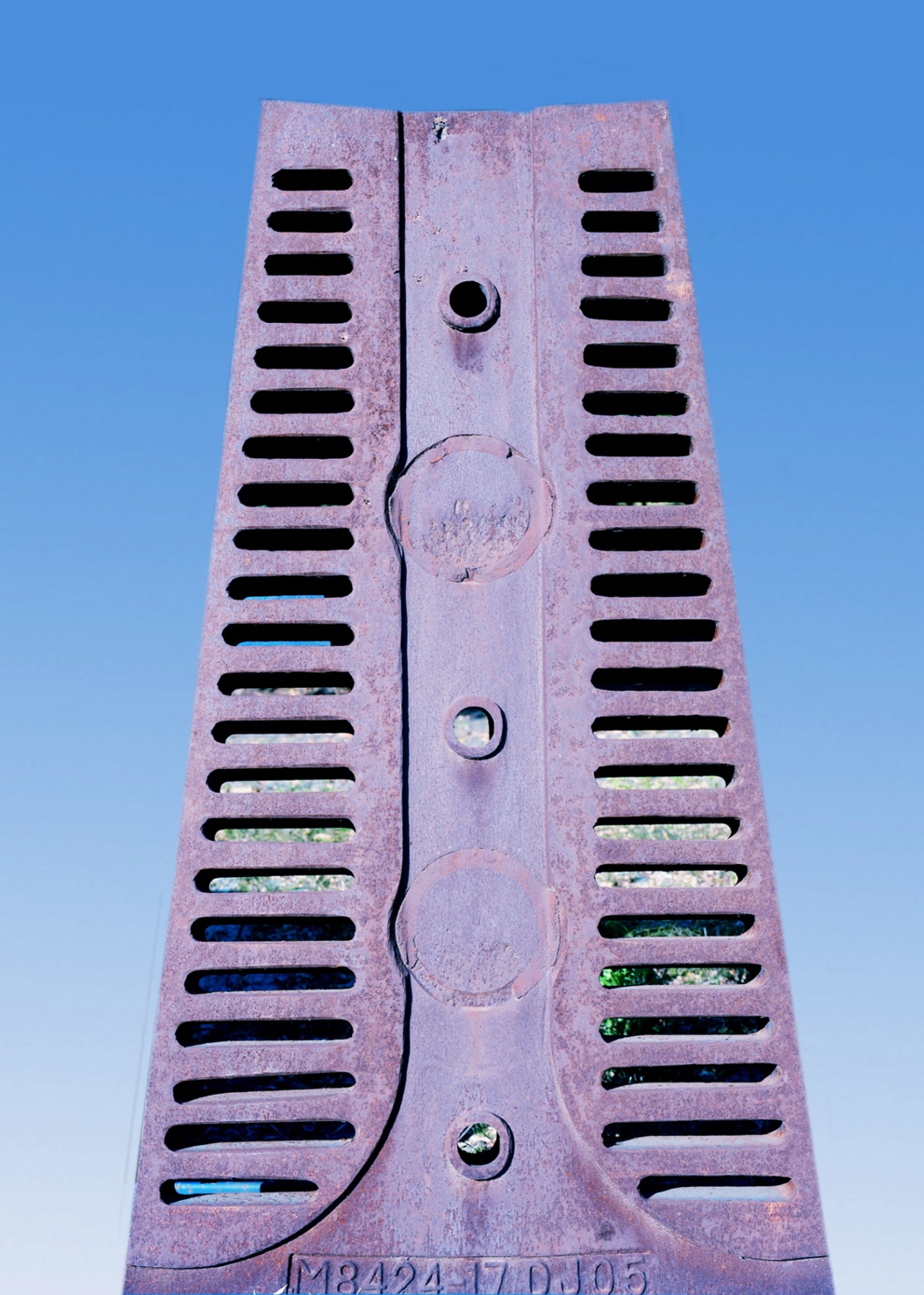

Mill Discharge Grate Plate (M8424-17DJ05)
Slotted discharge grate plate for ball / SAG mills, profiled for optimal pulp lifting and discharge.
Fasteners & Hardware

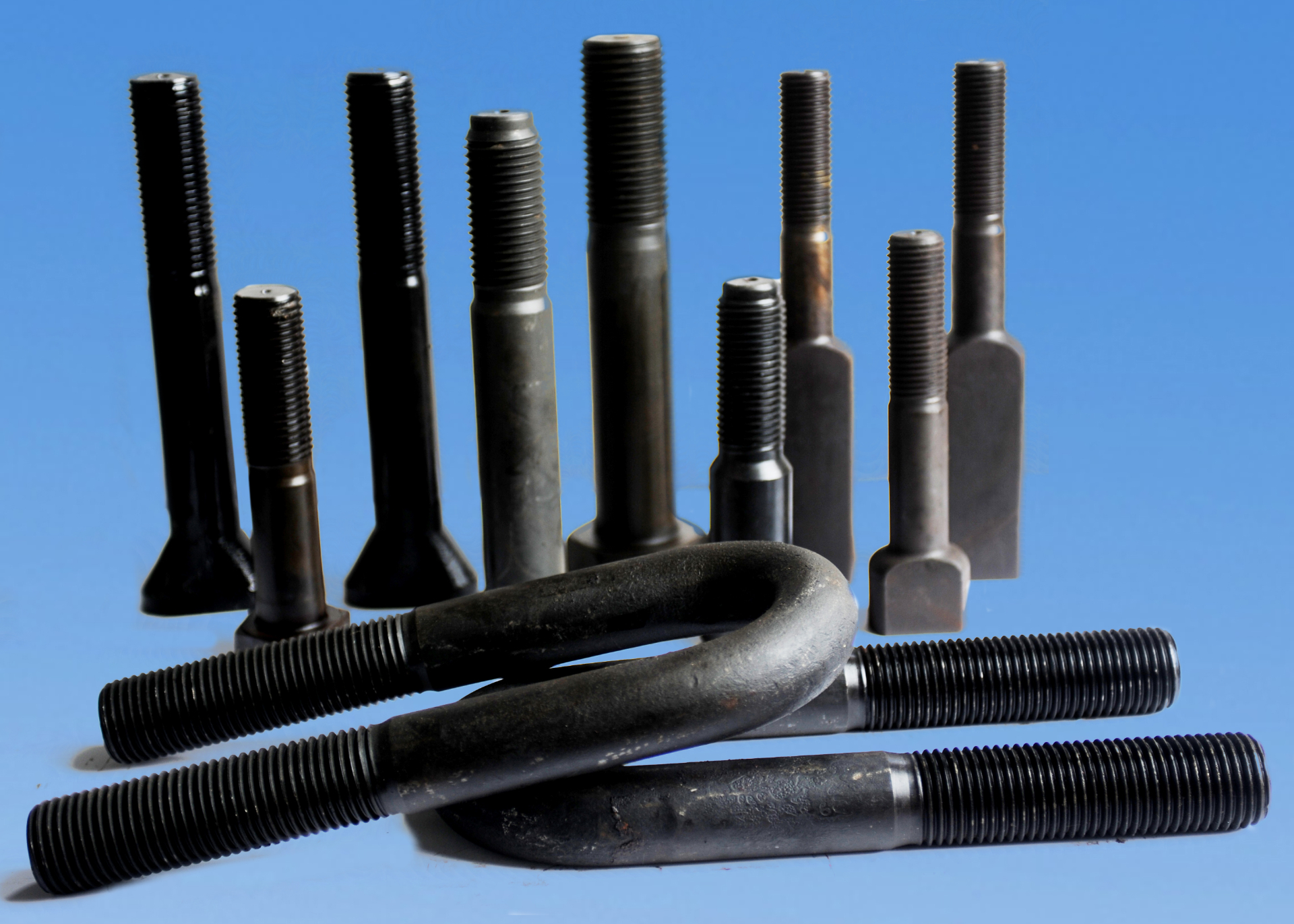

Liner Bolts, Studs & U-Bolts
Full range of high-tensile fasteners — square-head liner bolts, studs and U-bolts for mill and crusher assemblies.
Crusher Wear Parts

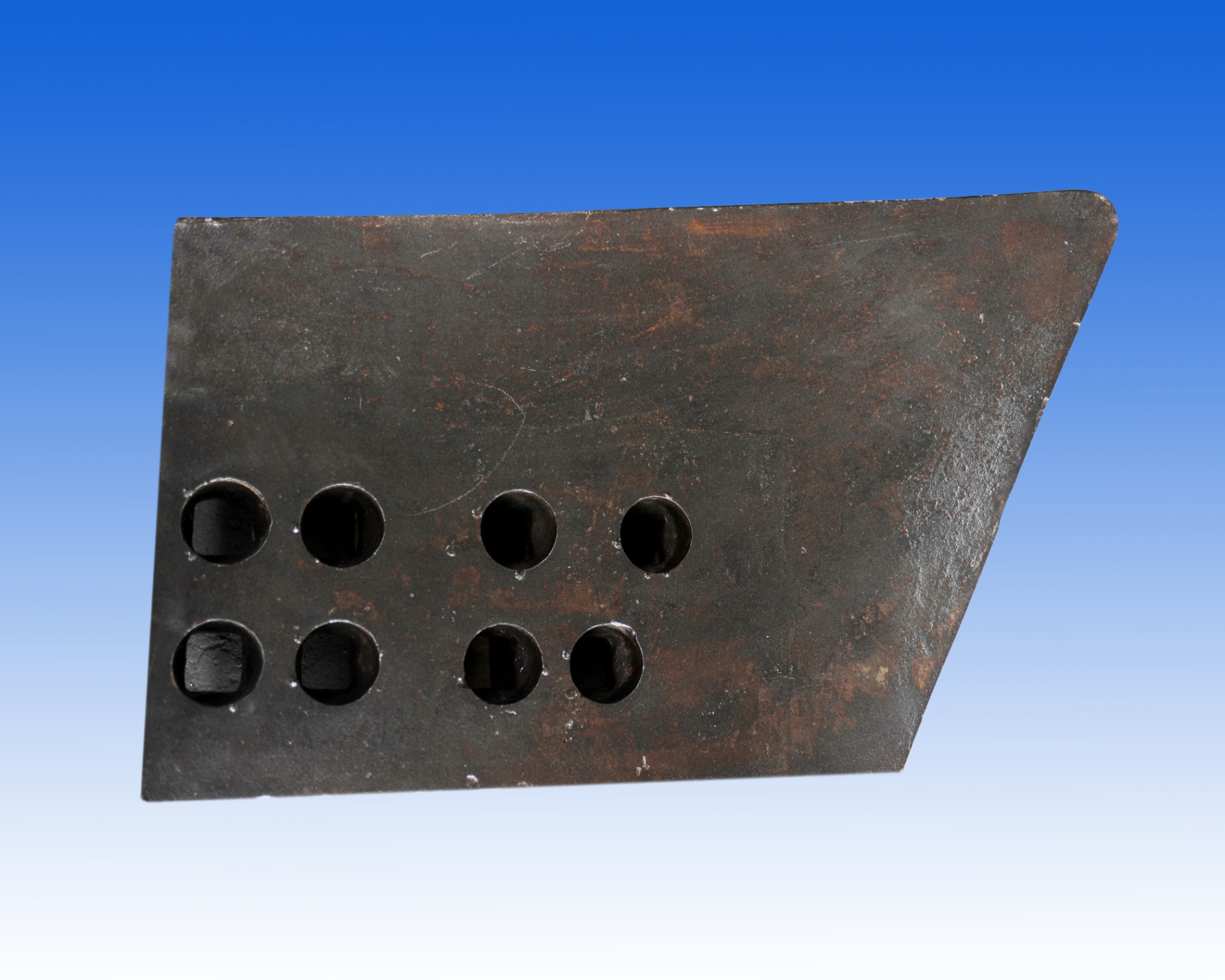

Bucket Side Cutter / Wing Shroud
Hardened wear blade protecting the side wall of excavator and loader buckets in heavy mining duty.
Large Cast Components

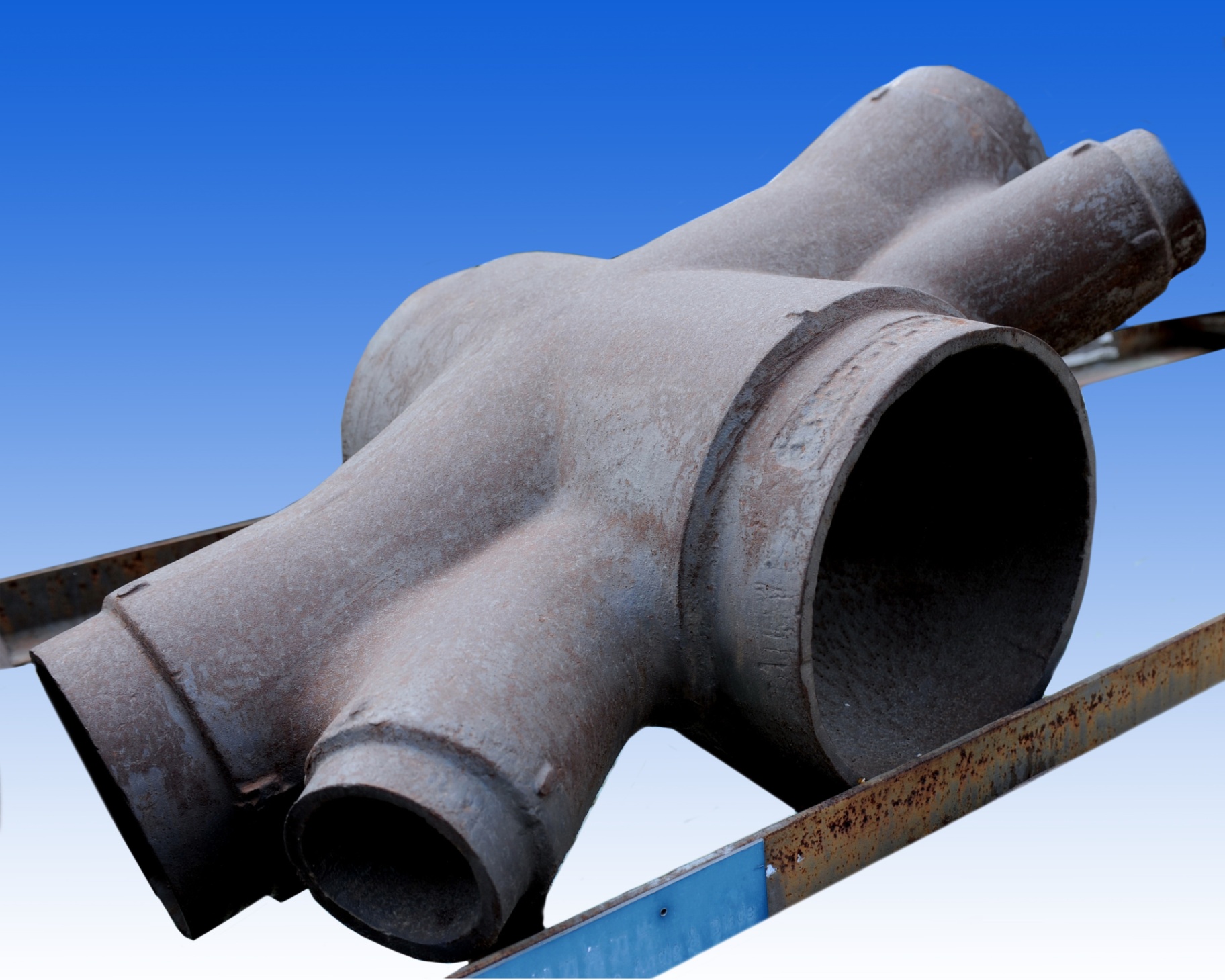

Heavy Cast Pipe Manifold / Cross Fitting
Multi-port cast pipe fitting for high-pressure slurry and process piping in mineral processing plants.
Mining Support Equipment

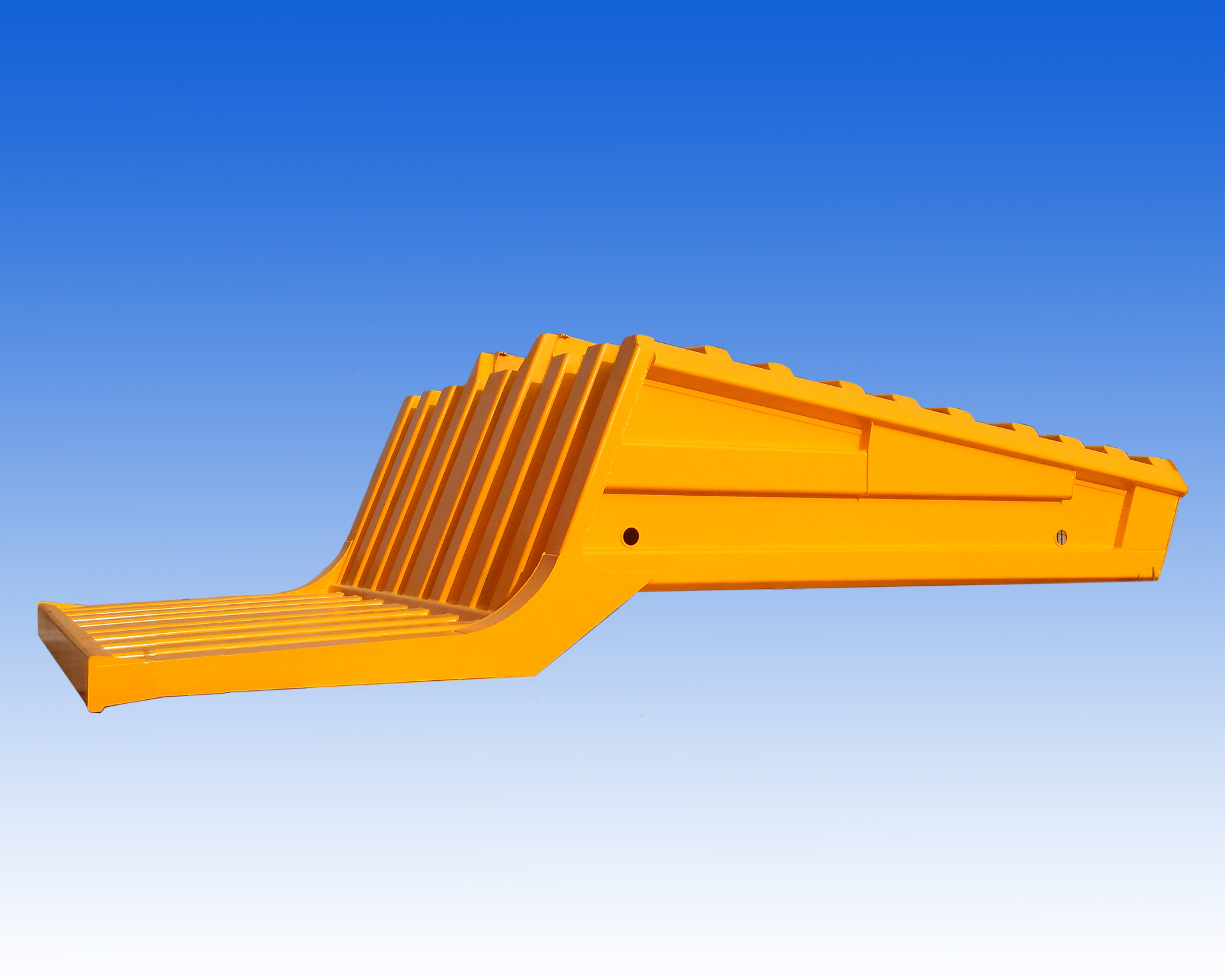

Mining Haul Truck Body
Fabricated heavy-duty dump body for off-highway mining trucks, with curved floor for optimal load discharge.
Mill Liners

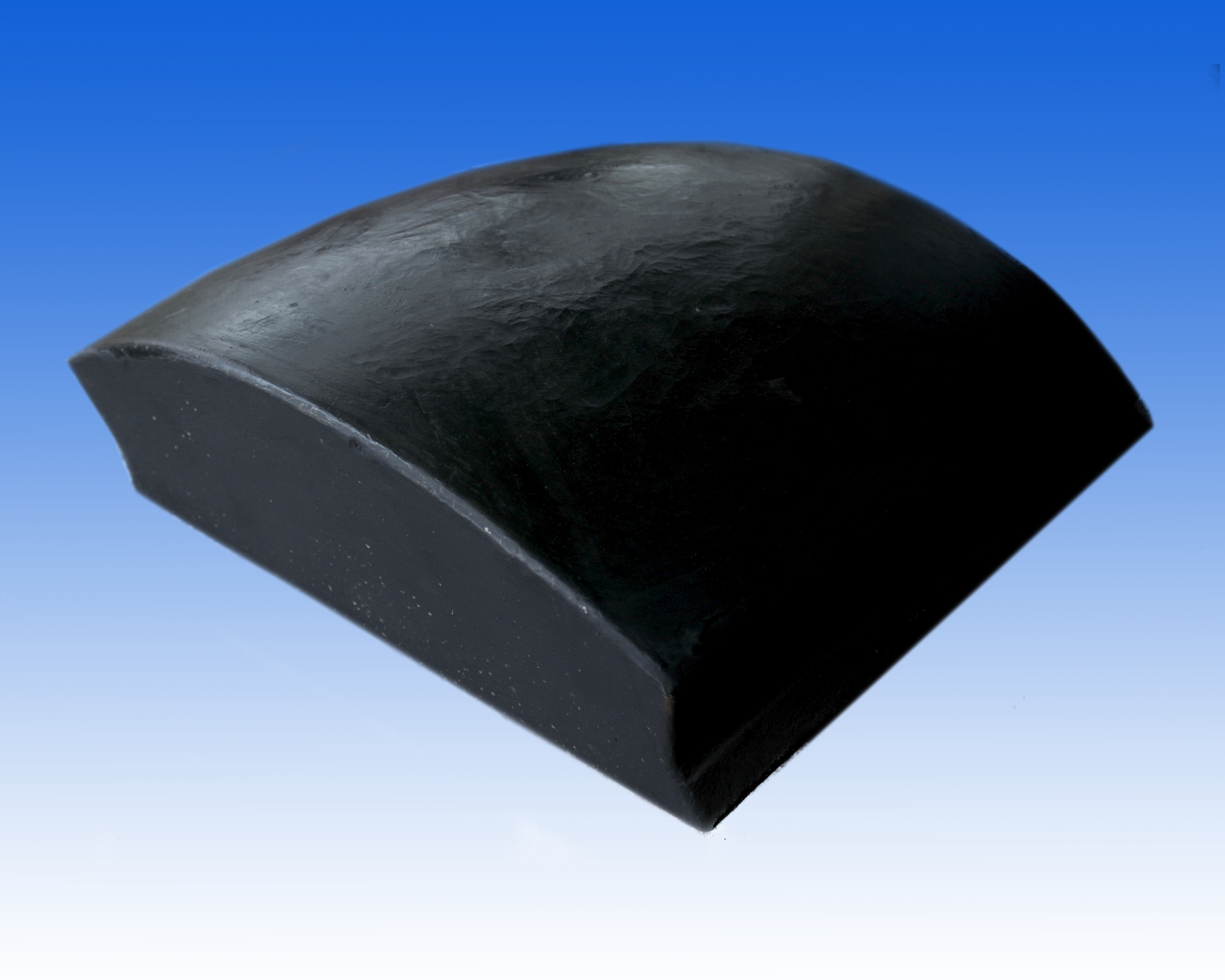

Vertical Mill Liner Segment
Wear-resistant curved liner segment for vertical roller mills, cast in high-chrome alloy for extended service life.
Mining Support Equipment

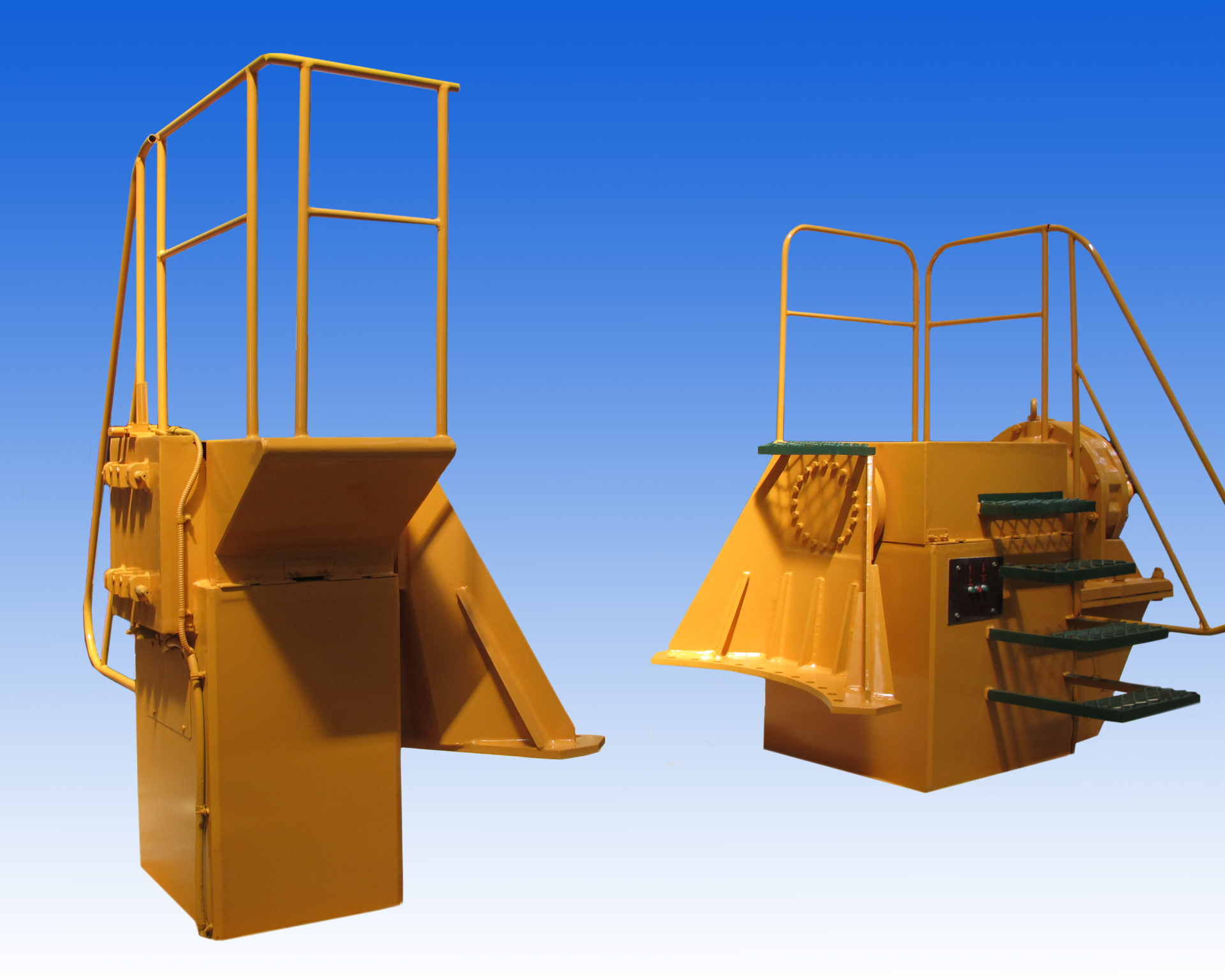

Electric Wheel Motor Turnover Machine
General-purpose turnover fixture used for safe positioning and maintenance of electric wheel motor assemblies.
Mining Support Equipment

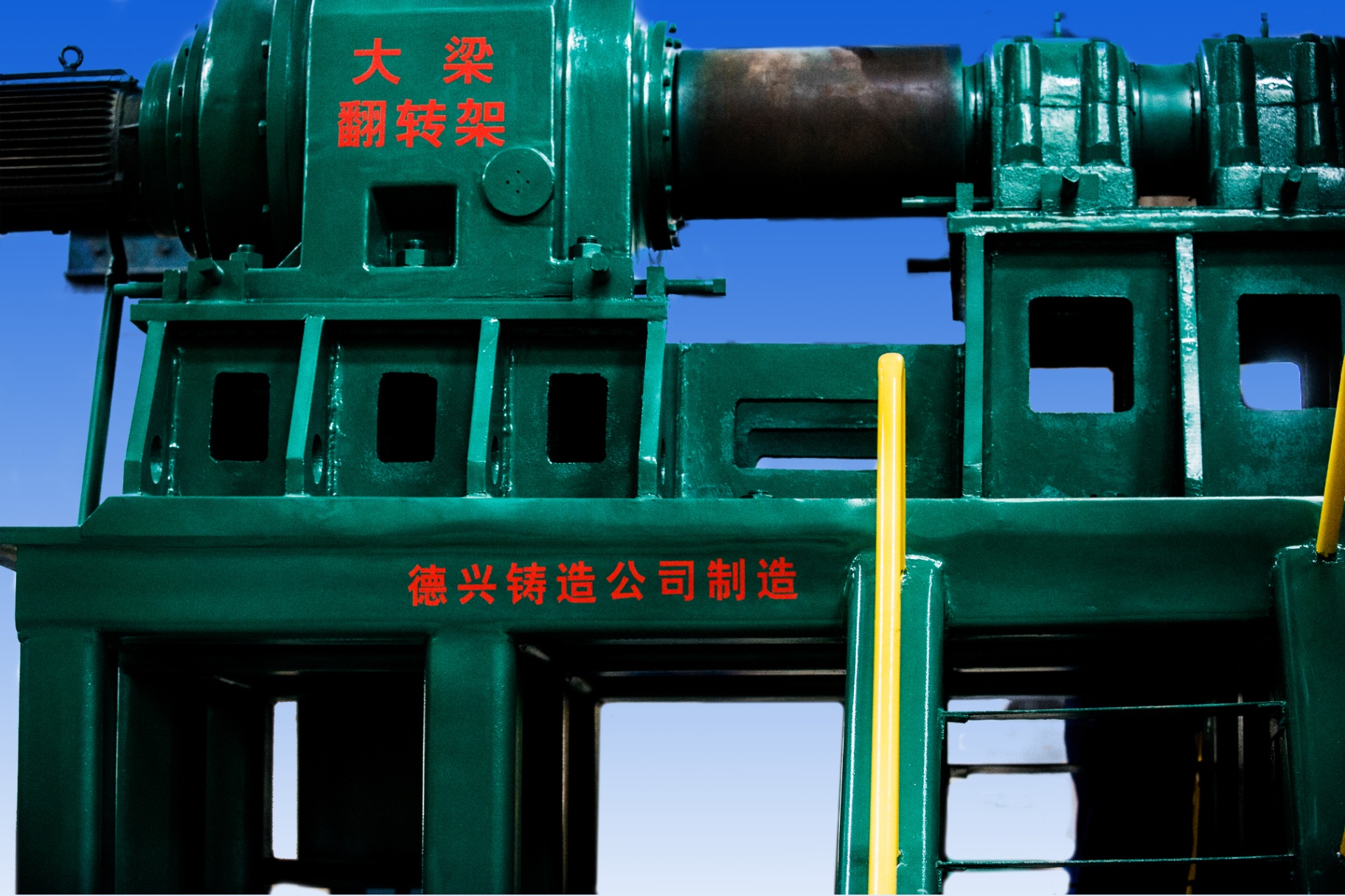

Truck Main Frame Turnover Stand
Heavy-duty turnover stand for electric wheel truck main frame repair, built for controlled rotation during overhaul.
Mining Support Equipment

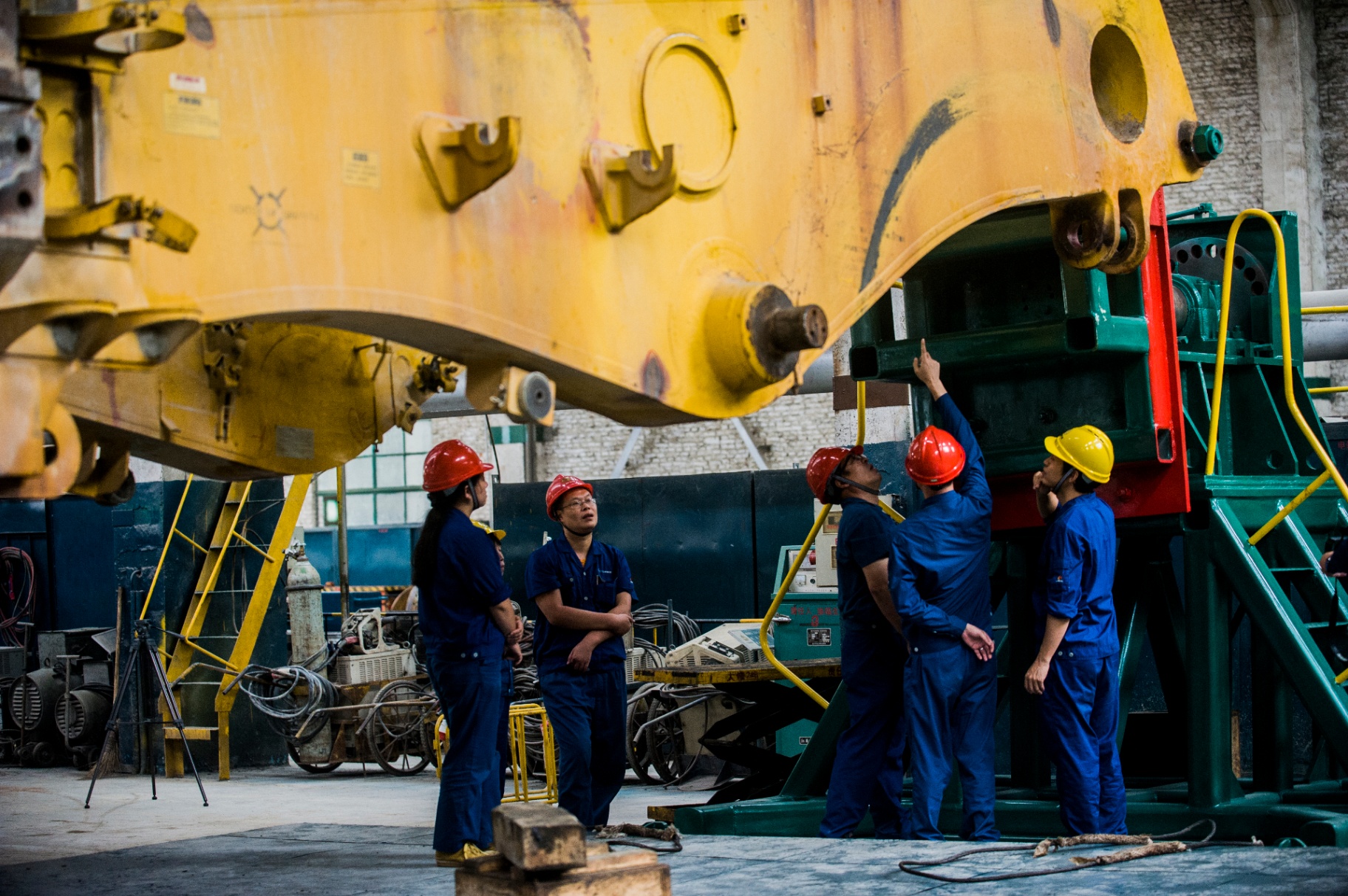

Main Frame Turnover Stand — In Service
Workshop installation photo showing the main frame turnover system supporting haul-truck structural repair work.
Industrial Components

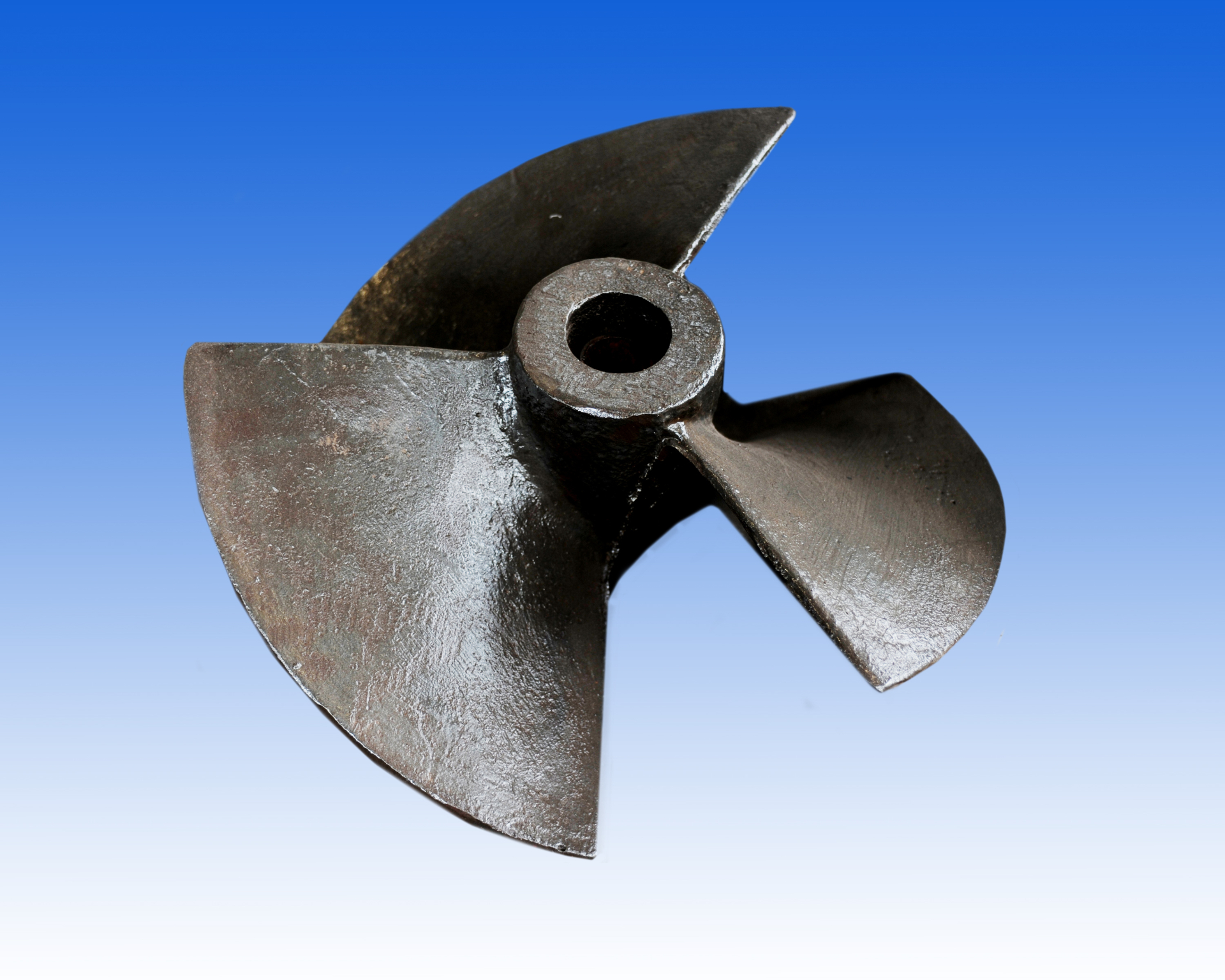

Motor Impeller Blade
Cast impeller blade component for industrial motor and pumping applications, machined at the hub for secure mounting.
Industrial Components

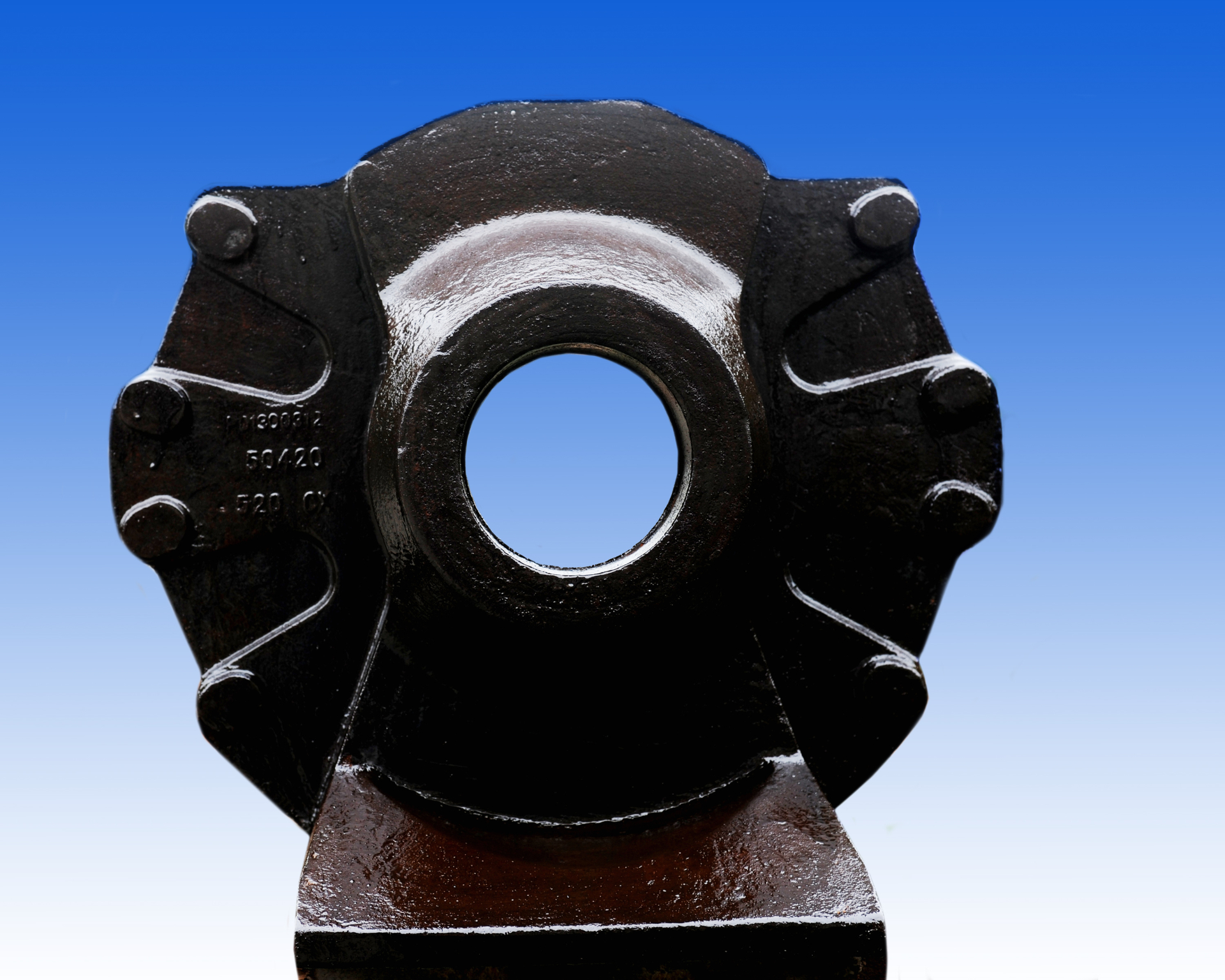

Motor Bearing Seat
Robust cast bearing seat with reinforced mounting ears for motor drive systems operating in heavy industrial service.
Mill Liners

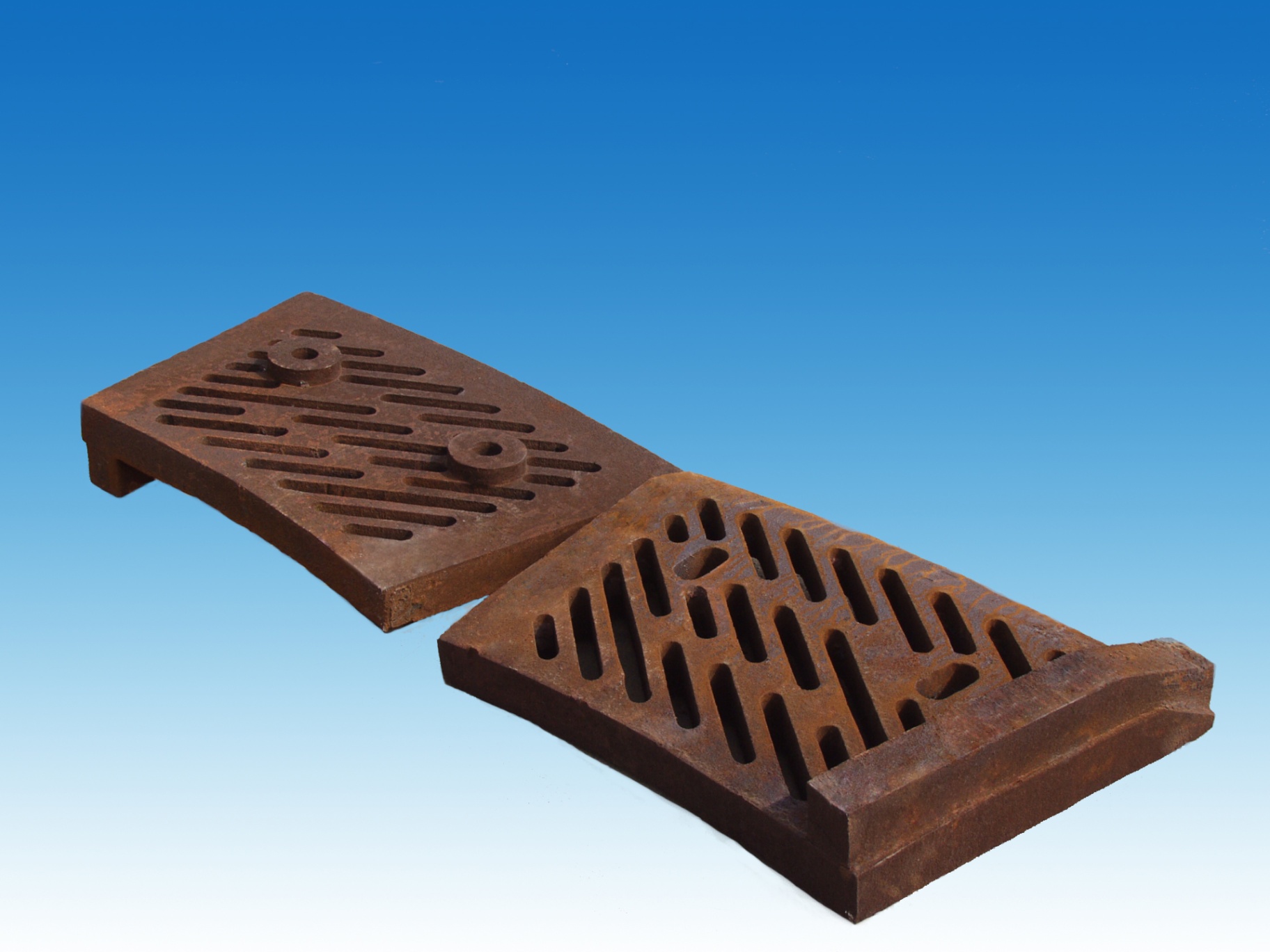

Mill End Liner Plate
End liner plates with slotted discharge openings, designed for ore flow control and wear resistance in grinding mills.
Grinding Balls
Forged Steel Grinding Balls
Bulk forged grinding balls produced for SAG and ball milling circuits requiring impact toughness and wear life.
Grinding Balls
Forged Grinding Balls — Close View
Close-up view of forged steel balls showing consistent shape and surface condition for mineral grinding duty.
Mill Liners

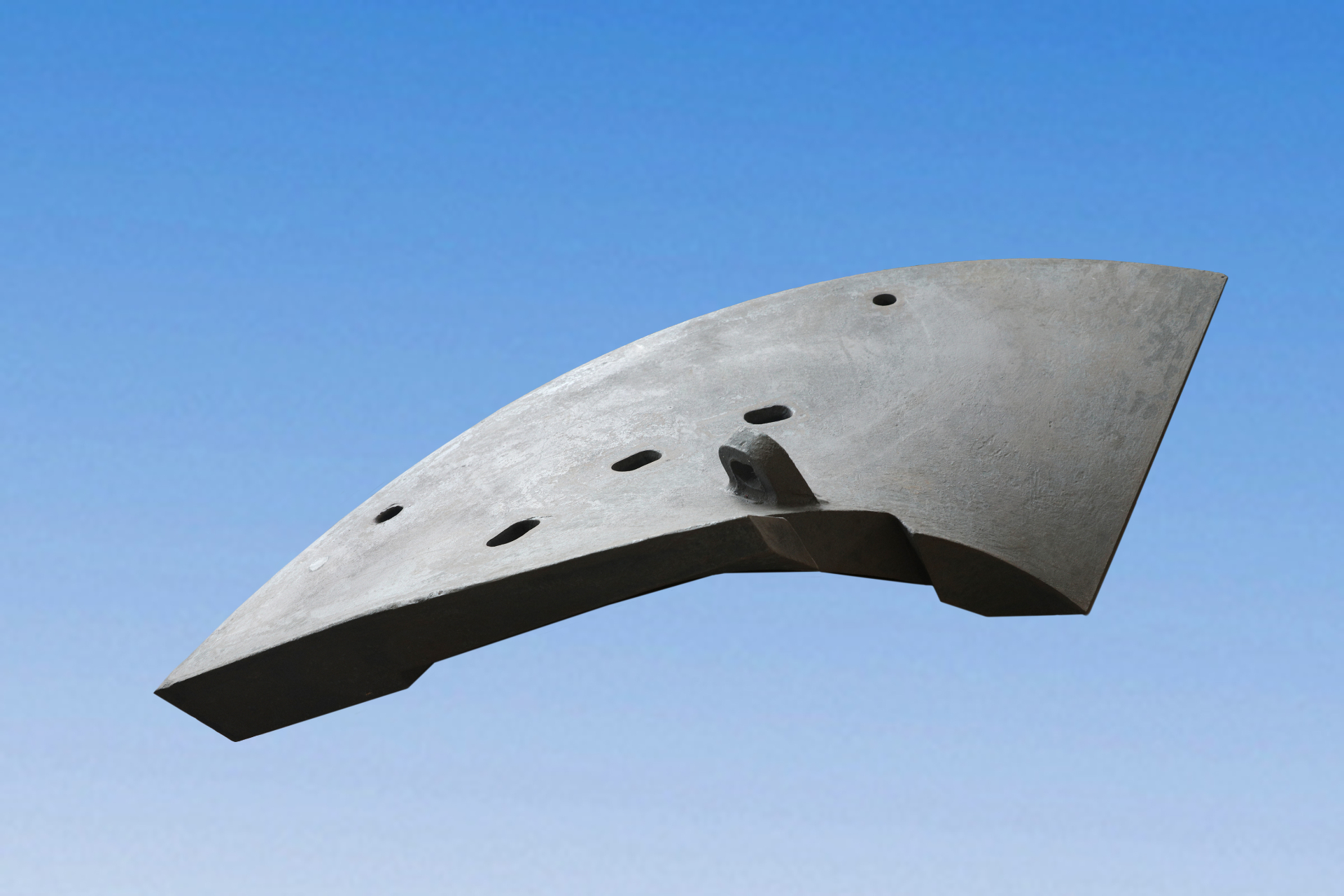

Curved Mill Liner Segment
Curved liner casting for mill interior protection, featuring lifting lug and bolt holes for efficient installation.
Mill Liners

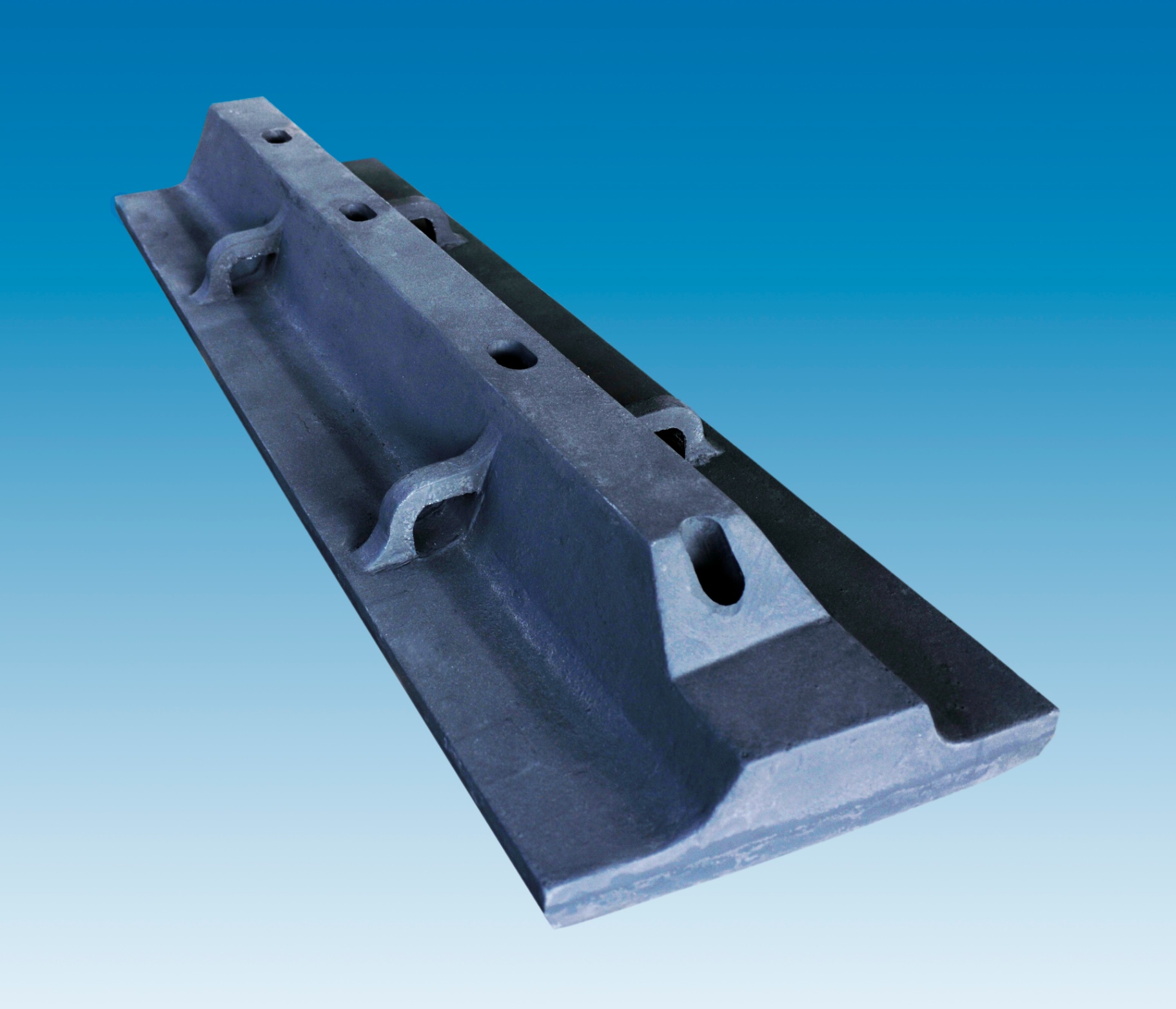

SAG Mill Shell Liner 3472
Heavy-section SAG mill shell liner casting with integrated lifter profile and machined bolt seats for secure shell mounting.
Crusher Wear Parts

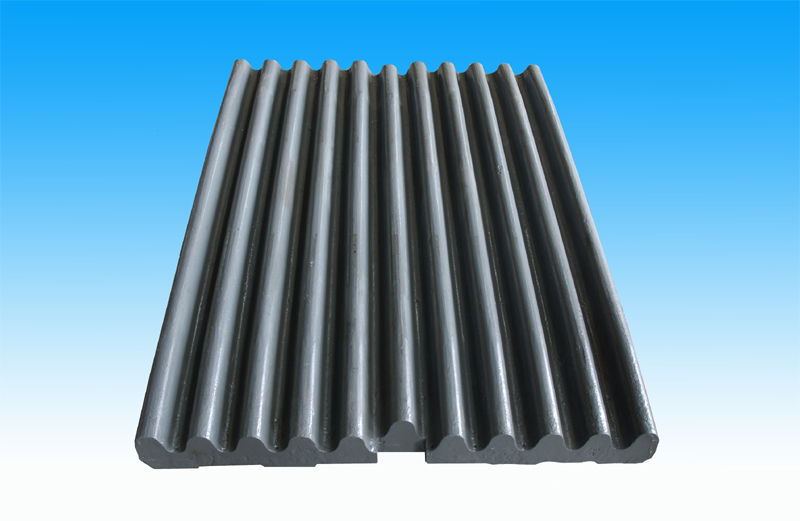

Corrugated Jaw / Tooth Plate
Cast high-manganese jaw plate with corrugated tooth profile for primary crushing duty in jaw crushers.
Electric Shovel Assemblies

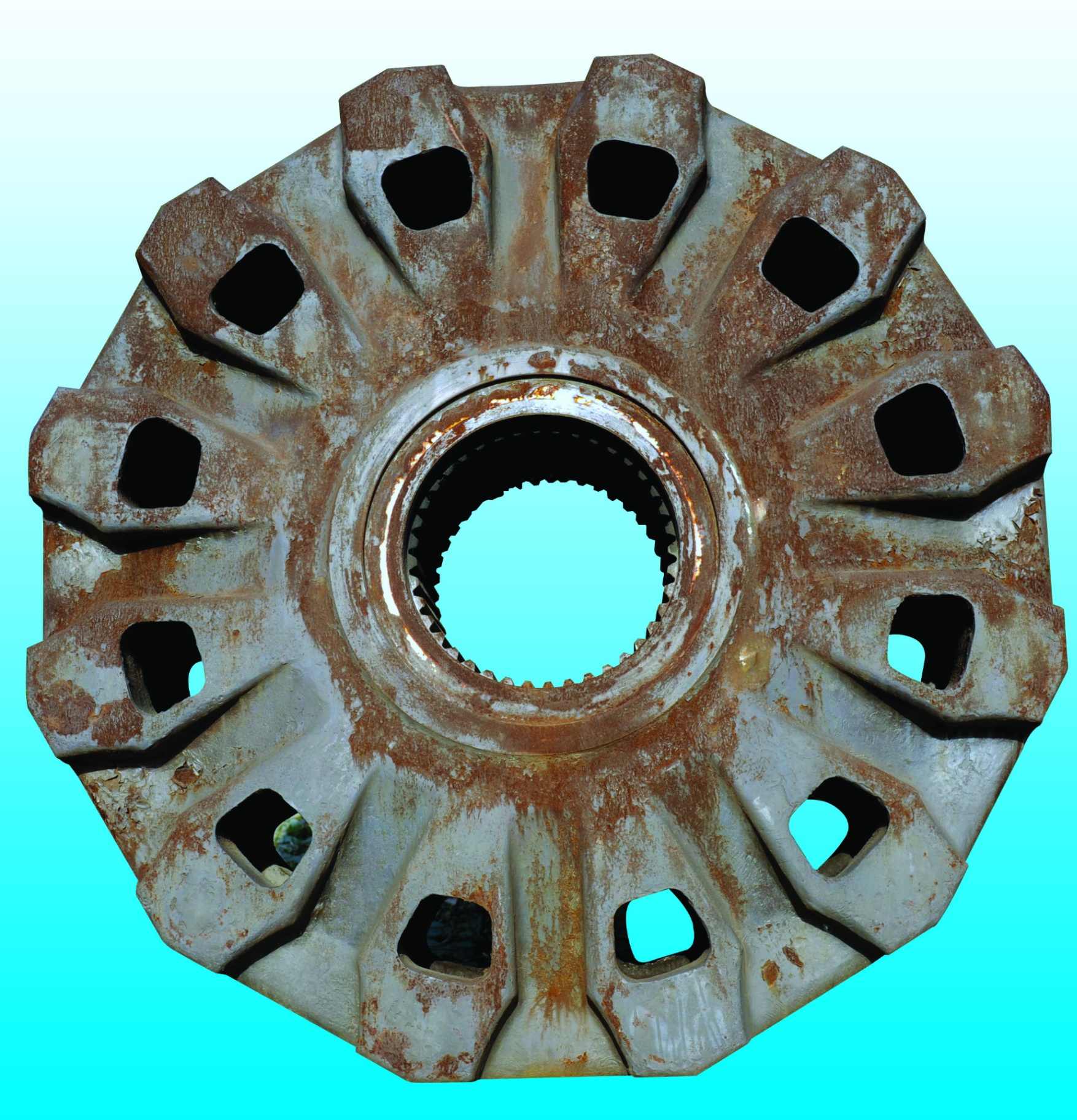

Electric Shovel Drive Wheel
Large cast drive wheel for mining electric shovels, featuring internal splined hub and reinforced spoke structure.
Electric Shovel Assemblies

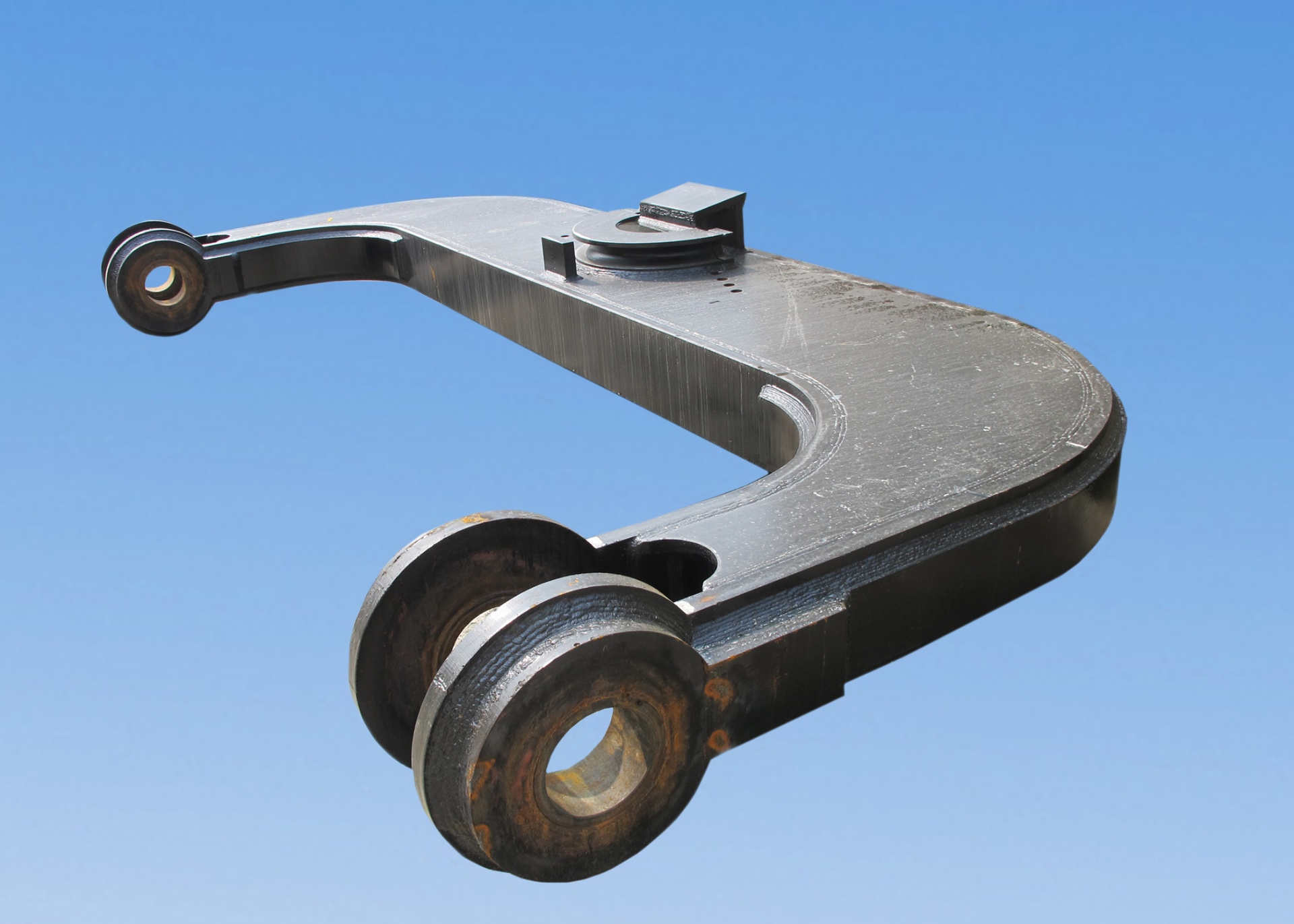

Electric Shovel Lifting Beam
Forged and machined lifting beam (equalizer) for electric shovels, with precision-bored pin bosses for hoist rope sheaves.
Mining Support Equipment

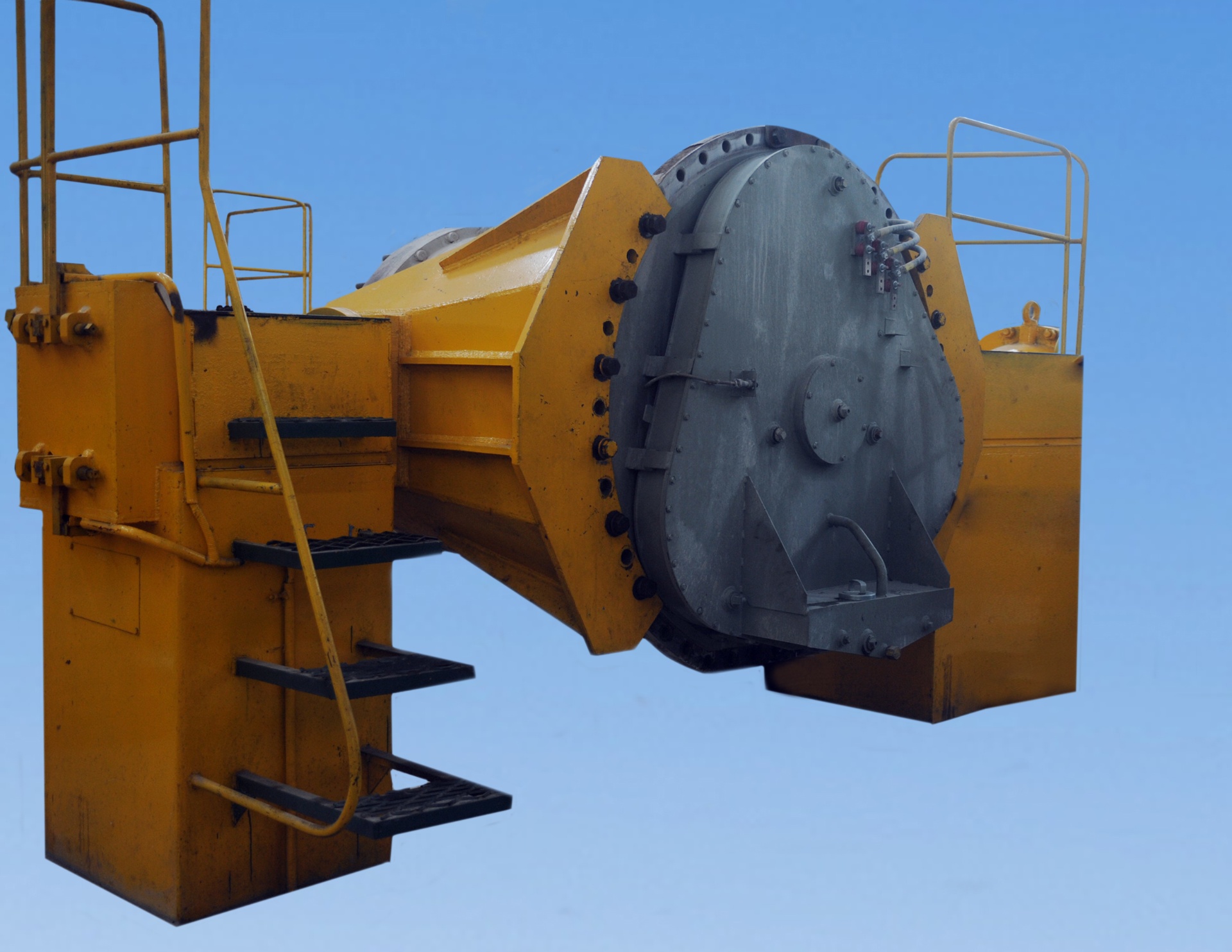

Electric Wheel Tractor Frame Repair Rig
Purpose-built fixture for rotating and repairing haul-truck electric wheel main frames during overhaul.
Crusher Wear Parts

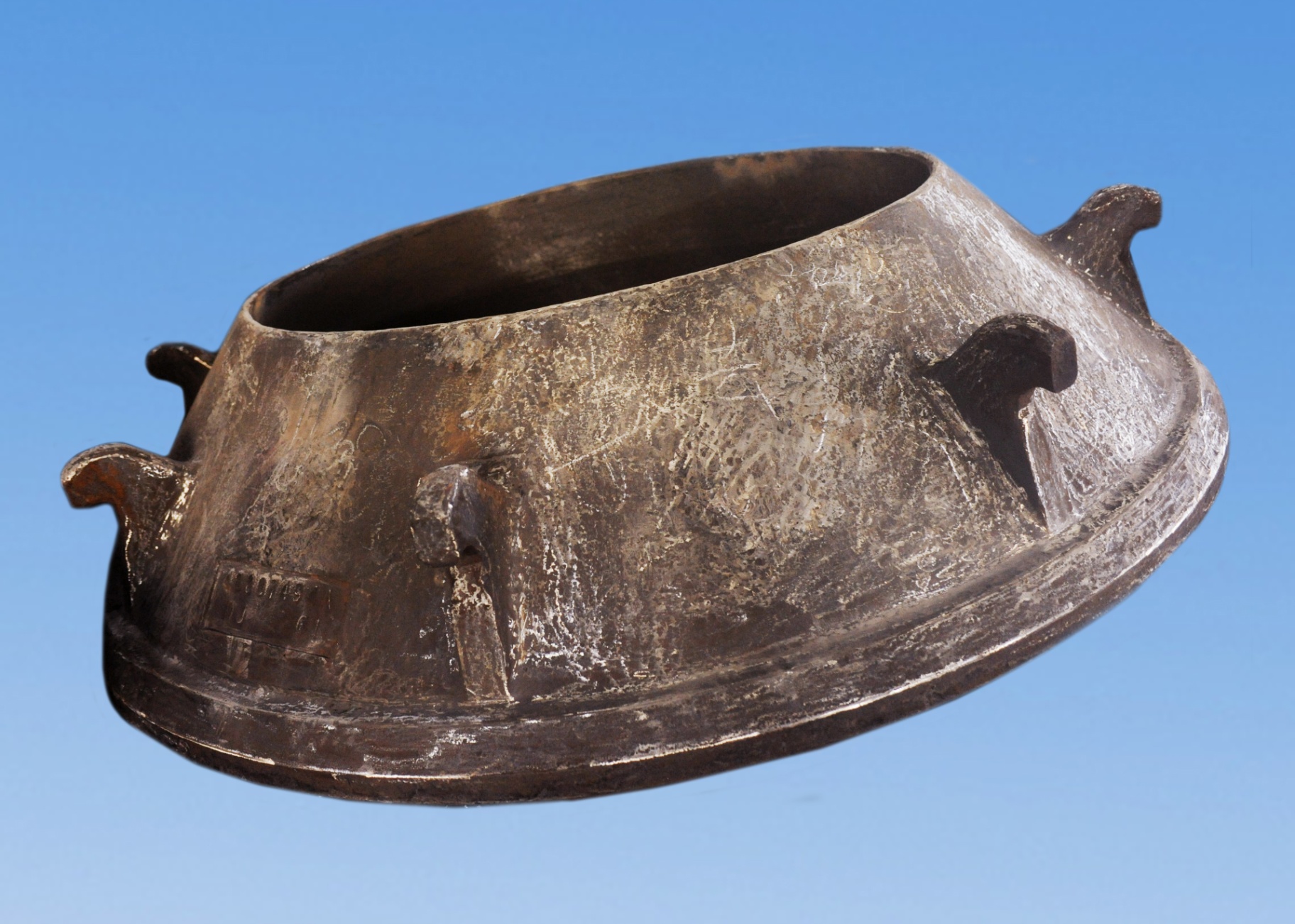

7" Cone Crusher Liner
High-strength cone liner casting for crushing duty, shown from the outer locking profile and support lugs.
Crusher Wear Parts
7" Cone Bowl Liner
Precision-machined inner working face for stable fitment, wear resistance and long service life in cone crushers.
Excavation Components
14 m³ Electric Shovel Tooth
Heavy-duty cast tooth designed for electric shovel buckets in high-impact loading and abrasive ore conditions.
Mining Support Equipment
EH3500 Fault Tractor — Front View
Large mine-site emergency towing tractor built for recovery and support operations on ultra-class haul roads.
Mining Support Equipment
EH3500 Fault Tractor — Rear Platform
Rear service platform and heavy-duty chassis layout showing the working structure of the mine rescue tractor.
Mining Support Equipment
EH3500 Fault Tractor — Side Profile
Full side elevation of the mine recovery vehicle with operator cab, towing structure and large off-road wheelset.
Haul Truck Structures
730E Electric Wheel Truck Body
Reinforced dump body structure for 180-ton class haul trucks, engineered for long-cycle open-pit service.
Haul Truck Structures
730E Truck Body — Side Structure
Side view highlighting the ribbed plate reinforcement, wear zones and structural geometry of the truck body.
Electric Shovel Assemblies
2300XP Dipper Handle
Fabricated dipper handle assembly for electric shovels, with wear rails and heavy pin connection for field duty.
Wear Parts
Wear Plate Set
Machined wear plates for mining equipment, produced for repeatable fit, durability and maintenance efficiency.
Mining Support Equipment
Heavy-Duty Tow Bracket Casting
Twin cast tow brackets with reinforced clevis ends, finished in protective coating for haul-road recovery duty.
Crusher Wear Parts
Cone Crusher Mantle Cover
Large conical wear cover for cone crusher head assemblies, cast in high-manganese steel for impact resistance.
Conveyor Equipment
JDJ-1200 Belt Take-Up Winch
Heavy-duty belt take-up and pay-out winch unit, fully fabricated and assembled by Dexing Foundry.
Conveyor Equipment
JDJ-1800 Belt Take-Up Winch
Larger 1800-class belt winch with planetary drive, motor and access stair — built for long overland conveyors.
Crusher Wear Parts
MP800 Cone Liner Segment
Segment of MP800 cone crusher mantle/concave liner, painted blue for shipment — ready for site installation.
Crusher Wear Parts
MP800 Cone Bowl Liner
Machined MP800 cone bowl liner with finished sealing faces and locking ring profile, cast in wear-resistant steel.
Mill Liners
SAG Mill Lifter Bars
Row of cast lifter bars for SAG mill shell, identified with cast-in part numbers for traceable installation.
Mill Liners
Ball Mill Shell Liners
Stacked ball mill shell plates with double-wave profile in ZGMn13Cr2 manganese steel, ready for shipment.
Mill Liners
SAG Mill Discharge Grates
Discharge end grate plates with chevron lifter ribs, designed for high-throughput SAG and AG mill duty.
Mill Liners
Corrugated Mill Shell Liner
Heavy corrugated shell liner casting providing aggressive lift and long wear life in primary grinding mills.
Large Cast Components
Large Cone Section Casting
Heavy conical shell section for crusher or mill assemblies, fabricated for high-impact mining duty and large-tonnage service.
Mining Support Equipment
R-190 Water Spray Truck
Converted ultra-class mine water truck for haul-road dust suppression, built on a heavy off-highway truck platform.
Electric Shovel Assemblies
WK-35 Electric Shovel — Field Installation
Working WK-35 electric shovel shown on site, highlighting the full machine and installed bucket assembly in service.
Electric Shovel Assemblies
WK-35 Bucket — Front Quarter View
Heavy-duty shovel bucket with tooth system and reinforced sidewalls, photographed in the mine after installation.
Electric Shovel Assemblies
WK-35 Bucket — Side Profile
Side profile of the WK-35 bucket showing plate thickness, wear blocks and structural reinforcement for rock loading.
Electric Shovel Assemblies
WK-35 Bucket — Rear Structure
Rear structure and hinge connection of the shovel bucket, detailing the back plate and heavy pin arrangement.
Electric Shovel Assemblies
WK-35 Bucket — Open Mouth View
Front opening of the bucket showing the internal rib structure, tooth line and wide loading mouth.
Electric Shovel Assemblies
WK-35 Electric Shovel — Rear View
Rear and side view of the field-operated WK-35 electric shovel, emphasizing crawler undercarriage and machine scale.
Mill Liners
SAG Mill Lifter — Single Piece
Single semi-autogenous mill lifter with machined bolt holes and high-section lifting face for aggressive media movement.
Mill Liners
SAG Mill Lifters — Paired Set
Matched pair of SAG mill lifters prepared for shell installation, showing bolt-hole pattern and wear profile geometry.
Mining Equipment Parts
紧固件 / Heavy-Duty Fasteners
高强度螺栓、双头螺柱与U型螺栓套件，用于磨机衬板、破碎机及大型矿山设备的关键紧固连接。
Mining Equipment Parts
皮带托辊 / Belt Conveyor Idler Rollers
精密加工的输送带托辊，密封轴承结构，适配长距离矿用皮带机，运行平稳、耐磨寿命长。
Mining Equipment Parts
牙轮钻钻杆 / Rotary Blasthole Drill Rod
牙轮钻机配套钻杆，采用合金钢锻造与螺纹热处理工艺，承受高扭矩与轴向冲击载荷。
Mining Equipment Parts
电机车齿轮 / Mine Locomotive Gear
矿用电机车传动齿轮，渗碳淬火、磨齿加工，齿面精度高，传动平稳、承载能力强。
Mining Equipment Parts
电铲引导轮 / Electric Shovel Idler Wheel
电铲履带引导轮，高强度铸钢一体成型，配铜套轴承，耐冲击、耐磨损，延长行走部件寿命。
Mining Equipment Parts
电铲护柄套 / Electric Shovel Handle Guard
电铲斗柄护套总成，焊接式耐磨钢板结构，保护斗柄主体免受矿石冲击磨损，可现场更换。
Services
采矿设备维修维保 / Mining Equipment Maintenance & Service
驻矿团队为电铲、牙轮钻、矿用卡车等大型采矿设备提供检修、大修与备件更换服务，保障设备高利用率。
Services
选矿设备维修维保 / Mineral Processing Equipment Maintenance
球磨机、半自磨机、破碎机、浮选机等选矿设备的衬板更换、检修与现场维保，全流程作业管理与安全保障。
Services
现场测绘优化改进产品 / On-Site Survey & Product Optimization
工程师赴矿山现场测绘易损件，结合工况数据进行结构与材质优化改进，提升备件寿命与使用经济性。
运行业绩
以年计、而非以小时计的运行业绩。
客户现场磨机衬板使用业绩节选。
| 磨机 | 矿点 | 材质 | 使用寿命 |
|---|---|---|---|
| Φ3.2×4.5M Ball Mill | Dexing Copper | ZGMn13Cr2 | 10–12 months |
| Φ5.5×8.5M Overflow Mill | Dexing Dashan | ZGMn13Cr2 | 10–13 months |
| Φ7.32×10.68M Mill | Dexing Dashan | ZGMn13Cr2 | 13 months |
| Φ5.03×8.3M Mill | Guixi Smelter | ZGMn13Cr2 | 12 months |
| Φ3.2×4.5M Ball Mill | Chengmenshan Copper | ZGMn13Cr2 | 14–15 months |
| Φ5.03×6.4M Mill | Zijin Copper | ZGMn13Cr2 | 9 months (1.31M t ore) |
| Φ10.37×5.19M SAG Mill | Dexing Dashan | 70Cr3NiMo Alloy | 4 months |
| 7-ft Cone Crusher Liner | Dexing Dashan | Mn-Steel | 800+ hours |
